3
Single IGBTMOD™
U-Series Module
600 Amperes/600 Volts
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

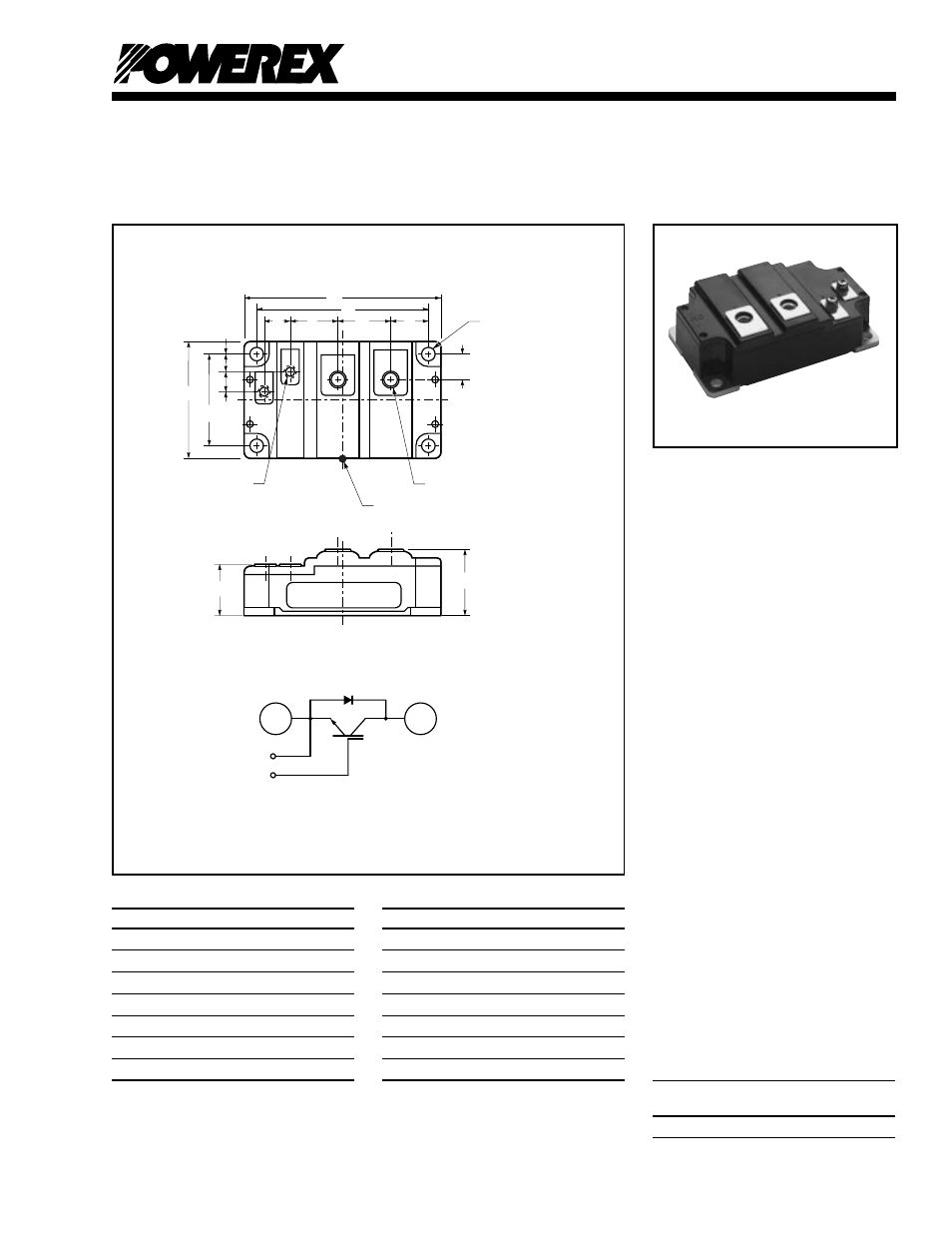

Outline Drawing and Circuit Diagram
3
Dimensions Inches Millimeters
A 4.21 107.0
B 3.66
±
0.01 93.0
±
0.25
C 2.44 62.0
D 1.89
±
0.01 48.0
±
0.25
E 0.53 13.5
F 0.49 12.55
G 0.39 10.0
Dimensions Inches Millimeters
H 1.02 26.0
J 0.37 9.5
K 1.14 29.0
L 0.81 20.5
M 0.26 Dia. 6.5 Dia.
N 1.34 +0.04/-0.02 34 +1.0/-0.5
P 1.02 +0.04/-0.02 26 +1.0/-0.5
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of one IGBT Transistor in a single
configuration with a reverse-con-
nected super-fast recovery free-
wheel diode. All components and
interconnects are isolated from the
heat sinking baseplate, offering
simplified system assembly and
thermal management.
Features:
□
Low Drive Power
□ Low V
CE(sat)
□
Discrete Super-Fast Recovery
Free-Wheel Diode
□ Isolated Baseplate for Easy
Heat Sinking
Applications:
□
AC Motor Control
□
Motion/Servo Control
□ UPS
□
Welding Power Supplies
□
Laser Power Supplies
Ordering Information:
Example: Select the complete
module number you desire from
the table - i.e. CM600HU-12H is a
600V (V
CES
), 600 Ampere Single
IGBTMOD™ Power Module.
Current Rating V
CES
Type Amperes Volts (x 50)
CM 600 12
CM
E
E
G
C
A
H E
F
M 4 - Mounting
Holes K
D
2 - M4 NUTS 2 - M8 NUTS
T
C
Measured Point
J
G
C
L
B
P
N
E
E
G
C
CM600HU-12H
