Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
POW-R-BLOK
TM
www.pwrx.com
Single Diode Isolated Module
600 Amperes / Up to 2600 Volts
Revision Date: 09/08/2010
LS41__60
CONNECTION DIAGRAM
CONNECTION DIAGRAM
Ordering Information
:
Select the complete eight-digit
module part number from the table
below.
Example: LS412660 is a 2600V,
600 Ampere Single Diode Isolated
POW-R-BLOK
TM
Module.
Type
Voltage
Volts
(x100)
Current
Amperes
(x10)
LS41 08
10
12 Thru 26
60
LS41__60
Single Diode
POW-R-BLOK
TM
Module
600 Amperes / 800-2600 Volts

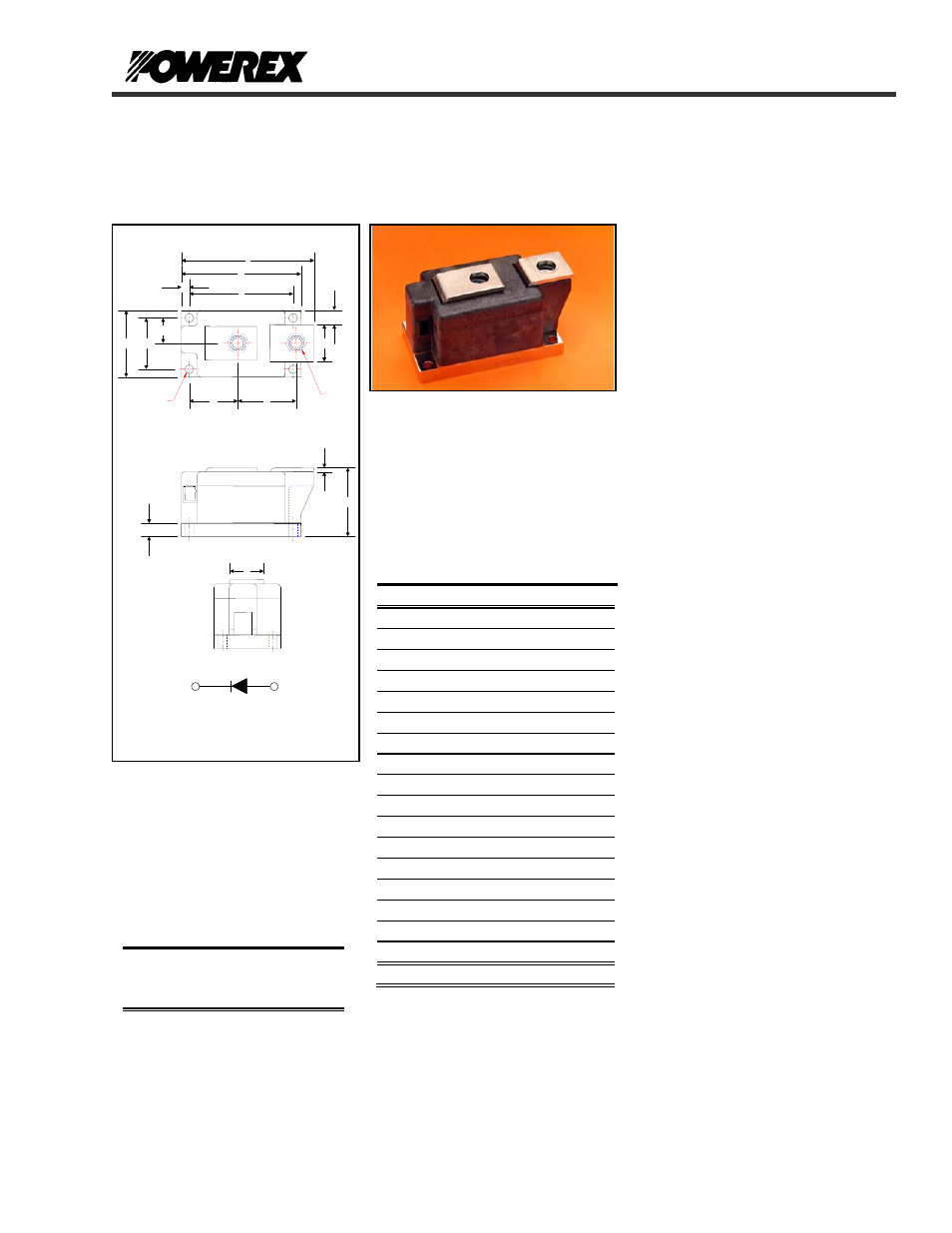

LS41 Outline Dimensions
Dimension
Inches Millimeters
A 3.15 80.0
B 1.50 38.0
C 2.05 52.1
D 3.62 92.0
E 1.97 50.0
F 0.39 9.9
G 0.24 6.1
H 0.75 19.0
J 0.99 25.1
K 0.48 12.2
L 0.12 3.1
M 1.45 36.8
N 1.76 44.7
P M10
Metric M10
Q
0.250 Dia.
6.35 Dia.
R 0.99 25.1
T 3.99 101.3
Note: Dimensions are for reference only.
Description:
Powerex Single Diode Modules are
designed for use in applications
requiring rectification and isolated
packaging. The modules are isolated
for easy mounting with other
components on a common heatsink.
POW-R-BLOK
TM
has been tested and
recognized by the Underwriters
Laboratories.
Features:
Electrically Isolated Heatsinking
Aluminum Nitride Isolator
Compression Bonded Elements
Metal Baseplate
Low Thermal Impedance
for Improved Current Capability
UL Recognized
Benefits:
No Additional Insulation
Components Required
Easy Installation
No Clamping Components
Required
Reduce Engineering Time
Applications:
Bridge Circuits
AC & DC Motor Drives
Battery Supplies
Power Supplies
Large IGBT Circuit Front Ends
CONNECTION DIAGRAM
A
K
A
B
M
N
H
D
G
E
J
K
C
L
F
R
"Q"
"P"
OUTLINE DRAWING
K
A
T
