Single IGBTMOD™
A-Series Module
600 Amperes/1200 Volts
CM600HB-24A
1
01/10 Rev. 1
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com

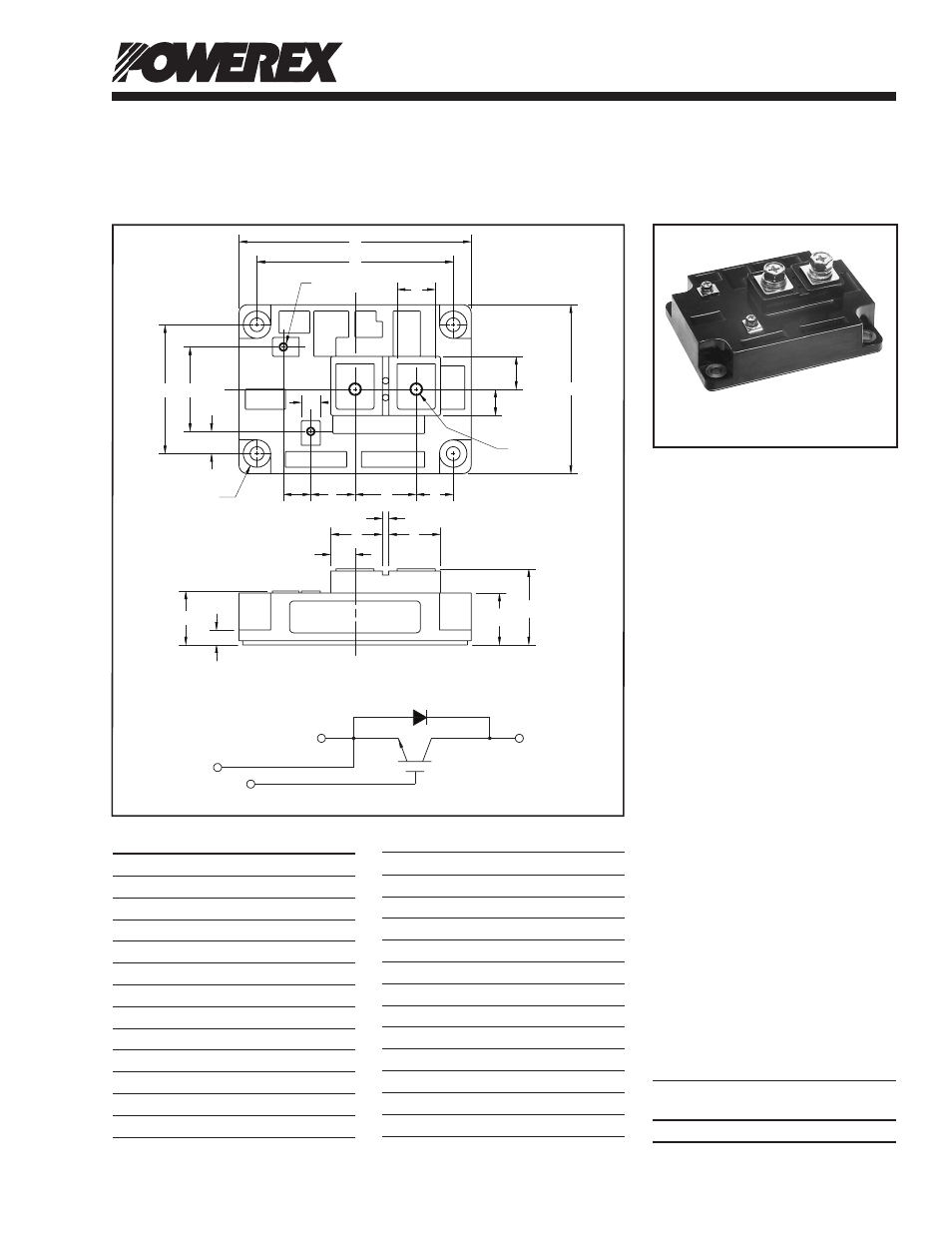

Outline Drawing and Circuit Diagram
Dimensions
Inches
Millimeters
A
4.33
110.0
B
3.15
80.0
C
3.66±0.008
93.0±0.25
D
2.44±0.008
62.0±0.25
E
1.57
40.0
F
1.42 Max.
36.0 Max.
G
1.14
29.0
H
1.00 Max.
25.5 Max
J
0.94
24.5
K
0.94
24.5
L
0.83
21.0
M
0.71
18.0
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module
consists of one IGBT Transis-
tor in a single configuration with
a reverse connected super-fast
recovery free-wheel diode. All
components and interconnects
are isolated from the heat sinking
baseplate, offering simplified
system assembly and thermal
management.
Features:
£
Low Drive Power
£
Low VCE(sat)
£ Discrete Super-Fast Recovery
Free-Wheel Diode
£
Isolated Baseplate for Easy
Heat Sinking
Applications:
£
DC Chopper
£ Inverter
£
UPS
£
Forklift
Ordering Information:
Example: Select the complete
part module number you
desire from the table below
-i.e. CM600HB-24A is a 1200V
(VCES), 600 Ampere Single
IGBTMOD™ Power Module.
Type
Current Rating
VCES
Amperes
Volts (x 50)
CM
600
24
Dimensions
Inches
Millimeters
N
0.69
17.5
P
0.61
15.5
Q
0.51
13.0
R
0.49
12.5
S
0.45
11.5
T
0.43
11.0
U
0.35
9.0
V
M8 Metric
M8
W
0.28
7.0
X
0.256 Dia.
6.50 Dia.
Y
M4 Metric
M4
Z
0.12
3.04
W
H
K
F
S
J
J
Z
E
C
E
G
U
M
C
A
R
P
B
T
E
D
Q
L
G
N
Y - THD (2 TYP.)
V - THD
(2 TYP.)
X - DIA.
(4 TYP.)
E
E
C
G
