Page 2
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Intellimod™ Module
Half Phase
IGBT Inverter Output
400 Amperes/1200 Volts
PM400HSA120

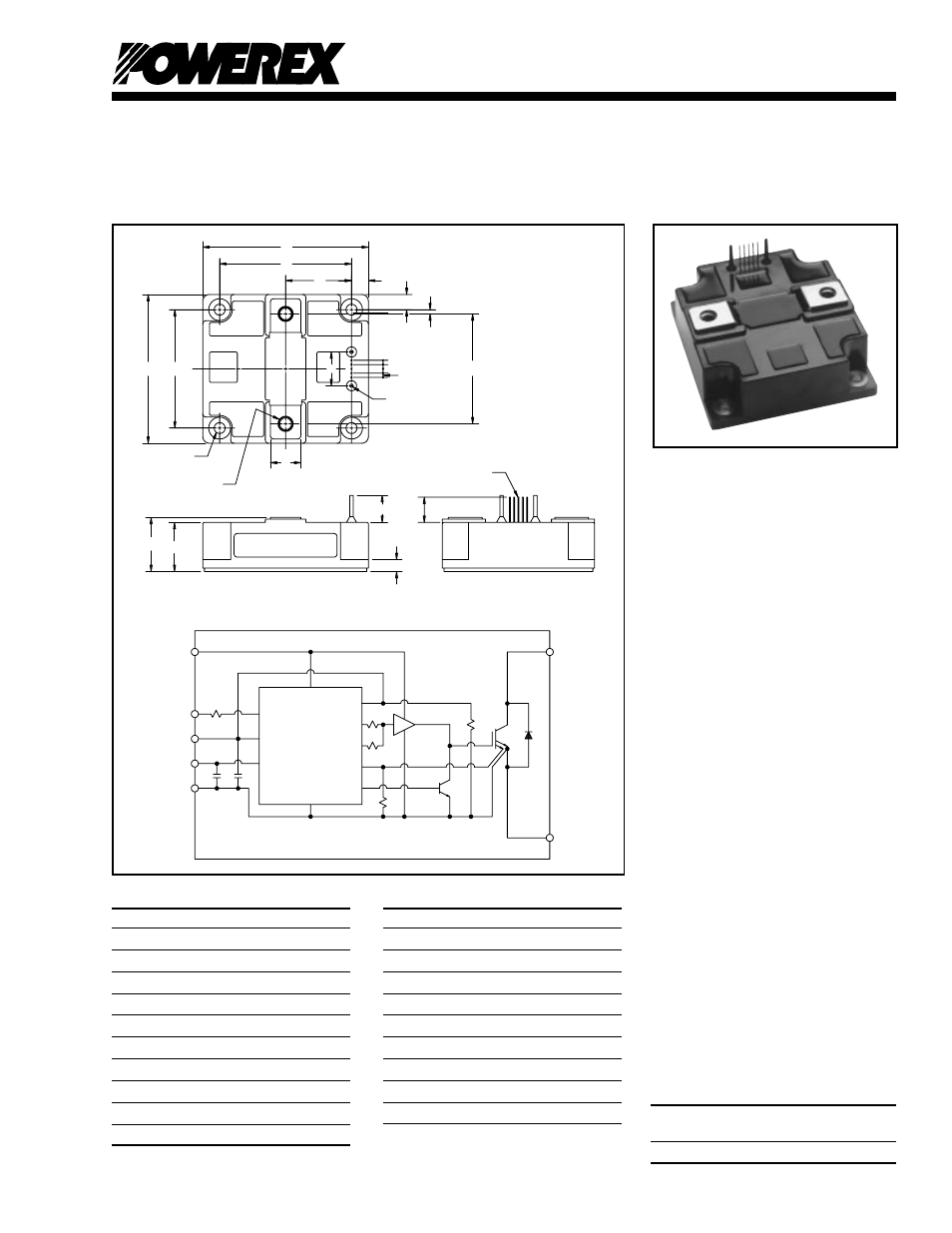

Outline Drawing and Circuit Diagram
679
Description:
Powerex Intellimod™ Intelligent
Power Modules are isolated base
modules designed for power
switching applications operating
at frequencies to 20kHz. Built-in
control circuits provide optimum
gate drive and protection for the
IGBT and free-wheel diode
power devices.
Features:
□
Complete Output Power
Circuit
□
Gate Drive Circuit
□
Protection Logic
– Short Circuit
– Over Current
– Over Temperature
– Under Voltage
Applications:
□
Inverters
□
UPS
□
Motion/Servo Control
□
Power Supplies
Ordering Information:
Example: Select the complete
part number from the table below
-i.e. PM400HSA120 is a 1200V,
400 Ampere Intellimod™ Intelligent
Power Module.
Type
Current Rating
V
CES
Amperes
Volts (x 10)
PM
400
120
Dimensions
Inches
Millimeters
A
3.86
98.0
B
3.46
88.0
C
3.15
±
0.01
80.0
±
0.25
D
2.76
±
0.01
70.0
±
0.25
E
2.56
65.0
F
1.57
40.0
G
1.34 +0.04/-0.02 34.0 +1.0/-0.5
H
1.16
29.5
J
0.79
20.0
K
0.71
18.0
Dimensions
Inches
Millimeters
L
0.63
16.0
M
0.59
15.0
N
0.35
9.0
P
Metric M8
M8
Q
0.28
7.0
R
0.26 Dia.
Dia. 6.5
S
0.10
2.5
T
0.100
2.54
U
0.08 Dia.
2.0 Dia.
Q
H
G
L
1.
2.
3.
4.
5.
V1
SR
C1
VC
FO
SINK
SENS
OUT2
OUT1
GND
TEMP
VCC
FO
SR
IN
E
C
V1
FO
SR
C1
VC
M
0.64 MM SQ. PIN
(5 TYP.)
N
D
A
B
F
N
C
K
J
S
E
P - THD.
(2 TYP.)
(4 TYP.)
R - DIA.
U - DIA.
(2 TYP.)
T - (4 TYP.)
E
C
12
3
4
5
