OV Series Adjustable
www.vishay.com
Vishay Milwaukee
Revision: 18-Dec-12
2
Document Number: 31836
For technical questions, contact:
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000

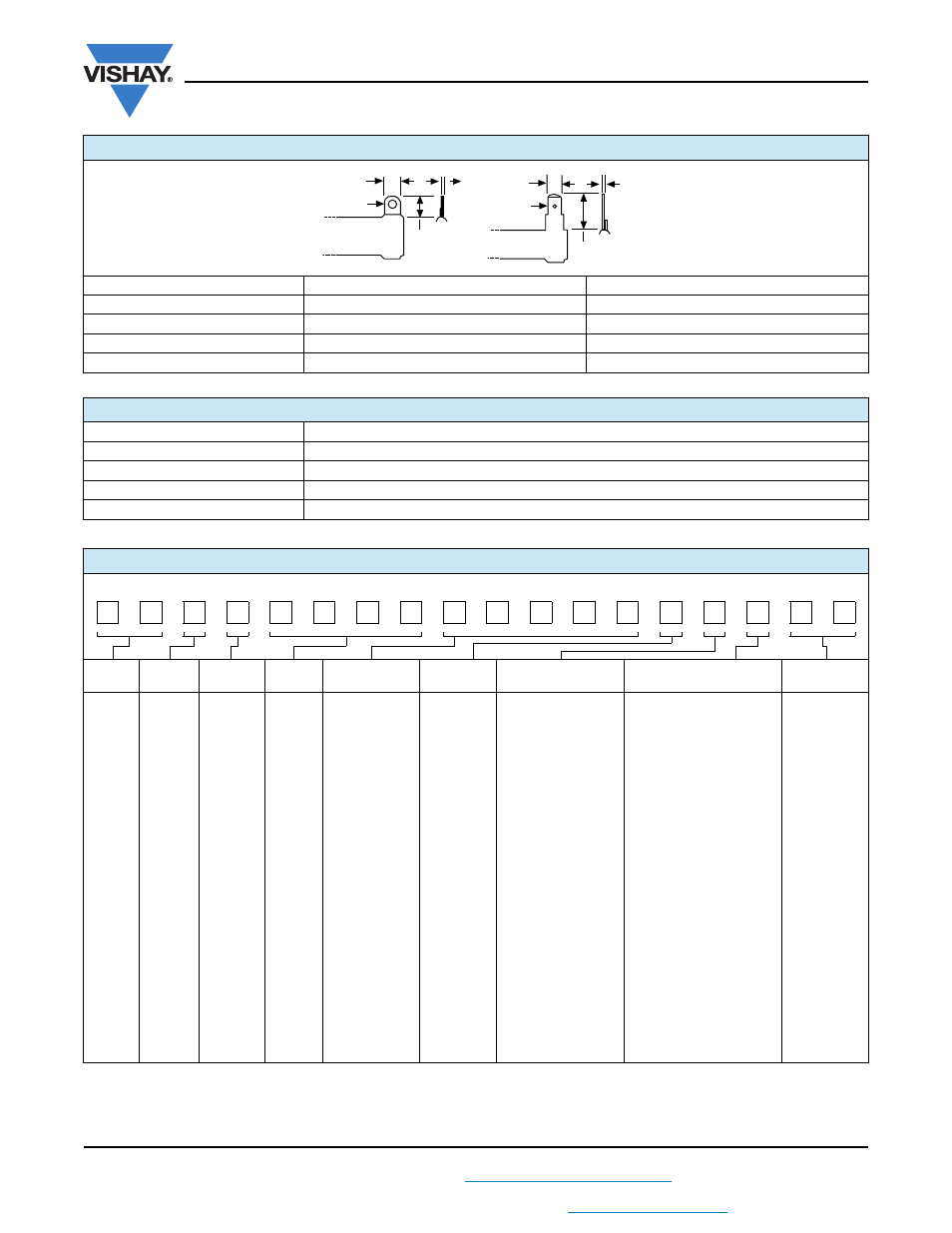

TERMINAL STYLE in inches (millimeters)
DIMENSIONS
A (3/16" LUG)
H (1/4" SQC)
Width (A)
0.1875 (4.7625)
0.25 (6.35)
Height (B)
0.375 (9.525)
0.625 (15.875)
Dia. (C)
0.13 (3.302)
0.065 (1.651)
Thickness (D)
0.02 (0.508)
0.032 (0.8128)
MATERIAL SPECIFICATIONS
Element
Copper-nickel, nickel-chrome, iron-chrome-aluminum
Core
Steatite
Coating
High temperature silicone
Standard terminals
Nickel-iron
Part marking
Value, date code, MRC
GLOBAL PART NUMBER INFORMATION
Global Part Numbering example: OVSA0070137K0JHB00 (OVSA0070 137K 5 % 1/4SQC B)
O
V
S
A
0
0
7
0
1
3
7
K
0
J
H
B
0
0
MODEL
(2 digits)
COATING
(1 digit)
TYPE
(1 digit)
SIZE
(4 digits)
VALUE
(5 digits)
TOLERANCE
(1 digit)
TERMINAL
(1 digit)
PACKAGING
(1 digit)
SPECIAL
(2 digits)
OV
S =
Silicone
A =
Adjustable
0030 =
30 W
0095 =
95 W
Available
sizes:
0030
0040
0055
0070
0095
R = Decimal
K = Thousand
R1500 = 0.15
1K500 = 1.5 k
Check
datasheet
for available
value range
D = ± 0.5 %
F = ± 1.0 %
G = ± 2.0 %
H = ± 3.0 %
J = ± 5.0 %
K = ± 10 %
M = ± 20 %
A = 3/16" lug (3/16L)
F = 3/8" lug (3/8L)
H = 1/4" single
quick-connect
(1/4SQC)
M = 3/8" lug
with steel
hardware
(3/8LSteel707)
N = 3/8" lug
with brass
hardware
(3/8LBrass707)
S = 3/8" lug
with steel
hardware
(3/8LSteel708)
T = 3/8" lug
with brass
hardware
(3/8LBrass708)
B = Bulk
F = 42 cell partition,
012CC box
G = 96 cell partition,
010CC or 019CC box
H = 25 cell partiton,
006CC box
J = 11 cell partition (fish),
017CC box
K = 48 cell partition,
010CC or 019CC box
L = 140 cell partition,
010CC or 019CC box
M = 144 cell partition,
006CC or 005CC box
N = Individually boxed,
bubble wrap and partitions
O = Double boxed,
bubble wrap and partitions
R = International,
heavy duty and
plastic skids
S = Individually boxed
See packaging codes
for additional options
00 =
Standard
NI =
Non-inductive
NS =
No strips
and spacers
D
Type H
B
A
C
B
D
C
A
Type A
