PART NO. GTO 4500-6.0P
ART. NO. 10726
NOMINAL RATINGS
Capacitance/Tolerance
CN 6uF
±
5%
Rated voltage UN 4500V
Rated DC voltage Udc 3300VDC
Rated RMS voltage Urms 1400VAC
Peak voltage period. Us 4500VDC
Peak voltage not period. Usmax 4900VDC
Voltage raise du/dt 1200V/us
Rated current In 160A
Peak current Is 7200A
Inductance Ls < 15nH
Loss factor diel. tan
δ
< 2.0*10^ - 4
Loss factor 50Hz tan
δ
< 2.0*10^ - 4
1kHz tan
δ
< 4.0*10^ - 4
ROUTINE TESTS
Test voltage terminal/terminal
UT/T 7300VDC, 10s
OPERATING TEMPERATURE
Minimum ambient temperature
Ta min - 25
°
C
Maximum ambient temperature Ta max 60
°
C
Minimum casing temperature Tc min - 25
°
C
Maximum casing temperature Tc max 70
°
C
STORAGE TEMPERATURE
Minimum temperature Tmin - 50
°
C
Maximum temperature Tmax + 85
°
C
TECHNOLOGY
Dielectric Polypropylene film
non self-healing
Impregnation oil, NON PCB
BUSHING
Internal thread
M8 depth 15mm
Air distance 217mm
Creepage distance 217mm
DESIGN DATA
Diameter 91mm
Height 161mm
Drawing 20-B-043
Weight 1.2kg
Casing material Lathene
Mounting every position
LIFE EXPECTANCY > 100000 Std
FAILURE RATE 300 FIT

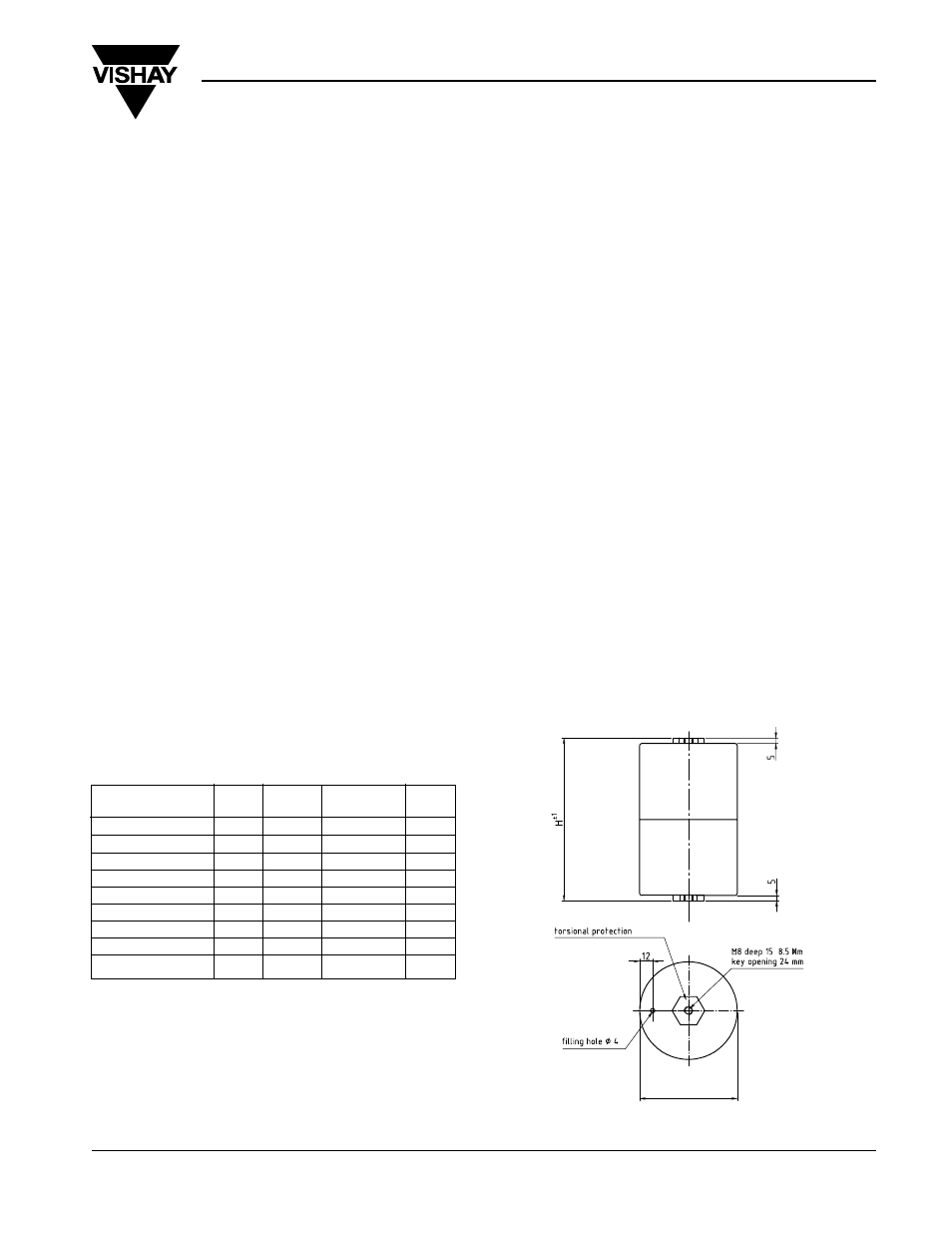

DIMENSIONS
GTO Snubber Capacitors, Oil Impregnated
The list below contains our standard program for GTO
capacitors with a rated voltage of 4500V. All parameters
not mentioned below are in accordance with this data
sheet.
• Other values upon request.
• Above capacitors types are usually available ex stock.
• All other types have to be manufactured in accordance
with specific orders, however certain minimum order
quantities may be requested depending on the
capacitor type.
• The dimensions may be changed due to technical
advances without notice.
ø 92
Type C I
s
Dimensions Weight
µ
F A Ø d x h (mm) kg
GTO 4500 - 0.25 P 0.25 300 92 x 91 0.59
GTO 4500 - 0.50 P 0.50 600 92 x 91 0.59
GTO 4500 - 1.00 P 1.00 1200 92 x 91 0.59
GTO 4500 - 2.00 P 2.00 2400 92 x 91 0.59
GTO 4500 - 3.00 P 3.00 3600 92 x 141 0.92
GTO 4500 - 4.00 P 4.00 4800 92 x 141 0.92
GTO 4500 - 5.00 P 5.00 6000 92 x 141 0.92
GTO 4500 - 6.00 P 6.00 7200 92 x 161 1.05
GTO 4500 - 7.00 P 7.00 8400 92 x 181 1.18
