Dual IGBTMOD™
U-Series Module
800 Amperes/600 Volts
CM800DU-12H
Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
1
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module con-
sists of two IGBT Transistors in a
half-bridge configuration with each
transistor having a reverse-con-
nected super-fast recovery free-
wheel
diode. All components and inter-
connects are isolated from the
heat sinking baseplate, offering
simplified system assembly and
thermal management.
Features:
£ Low Drive Power
£ Low V
CE(sat)
£ Discrete Super-Fast Recovery
Free-Wheel Diode
£ Isolated Baseplate for Easy
Heat Sinking
Applications:
£ AC Motor Control
£ Motion/Servo Control
£ UPS
£ Welding Power Supplies
£ Laser Power Supplies
Ordering Information:
Example: Select the complete
module number you desire from
the table - i.e. CM800DU-12H is a
600V (V
CES
), 800 Ampere Dual
IGBTMOD™ Power Module.
Current Rating V
CES
Type Amperes Volts (x 50)
CM 800 12

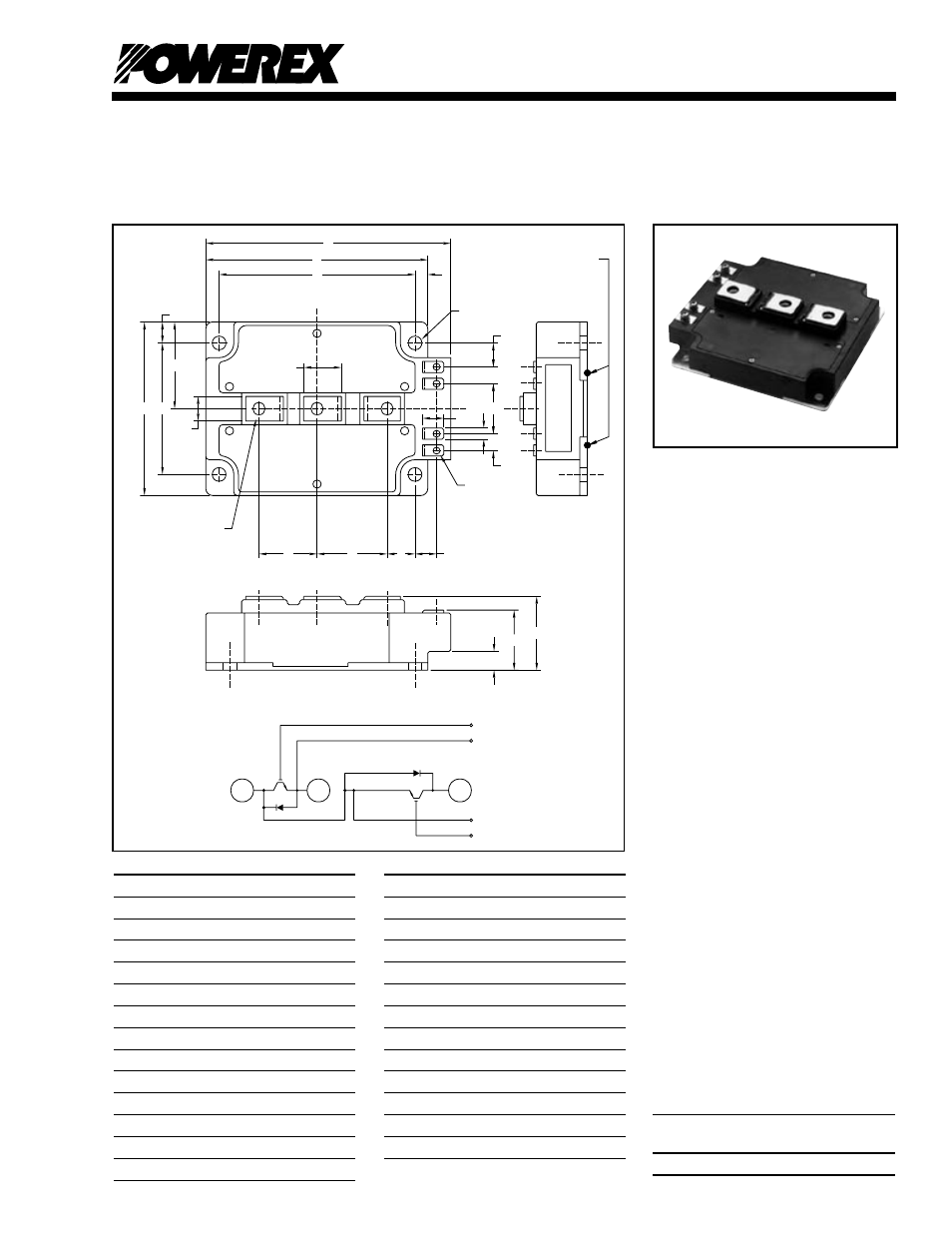

Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
A 5.51 140.0
B 5.12 130.0
C 5.12 130.0
D 1.38 35.0
E 4.33 110.0
F 4.33 110.0
G 0.39 10.0
H 0.45 11.5
J 0.54 13.8
K 1.72 43.8
L 1.42 36.0
M 0.39 10.0
N 0.80 20.4
Dimensions Inches Millimeters
P 0.57 14.5
Q 1.57 40.0
R 2.56 65.0
S M8 M8
T 0.26 Dia. 6.5 Dia.
S 0.32 8.0
V 0.97 24.5
W M4 M4
X 0.59 15.0
Y 0.35 9.0
Z 1.02 26.0
AA 0.79 20.0
T - (4 TYP.)
C2E1
E2
G1
C1
E1
E2
G2
CL
L
C
W -
(4 PLACES)
LABEL
A
F G
H J K L
M
N
P
Q
P
R
U
V
D
X
Y
Z
C2E1 E2 C1
G1
E1
E2
G2
AA
TC MEASURED POINT B
C E
S - (3 PLACES)
