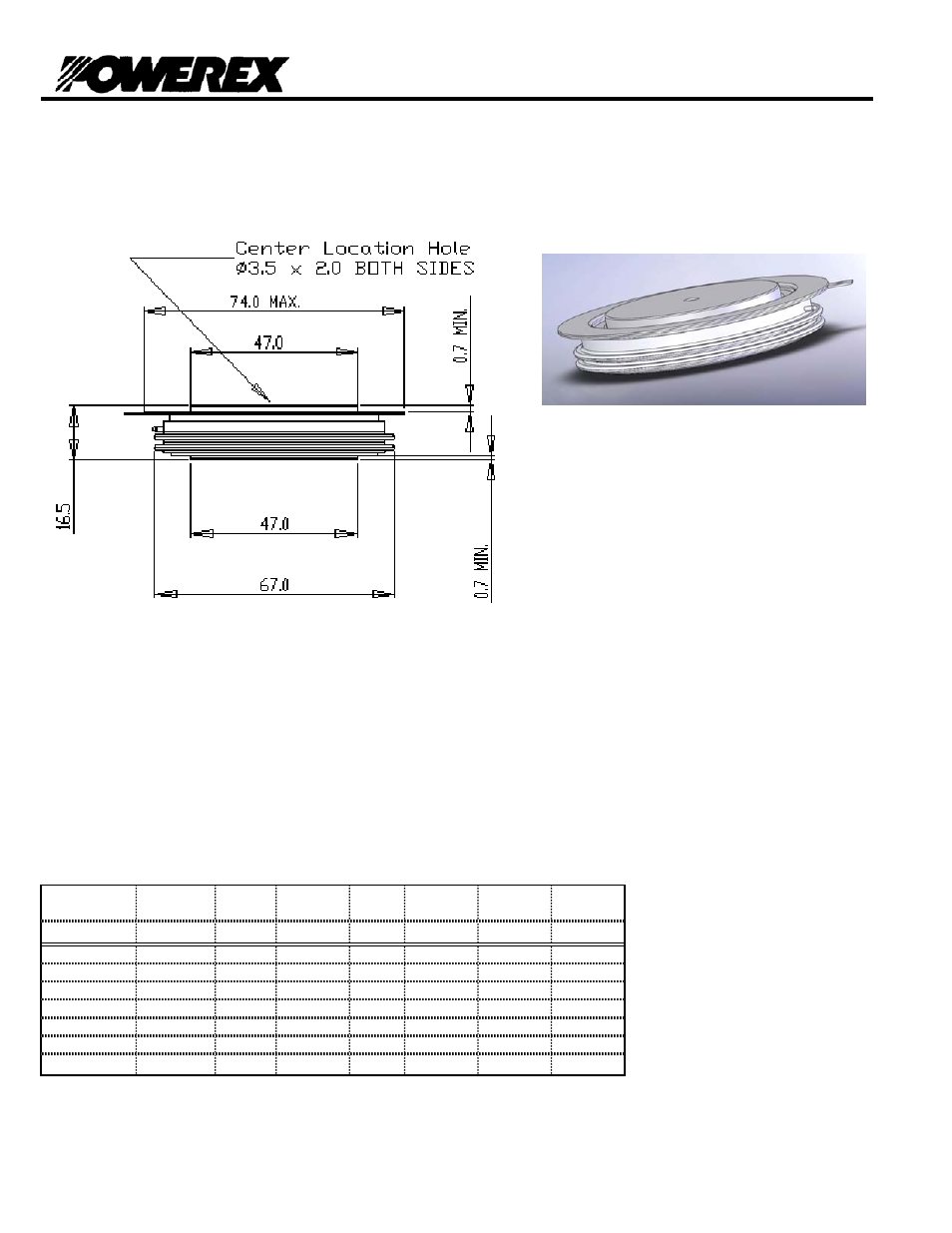

T9S0__2803
Phase Control Thyristor
Powerex, Inc., 173 Pavilion Ln, Youngwood, Pennsylvania 15697-1800 (724)925-7272 www.pwrx.com 2850 Amperes 800 Volts
FEATURES:
The T9S0 SCR employs a Center‐Fired
amplifying gate structure which allows the
SCR to be reliably operated at high di/dt and
high dv/dt conditions in phase control
applications.
FEATURES:
Low On-State Voltage
High di/dt Capability
High dv/dt Capability
Hermetic Ceramic Package
Excellent Surge and I
2 t Ratings
APPLICATIONS:
DC Power Supplies
ORDERING INFORMATION Plating Supplies
Welding Supplies
Select the complete 12 digit Part Number using the table below.
EXAMPLE: T9S0082803DH is an 800V-2850A SCR with 200ma
IGT and 12 inch gate and cathode potential leads.
PART
Voltage
Rating
Voltage
Code
Current
Rating
Current
Code Turn-Off Gate Leads
V
DRM
-V
RRM
I
tavg
Tq I
GT
T9S0 800V 08 2850A 28 0 3 DH
600V 06
400V 04 400us typ. 200ma 12"
Revised: 9/22/2009
The T9S0 SCR employs a Center‐Fired
amplifying gate structure which allows the
SCR to be reliably operated at high di/dt and
high dv/dt conditions in phase control
applications.
