ST300CLPbF Series
Vishay High Power Products Phase Control Thyristors
(Hockey PUK Version), 560 A

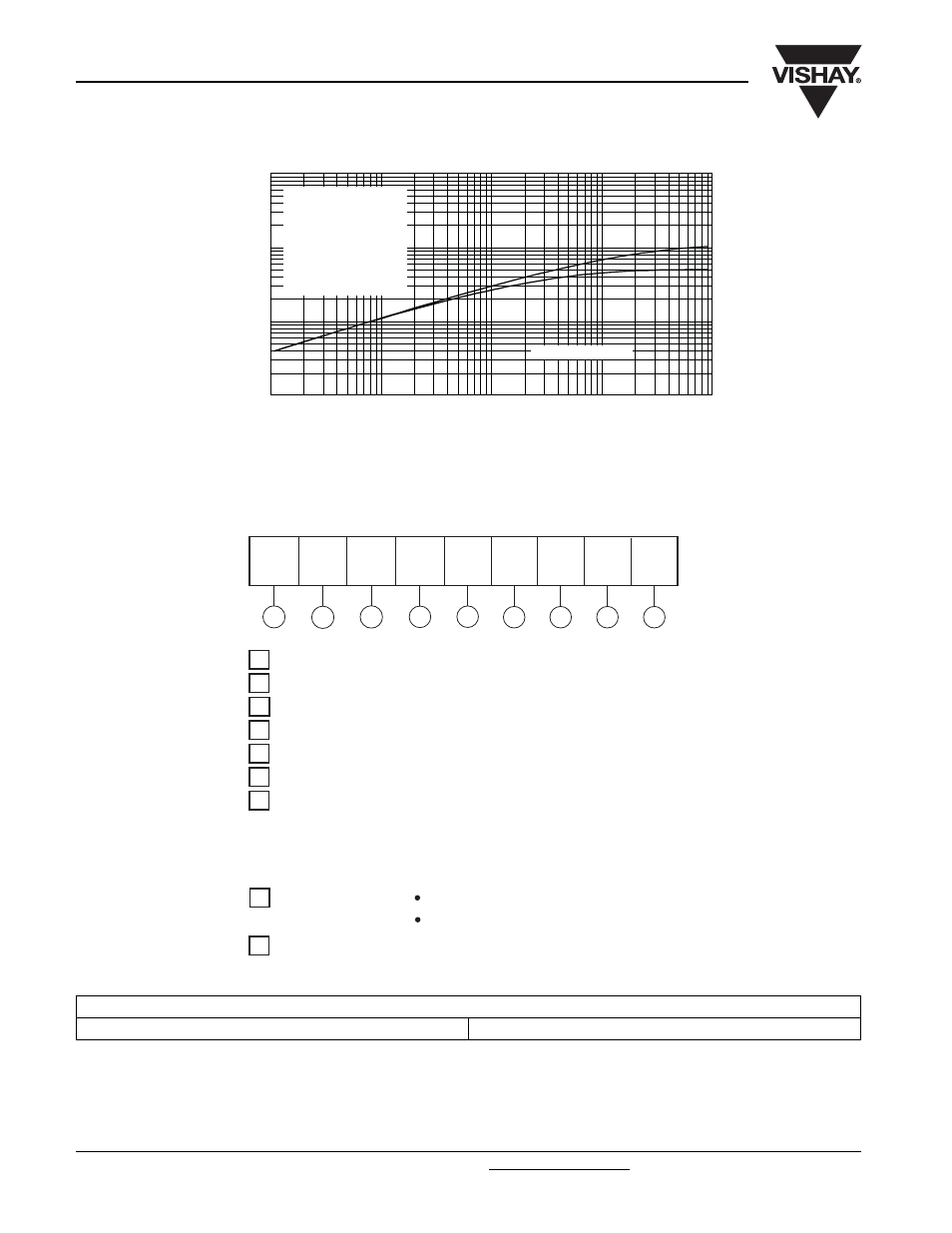

Fig. 11 - Gate Characteristics
ORDERING INFORMATION TABLE
0.001
0.01
0.1
1
0.001 0.01 0.1 1 10
Steady State Value
R = 0.11 K/W
(Single Side Cooled)
R = 0.05 K/W
(Double Side Cooled)
(DC Operation)
thJ-hs
thJ-hs
ST300C..L Series
Instantaneous Gate Current (A)
Instantaneous Gate Voltage (V)
1 - Thyristor
2 - Essential part number
3 - 0 = Converter grade
4
9 - Lead (Pb)-free
- C = Ceramic PUK
5 - Voltage code x 100 = V
RRM
(see Voltage Ratings table)
6 - L = PUK case TO-200AC (B-PUK)
7 - 0 = Eyelet terminals (gate and auxiliary cathode unsoldered leads)
1 = Fast-on terminals (gate and auxiliary cathode unsoldered leads)
2 = Eyelet terminals (gate and auxiliary cathode soldered leads)
3 = Fast-on terminals (gate and auxiliary cathode soldered leads)
8 - Critical dV/dt: None = 500 V/μs (standard selection)
L = 1000 V/μs (special selection)
Device code
5 1 3 2 4 6 7 8 9
ST 30 0 C 20 L 1 - PbF
LINKS TO RELATED DOCUMENTS
Dimensions http://www.vishay.com/doc?95076
