Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 POW-R-BLOK
TM

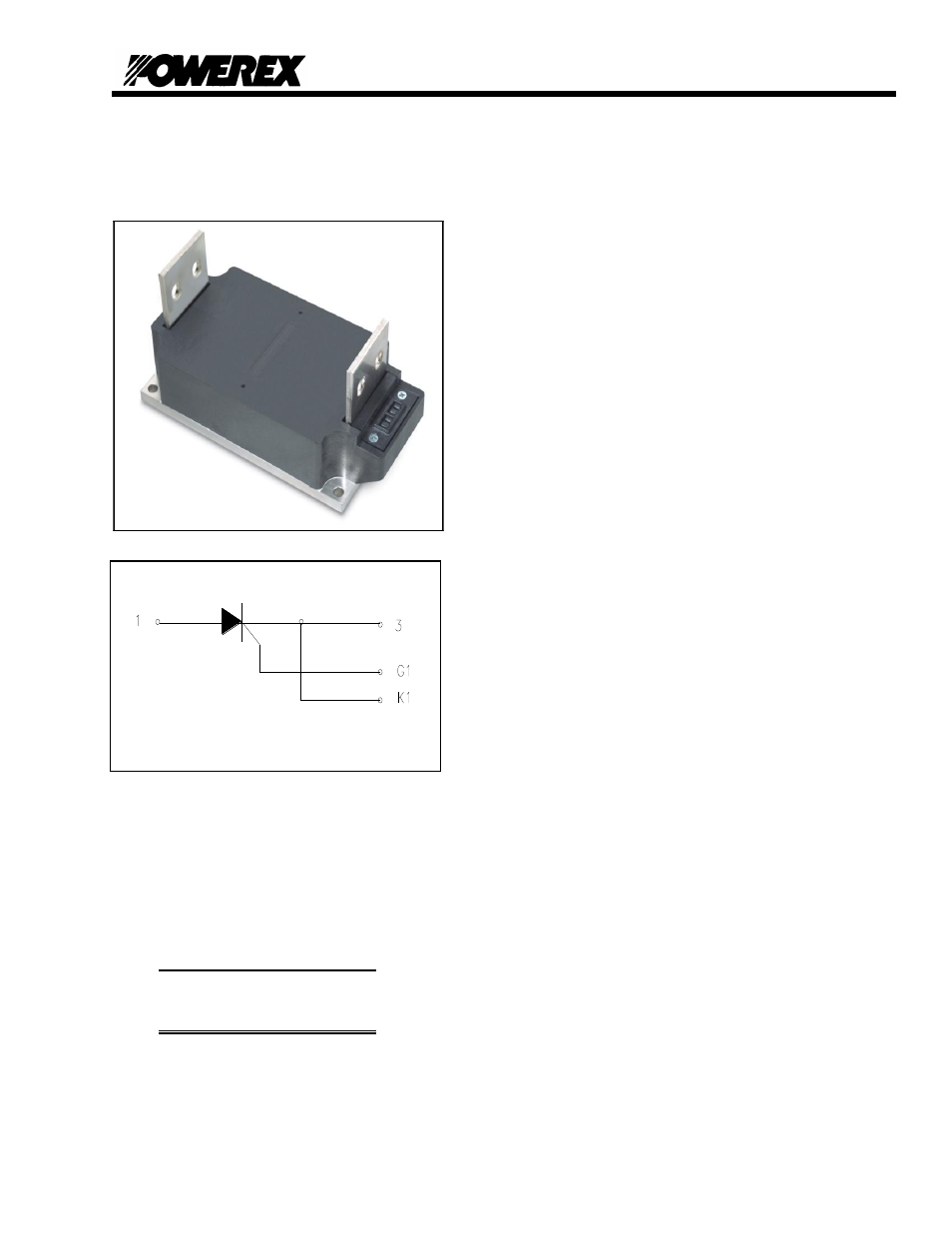

www.pwrx.com Single SCR Isolated Module
1500 Amperes / Up to 1800 Volts
Revision Date: 04/05/2011
PS43__15
Ordering Information:
Select the complete eight-digit
module part number from the table
below.
Example: PS431815 is a 1800 Volt,
1500A Average Single SCR
Isolated POW-R-BLOK
TM
Module
Type
Voltage
Volts (x100)
Current
Amperes
(x100)
PS43 12
14
16
18 15
Description:
Powerex Single SCR Modules are designed
for use in applications requiring phase
control and isolated packaging. The
modules are isolated for easy mounting with
other components on a common heatsink.
Features:
 Electrically Isolated Heatsinking
 Compression Bonded Elements
 Paralleled SCRs in Module for
Increased Capacity
 Metal Baseplate
 Low Thermal Impedance
for Improved Current Capability
Benefits:
 No Additional Insulation
Components Required
 Easy Installation
 No Clamping Components
Required
 Reduce Engineering Time
Applications:
 Bridge Circuits
 AC & DC Motor Drives
 Motor Soft Starters
 Battery Supplies
 Power Supplies
 Large IGBT Circuit Front Ends
