RB Series Fixed
www.vishay.com
Vishay Milwaukee
Revision: 10-Jan-13 2 Document Number: 31807
For technical questions, contact: [email protected]
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

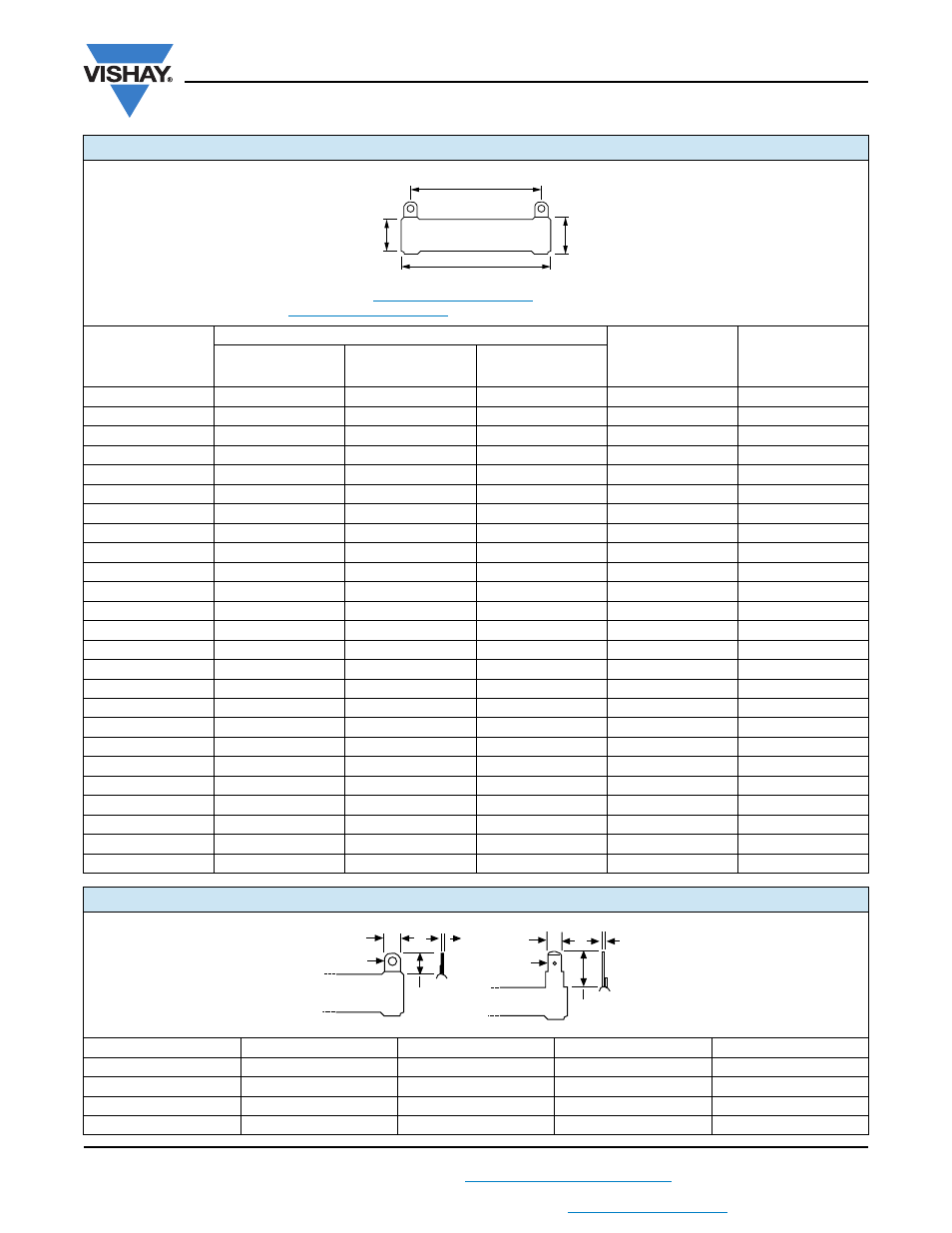

DIMENSIONS in inches (millimeters)
• For Terminal Data and Mounting Hardware, see www.vishay.com/doc?31811
• For Enclosures and Frames, see www.vishay.com/doc?31810
GLOBAL
MODEL
CORE DIMENSIONS (REF.) A
DISTANCE
BETWEEN
TERMINAL (REF.)
TERMINAL STYLE B
LENGTH
C
OUTER DIAMETER
D
INNER DIAMETER
RBEF0040 2 (50.8) 0.5625 (14.2875) 0.3125 (7.9375) 1.25 (31.75) D
RBEF0050 2 (50.8) 0.75 (19.05) 0.5 (12.7) 1.15 (29.21) F
RBEF0075 3 (76.2) 0.75 (19.05) 0.5 (12.7) 2.13 (53.975) F
RBEF0090 4 (101.6) 0.5625 (14.2875) 0.3125 (7.9375) 3.50 (88.9) D
RBEF0100 3.5 (88.9) 0.75 (19.05) 0.5 (12.7) 2.63 (66.675) F
RBEF0110 4 (101.6) 0.75 (19.05) 0.5 (12.7) 3.13 (79.375) F
RBEF0120 4.5 (114.3) 0.75 (19.05) 0.5 (12.7) 3.63 (92.075) F
RBEF0135 5 (127) 0.75 (19.05) 0.5 (12.7) 4.13 (104.775) F
RBEF0150 4 (101.6) 1.125 (28.575) 0.75 (19.05) 3.13 (79.375) F
RBEF0160 6 (152.4) 0.75 (19.05) 0.5 (12.7) 5.13 (130.175) F
RBEF0175 4.5 (114.3) 1.125 (28.575) 0.75 (19.05) 3.63 (92.075) F
RBEF0180 6.5 (165.1) 0.75 (19.05) 0.5 (12.7) 5.63 (142.875) F
RBEF0220 6 (152.4) 1.125 (28.575) 0.75 (19.05) 5.13 (130.175) F
RBEF0225 6.125 (155.575) 1.125 (28.575) 0.75 (19.05) 5.25 (133.35) F
RBEF0240 6.5 (165.1) 1.125 (28.575) 0.75 (19.05) 5.63 (142.875) F
RBEF0300 8.5 (215.9) 1.125 (28.575) 0.75 (19.05) 7.63 (193.675) F
RBEF0375 10.5 (266.7) 1.125 (28.575) 0.75 (19.05) 9.63 (244.475) F
RBEF0400 11.25 (285.75) 1.125 (28.575) 0.75 (19.05) 10.50 (266.7) F
RBEF0420 11.75 (298.45) 1.125 (28.575) 0.75 (19.05) 10.88 (276.225) F
RBEF0500 10.5 (266.7) 1.625 (41.275) 1.125 (28.575) 9.00 (228.6) G
RBEF0550 11.75 (298.45) 1.625 (41.275) 1.125 (28.575) 10.25 (260.35) G
RBSF0750 12 (304.8) 2.5 (63.5) 1.75 (44.45) 10.50 (266.7) G
RBSF1000 15 (381) 2.5 (63.5) 1.75 (44.45) 13.50 (342.9) G
RBSF1500 20 (508) 2.5 (63.5) 1.75 (44.45) 18.50 (169.9) G
RBSF2000 20 (508) 3.25 (82.55) 1.75 (44.45) 18.50 (169.9) G
TERMINAL STYLE in inches (millimeters)
DIMENSIONS D (1/4" LUG) F (3/8" LUG) G (1/2" LUG) H (1/4" SQC)
Width (A) 0.25 (6.35) 0.375 (9.525) 0.5 (12.7) 0.25 (6.35)
Height (B) 0.5 (12.7) 0.625 (15.875) 0.9375 (23.8125) 0.625 (15.875)
Dia. (C) 0.17 (4.318) 0.2 (5.08) 0.26 (6.604) 0.065 (1.651)
Thickness (D) 0.02 (0.508) 0.035 (0.889) 0.046 (1.1684) 0.032 (0.8128)
A
B
D C
D
Type H
B
A
C
B
D
C
A
Type D, F, G
