RDS8__10XX
GENERAL PURPOSE RECTIFIER DIODE
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724)925-7272 10,000 Amperes 1200 Volts
FEATURES:
Low On-State Voltage
Hermetic Ceramic Package
Excellent Surge and I
2 t Ratings
APPLICATIONS:
DC Power Supplies
ORDERING INFORMATION Input Rectifiers
Plating Supplies
Select the complete 12 digit Part Number using the table below.
EXAMPLE: RDS81210XXOO is a 1200V 10,000A General Purpose Diode
with a typical reverse recovery time of 25µs.
PART
Voltage
Rating
Voltage
Code
Current
Rating
Current
Code
Reverse
Recovery
Lead
Code
V
DRM
-V
RRM
I
tavg
t
RR
RDS8 1200V 12 10000A 10 XX OO
1000V 10
800V 80 25µs typical
600V 60
Revised: 5/01/2009

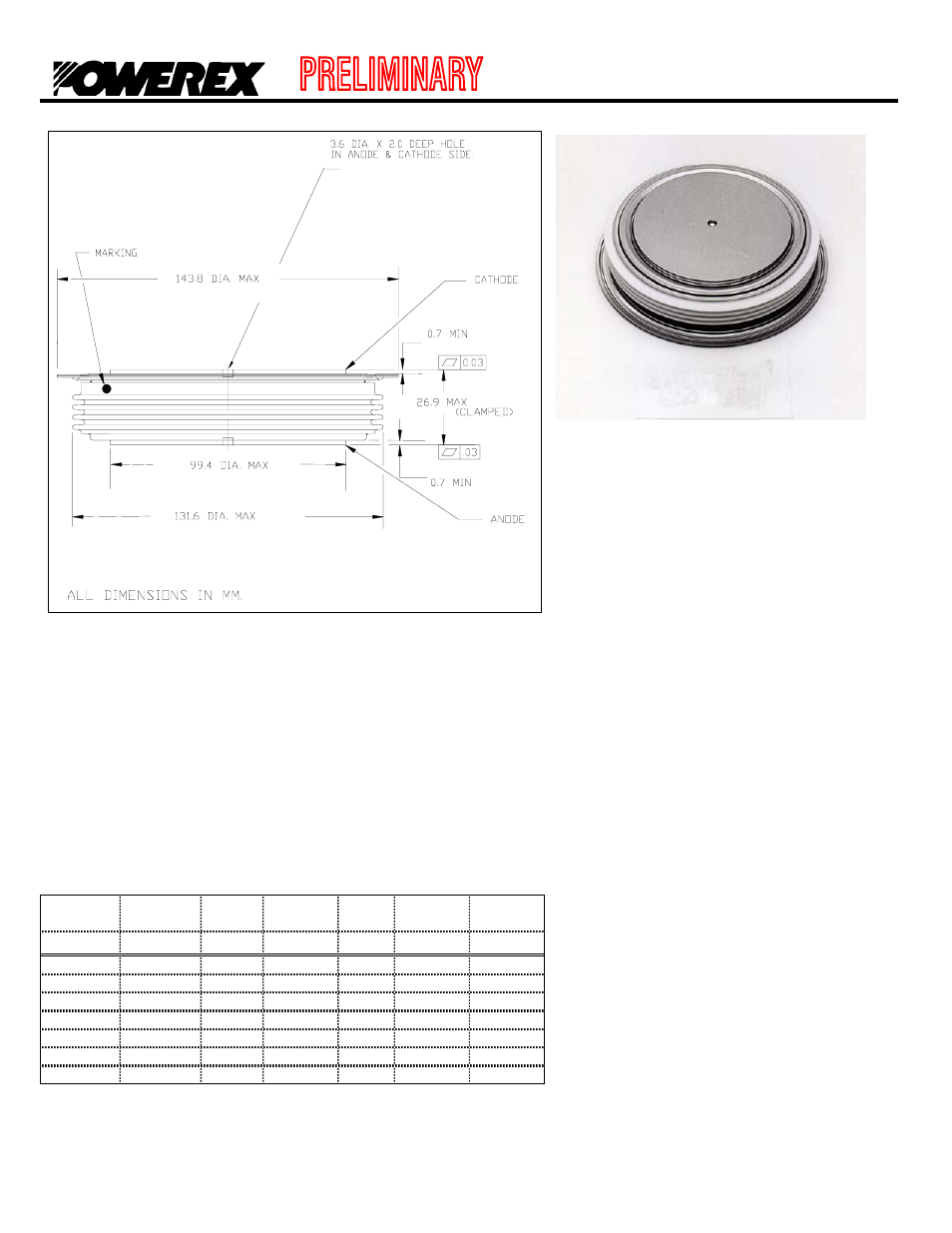

Powerex General Purpose Rectifier Diodes are
designed with high locking voltage capability and
low forward voltage drop to minimize conduction
losses. These are packaged in hermetic,
ceramic Pow-R-Disc packages which can be
mounted using commercially available clamps
and heatsinks or fully assembled to a variety of
air or water cooled heat exchangers.
Page 1
