Intellimod™ Module
Dual-In-Line Intelligent
Power Module
20 Amperes/600 Volts
PS21965-4S
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
1
Rev. 12/09
Description:
DIP-IPMs are intelligent power
modules that integrate power
devices, drivers, and protection
circuitry in an ultra compact
dual-in-line transfer-mold package
for use in driving small three
phase motors. Use of 5th
generation IGBTs, DIP packaging,
and application specific HVICs
allow the designer to reduce
inverter size and overall design
time.
Features:
£
Compact Packages
£
Single Power Supply
£
Integrated HVICs
£
Direct Connection to CPU
£
Reduced R
th
Applications:
£
Refrigerators
£
Air Conditioners
£
Small Servo Motors
£
Small Motor Control
Ordering Information:
PS21965-4S is a 600V, 20 Ampere
short pin DIP Intelligent Power
Module.

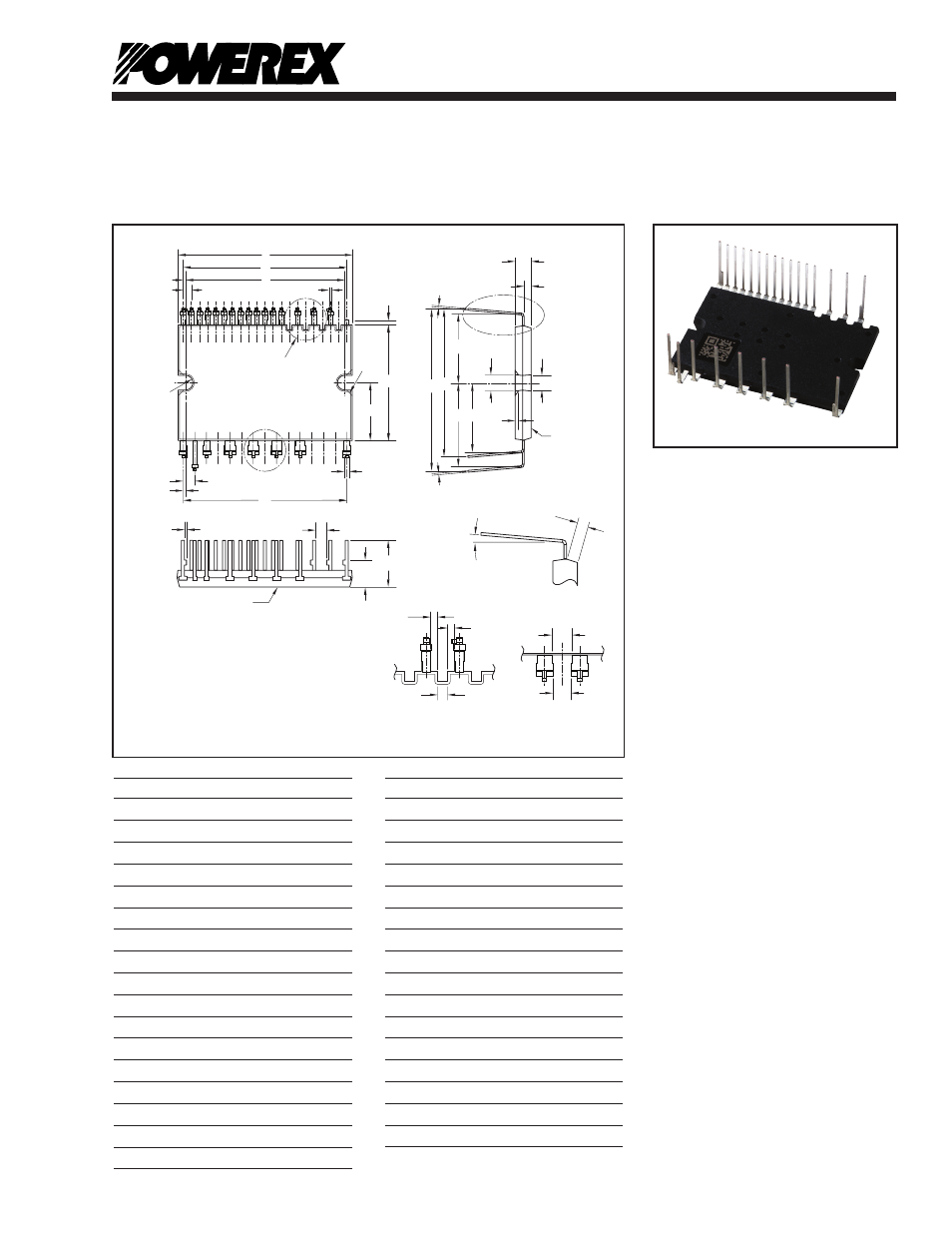

Outline Drawing and Circuit Diagram
Dimensions
Inches
Millimeters
A
1.50±0.02
38.0±0.5
B
0.94±0.02
24.0±0.5
C
0.14
3.5
D
1.40
35.56
E
0.57±0.02
14.4±0.5
F
0.74±0.02
18.9±0.5
G
1.15±0.02
29.2±0.5
H
0.14
3.5
J
0.13
3.3
K
0.016
0.4
L
0.06±0.02
1.5±0.05
M
0.031
0.8
N
1.39±0.019
35.0±0.3
O
0.07±0.008
1.778±0.2
P
0.02
0.5
Q
0.47
12.0
R
0.011
0.28
Dimensions
Inches
Millimeters
S
0.12
2.8
T
0.024
0.6
U
0.1±0.008
2.54±0.2
V
1.33±0.02
33.7±0.5
W
0.03
0.678
X
0.04
1.0
Y
0.05
1.2
Z
1.40
35.56
AA
0.22±0.02
5.5±0.5
AB
0.37±0.02
9.5±0.5
AC
0 ~ 5°
0 ~ 5°
AD
0.06 Min.
1.5 Min.
AE
0.05
1.2
AF
0.063 Rad.
1.6 Rad.
AG
0.118 Min.
3.0 Min.
AH
0.098 Min.
2.5 Min.
HEATSINK
SIDE
HEATSINK SIDE
D
A
B
C
E
E
G
F
V
H
J
K
K
L
M
N
O
P
Q
R
R
T
U
P
W
W
Y
AA
AH
AE
AF
AD
AC
AB
25
24
23
22
21
20
19
18
11 V
N
12 W
N
13 V
N1
14 F
O
15 C
IN
6 V
P
7 W
P
8 V
P1
9 V
NC
10 U
N
1 (V
NC
)
2 V
UFB
3 V
VFB
4 V
WFB
5 U
P
21 W
22 V
23 U
24 P
25 NC
16 V
NC
17 NC
18 N
W
19 N
V
20 N
U
TERMINAL CODE
X
DETAIL "A"
DETAIL "C"
DETAIL "B"
DETAIL "B"
DETAIL "A"
DETAIL "C"
Z
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
AG
S
