Single Discrete Diode
60 Amperes/4500 Volts
QRS4506001
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com
1 01/10 Rev. 3

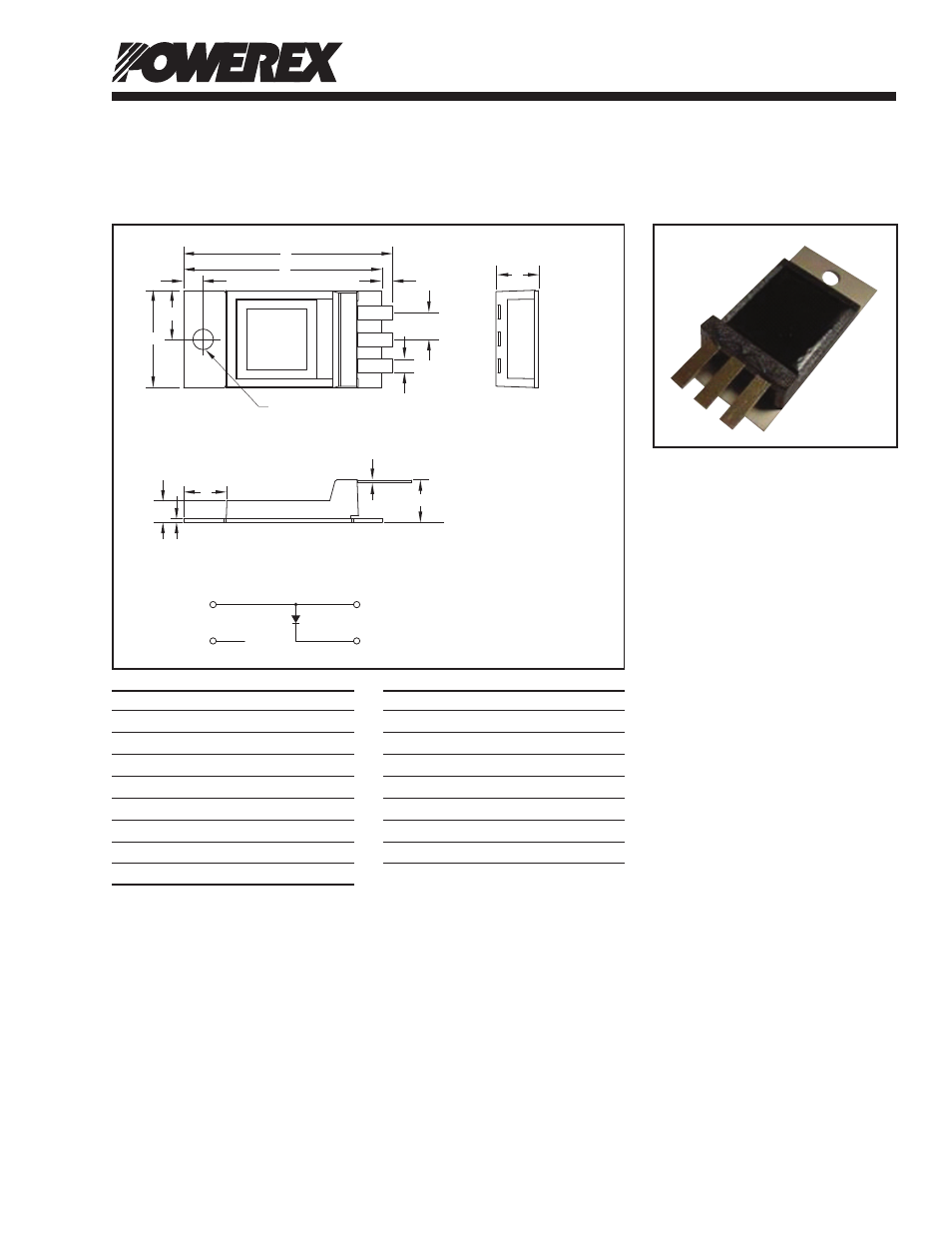

Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
A 2.11 53.6
B 0.98 25.0
C 2.01 51.0
D 0.2 5.0
E. 0.1 2.5
F 0.27 6.9
G 0.49 12.5
H 0.46 Max. 11.8 Max.
Description:
Powerex Single Non-isolated
Discrete is designed specially
for customer high voltage
applications.
Features:
 Non-Isolated Package
 Molybdenum Mounting Plate
Applications:
 Snubber Circuits
 Free Wheeling
 Switching Power Supplies
Dimensions Inches Millimeters
J 0.14 3.6
K 0.22 5.7
L 0.43 10.8
M 0.04 1.0
N 0.43 10.9
P 0.02 0.5
Q 0.21 Dia. 5.3 Dia.
B
G
C
A
P
N
L
M
A (3)
K (BASE) NC (2)
A (1)
F
K
A (3)
NC (2)
A (1)
K (BASE)
H
J
D E
Q
