Dimension Inches Millimeters
A 3.94 100.0
B 3.38±0.01 86.0±0.25
C 2.16 55.0
D 1.61±0.01 41.0±0.25
E 1.18 30.0
F 1.12 28.5
G 0.76 19.4
H 0.71 18.0
J M8 Metric M8
K 0.28 R R7.0
L 0.28 7.0
M 0.22 Dia. Dia. 5.5
Description:
Powerex Fast Recovery Welder
Diode Modules are designed for
use in applications requiring fast
switching. The modules are
isolated for easy mounting with
other components on common
heatsinks.
Features:
Ⅺ
Isolated Mounting
Ⅺ
Planar Chips
Applications:
Ⅺ Welding Power Supplies
Ⅺ Free Wheeling Diodes
Ⅺ Center Tap Circuits
Ordering Information:
Select the complete ten digit
module part number you desire
from the table below.
Example: RM300CA-9W is a
450V (VCES), 300 Ampere, Fast
Recovery Common Cathode
Diode Module.
Current Rating Voltage
Type Amperes Volts (x50)
RM 300 9W
D-45
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Fast Recovery
Welder Diode Module
300 Amperes/450 Volts
RM300CA-9W

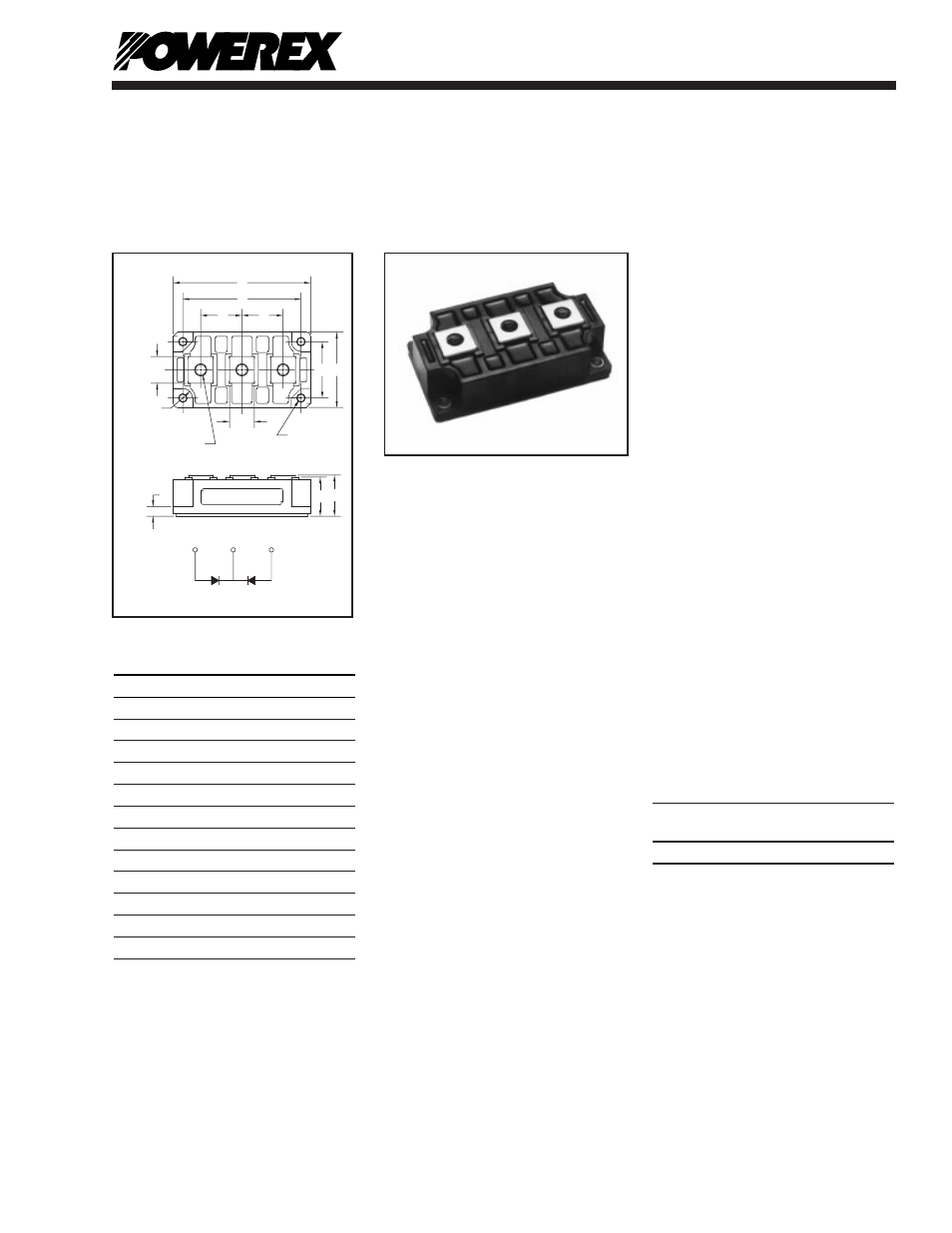

Outline Drawing
RM300CA-9W
Fast Recovery Welder Diode Module
300 Amperes/450 Volts
L E F
H
D C
A
B
E E
G
K (4 TYP.)
J - M8 THD
(3 TYP.)
M - DIA.
(4 TYP.)
A2 K A1
K A2 A1
