Single IGBTMOD™
A-Series Module
600 Amperes/1200 Volts
CM600HA-24A
1
01/10 Rev. 1
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module
consists of one IGBT Transis-
tor in a single configuration with
a reverse connected super-fast
recovery free-wheel diode. All
components and interconnects
are isolated from the heat sinking
baseplate, offering simplified
system assembly and thermal
management.
Features:
£
Low Drive Power
£
Low VCE(sat)
£ Discrete Super-Fast Recovery
Free-Wheel Diode
£
Isolated Baseplate for Easy
Heat Sinking
Applications:
£
DC Chopper
£ Inverter
£
UPS
£
Forklift
Ordering Information:
Example: Select the complete
part module number you
desire from the table below -i.e.
CM600HA-24A is a 1200V (VCES),
600 Ampere Single
IGBTMOD™ Power Module.
Type
Current Rating
VCES
Amperes
Volts (x 50)
CM
600
24

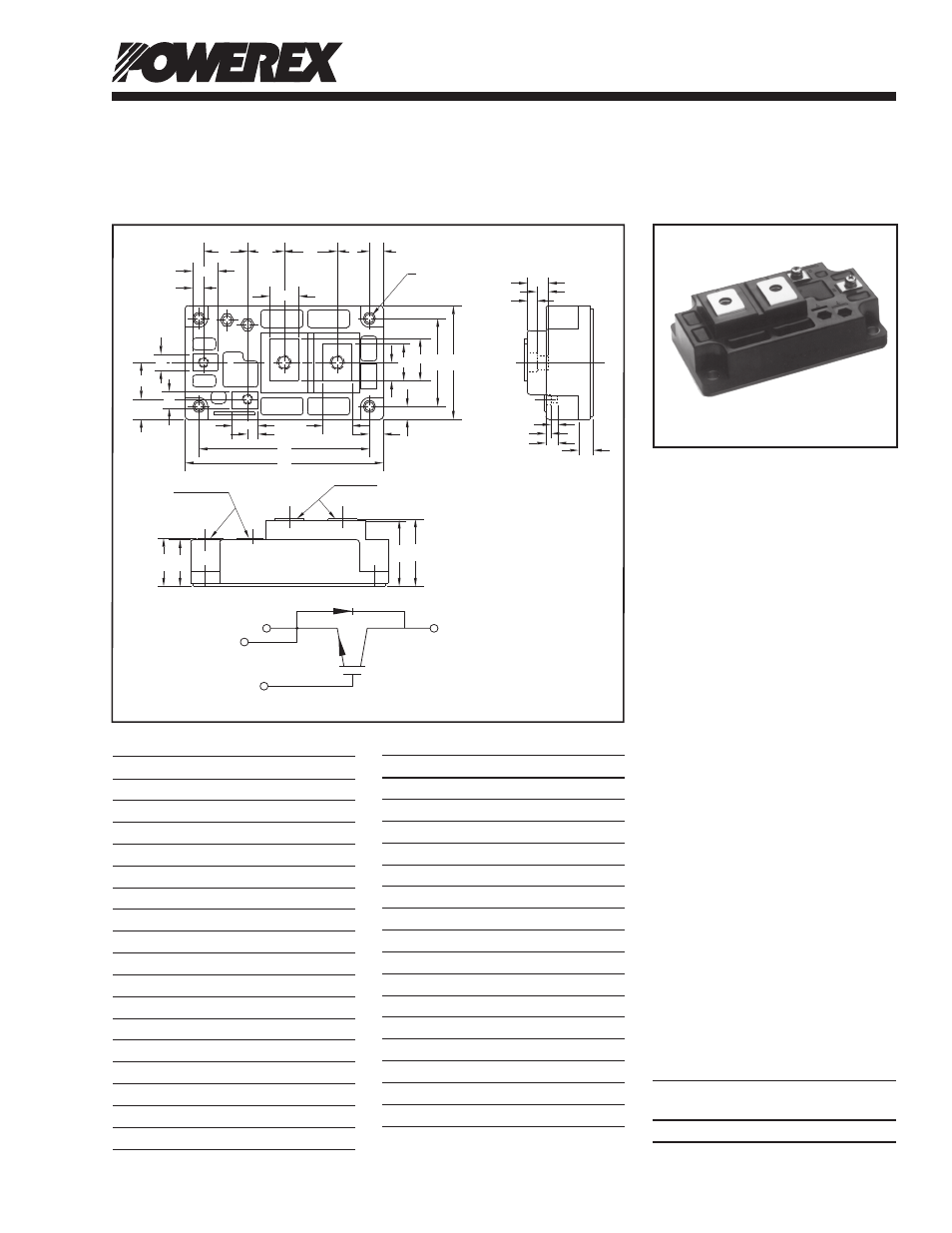

Outline Drawing and Circuit Diagram
Dimensions
Inches
Millimeters
A
4.25
108.0
B
3.66
±0.01
93.0
±0.25
C
0.63
16.0
D
0.30
7.5
E
0.69
17.5
F
1.14
29.0
G
0.79
20.0
H
0.94
24.0
J
0.55
13.9
K
0.24
6.0
L
2.44
62.0
M
1.89
±0.01
48.0
±0.25
N
0.39
10.0
P
0.39
20.0
Q
0.51
23.0
R
0.33
8.5
S
1.42+0.04/-0.02 36.0+1/-0.5
Dimensions
Inches
Millimeters
T
1.02+0.04/-0.02 25.8+1/-0.5
U
M6 Metric
M6
V
M4 Metric
M4
W
0.256 Dia.
6.5 Dia.
X
0.79
20.0
Y
0.35
9.0
Z
0.43
11.0
AA
0.53
13.55
AB
0.27
7.0
AC
0.98
25.0
AD
1.38
35.0
AE
0.45
11.5
AF
0.2
5.0
AG
0.25
6.5
AH
0.12
3.2
AJ
0.32
8.2
C
G
E
E
A
B
F
K
J
E
D
R
AF
AH
AE
AG
AF
AJ
S
AD
U - THD.
V -THD.
(2 TYP.)
W - DIA. (4 TYP.)
Y
Y
X
Z
H
G
C
C
AA
K
D
M
N
AB
P Q
(2 TYP.)
L
E
E
G
C
T AC
