SDV50xxN(P)
AUTOMOTIVE RECTIFIERS DIODES_BOSCH
FEATURES:
a、Adopt a vacuum solder techniques with one-step soldering Technology. High Soldering Lug welds temperature,
Good Consistency of Max. Forward Voltage Drop and Low △VF Dispersion coefficient.
b、 Epoxy molded packages. Good hermetic closure, and strong resistance against bending, tension, humidity.
c、O/J CHIP. Good consistency of Forward and Reverse feature, effective utilization of silicon area, small high
temperature leaking Currency and good capacity of reverse surge current.
d、Apply to each field Automotive Rectifiers Extensively.
e、Replacement of BOSCH.

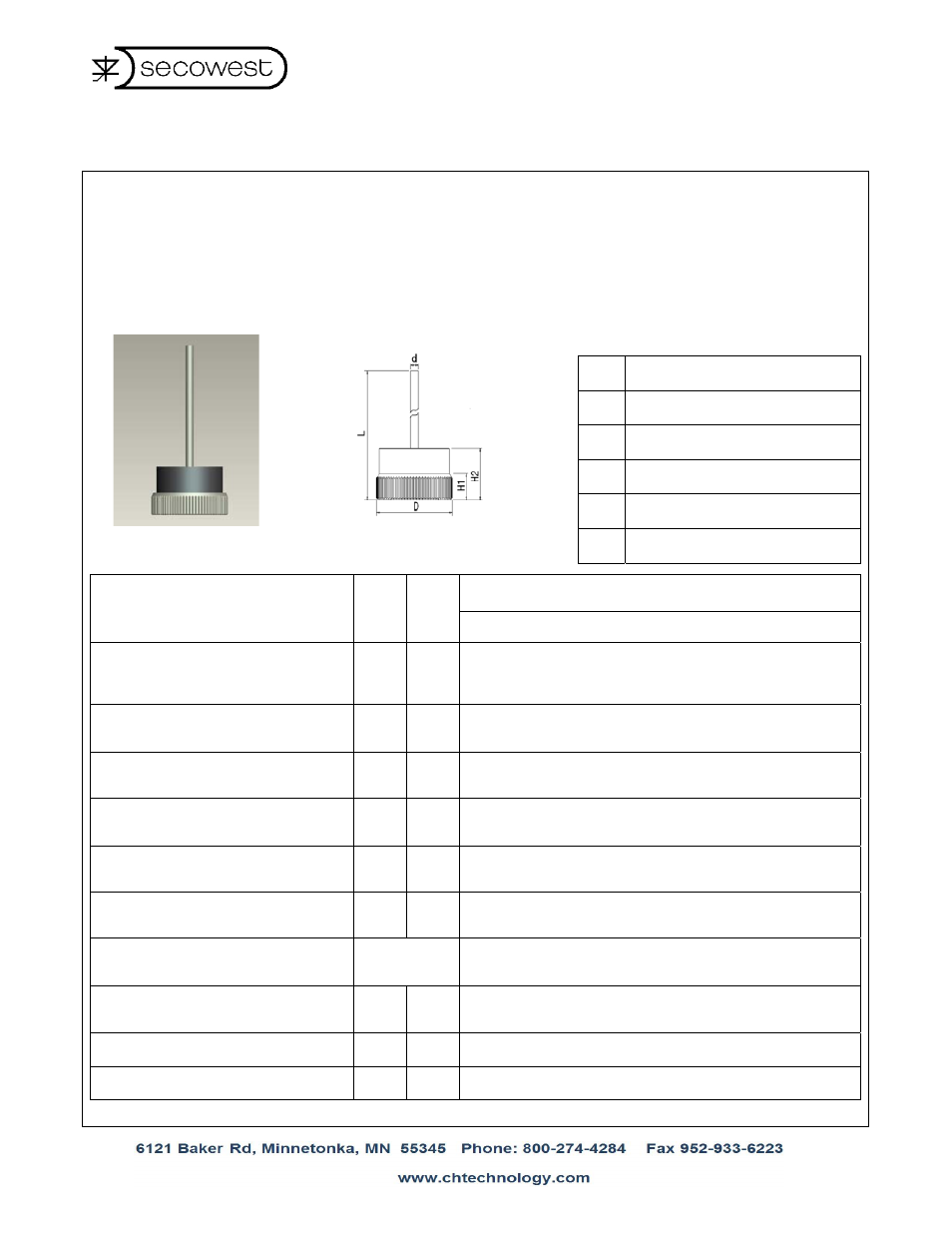

Drawing and Dimension
SYM Dimension
L 32(1.26)MAX
D Φ12.75(0.502)～Φ12.84(0.506)
d Φ1.30(0.051)±0.025(0.001)
H1 4.2(0.165)±0.5(0.002)
H2 8.5 (0.334)±0.5(0.002) ELECTRICALCHARACTERISTICS
CHARACTERISTIC SYM UNIT
TYPE
SDV50xxN(P)
Max. Average Forward current ( T
C
＝
170 )
I F
(AV)
A 50
Max. Peak, One-cycle forward,
non-repetitive surge current
I FMS
A
600
Max. Forward Voltage Drop
(
I
F
＝ 100A, T
C
＝ 25 )
V FM
V
1.01
Max. Repetitive Reverse
Peak Voltage
V RRM
V 200-800
Max. Repetitive Reverse
Peak Voltage (
V
R
＝ V
RRM
, T
C
＝ 25 )
I RRM1 μA 3
Max. Repetitive Reverse
Peak Voltage(
V
R
＝ V
RRM
,T
C
＝ 175 )
I RRM2 μA 800
△ V
F
Dispersion Coefficient
(max-averag
e)/average
≤15％
Max. Thermal Resistance, Junction to
case
R
thjc
/W ≤0.6
Storage temperature Range
T stg -40～200
Junction Temperature T jm 200
Ordering Code e.g.SDV5004P 04=400 volts, IF=25-50A, P=Forward Polarity (Anode wire lead), N=Reverse Polarity (Cathode wire lead)
