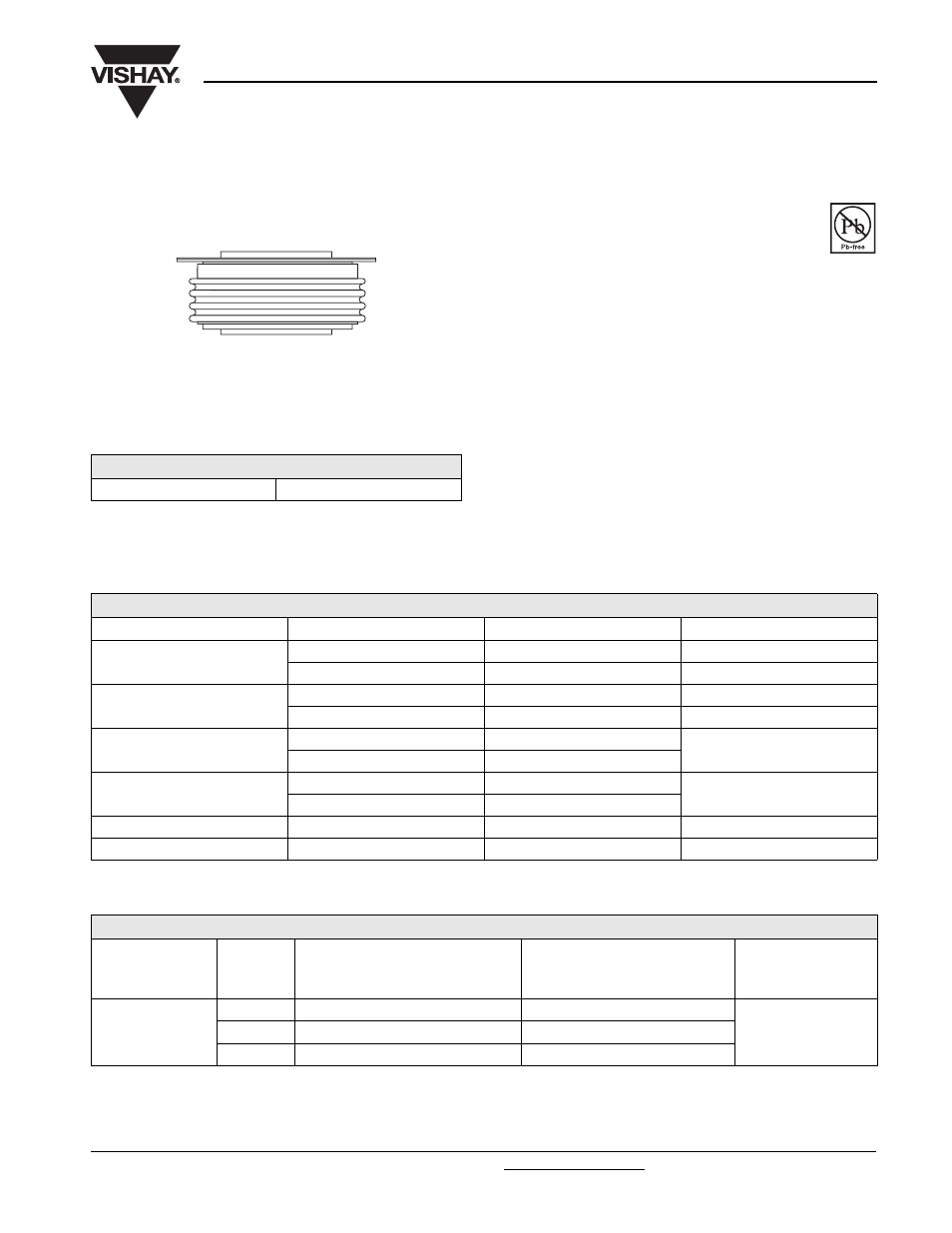

Document Number: 93543 For technical questions, contact: [email protected] www.vishay.com
Revision: 14-May-08 1
Standard Recovery Diodes
(Hockey PUK Version), 3800 A
SD3000C..K Series
Vishay High Power Products
FEATURES
• Wide current range
• High voltage ratings up to 1000 V
• High surge current capabilities
• Diffused junction
• Hockey PUK version
• Case style DO-200AC (K-PUK)
• Lead (Pb)-free
TYPICAL APPLICATIONS
• Converters
• Power supplies
• High power drives
• Auxiliary system supplies for traction applications
ELECTRICAL SPECIFICATIONS
PRODUCT SUMMARY
I
F(AV)
3800 A
DO-200AC (K-PUK)
RoHS
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
PARAMETER TEST CONDITIONS VALUES UNITS
I
F(AV)
3800 A
T
hs
55 °C
I
F(RMS)
6230 A
T
hs
25 °C
I
FSM
50 Hz 35 800
A
60 Hz 37 500
I 2 t
50 Hz 6410
kA 2 s
60 Hz 5850
V
RRM
Range 400 to 1000 V
T
J
- 40 to 180 °C
VOLTAGE RATINGS
TYPE NUMBER
VOLTAGE
CODE
V
RRM
, MAXIMUM REPETITIVE PEAK
REVERSE VOLTAGE
V
V
RSM
, MAXIMUM NON-REPETITIVE
PEAK REVERSE VOLTAGE
V
I
RRM
MAXIMUM
AT T
J
= 180 °C
mA
SD3000C..K
04 400 500
75 08 800 900
10 1000 1100
