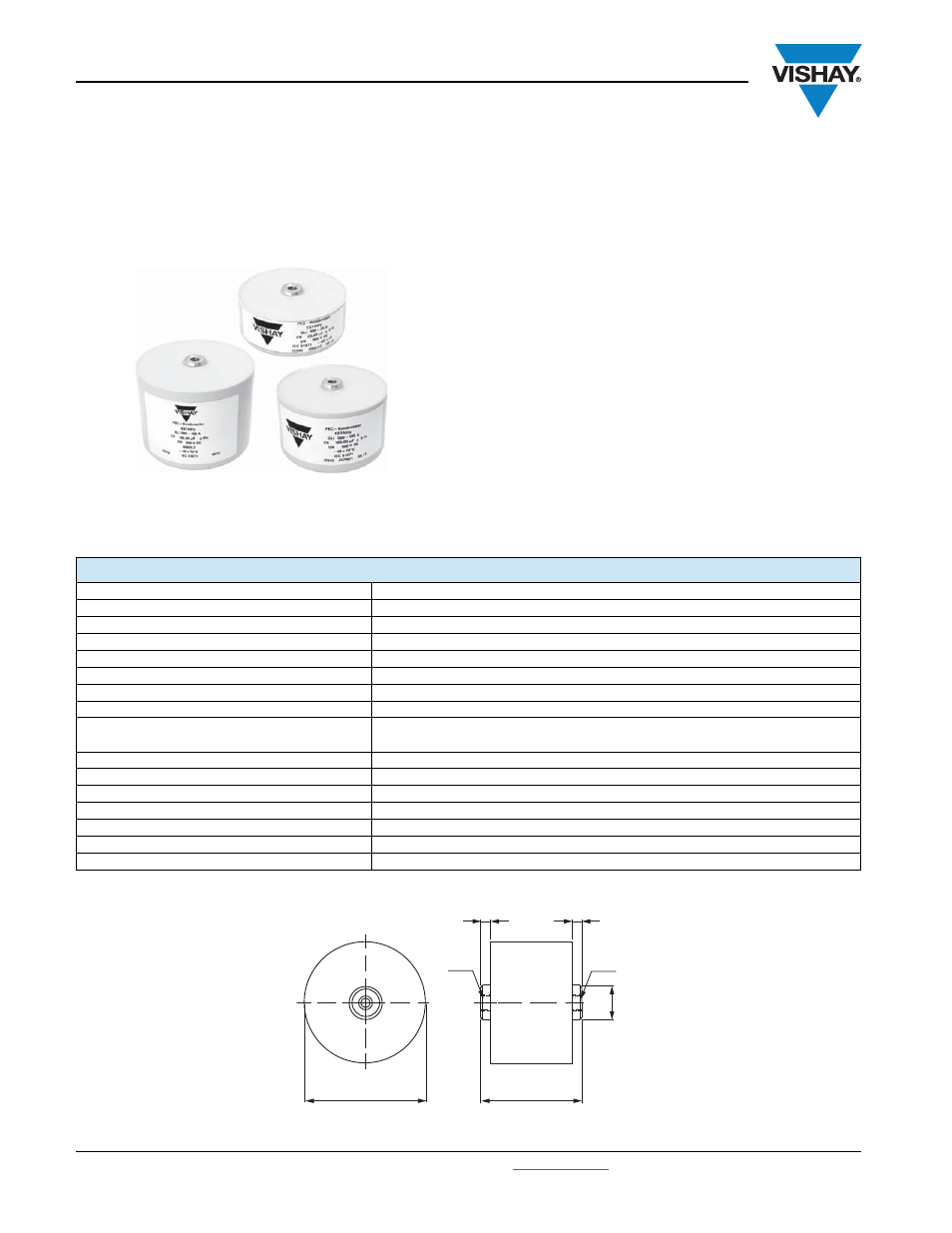

Capacitors for Power Electronics (PEC) - Cylindrical
www.vishay.com For technical questions, contact: [email protected] Document Number: 13048
12 Revision: 15-Feb-11
GLI......A
Vishay ESTA
FEATURES
• Very low stray inductance: < 10 nH
• Extremely low losses at high frequencies < 4 x 10
-4 at 2 kHz
• Low ESR: < 4 m

• Highest RMS current rating: up to 100 A
• High impulse discharge current capability
• Resistance to heavy duty shock vibration
• High reliability and life expectancy
• Casing material: UL 94 V-0
APPLICATIONS
• Voltage converters
• Frequency converters
• RFI filters
• Traction drives
• Industrial drives
• UPS
• Medical equipment
DIMENSIONS in millimeters
Drawing 1
GLI...-...A
QUICK REFERENCE DATA
DESCRIPTION VALUE
Rated DC voltage min. 700 V
Rated DC voltage max. 2150 V
Capacitance min. 7.5 μF
Capacitance max. 230 μF
Technology Metalized polypropylene film
Dissipation factor (tan 
0
) < 2 x 10 -4 /2 kHz
Capacitance tolerance ± 5 %
Operating temperature (hotspot)

min.
- 40 °C

max.
- 80 °C
Inductance < 30 nH
Lifetime expectancy 100 000 h at U
NDC
and < 60 °C hotspot
Reliability 300 FIT
Test voltage Terminal/terminal = 1.5 x U
NDC
, 10 s; Terminal/case = 2 x U
NDC
+ 1000 V
AC
, 60 s
Casing material Polyester, UL 94 V-0
Filling Resin polyurethane, UL 94 V-0
Standards IEC 61071-1, IEC 61881, and EN 61071-1
M8
D
5
8 deep
5
8 deep
M8
Ø 17
H ± 2
