The marking must be in one plane together with the vent hole of the
standpipe, or in the case of angled standpipes, with the bending axis.
Align the radar sensor accordingly when mounting it on the fitting.
4.4 M ount the radar sensor on the fitting
Mounting of the VEGAPULS 66 is carried out in position "Operation" of
the fitting.
Proceed as follows:
1 Open the half shells of the Clamp connection
2 Attach Clamp seal
3 Attach the radar sensor carefully
4 Attach the half shells of the Clamp connection in the opposite
direction

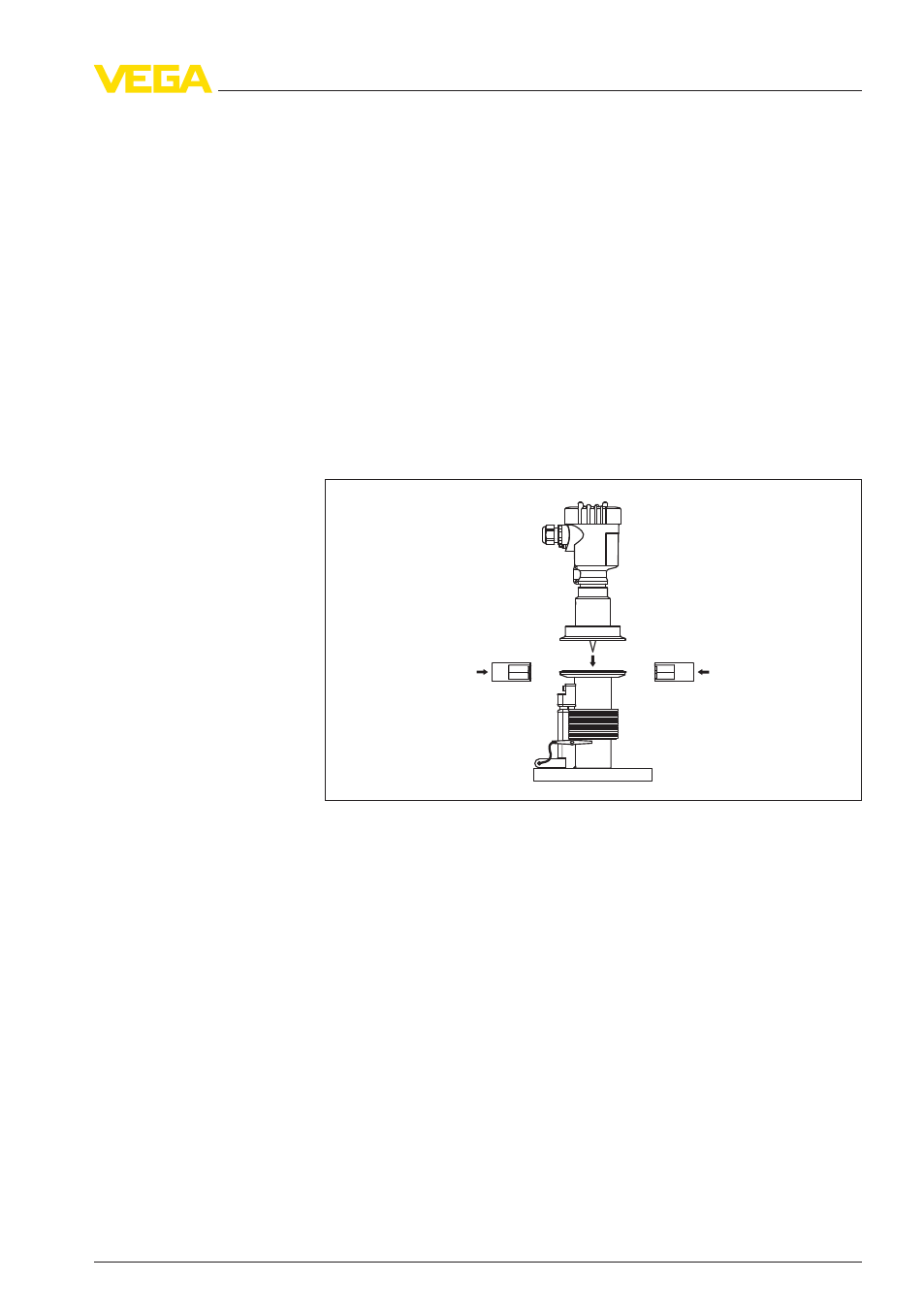

Fig. 4: Mount the radar sensor to the fitting
5 Tighten the nuts
Assembly of the VEGAPULS 66 is finished
Swivelling quick release fasterner • for VEGAPULS 66 Clamp 3" 11
