6 Set up the sensor with the indicating and adjustment module

VEGAPULS 62 standpipe version • Modbus and Levelmaster protocol

41363-EN-121011

To perform the adjustment, enter the distance with full and empty ves-

sel. For instruments with standpipe antenna, these values are already

preset by default, see the following example:

100%

0,5 m (19.68

5 m

(196.9

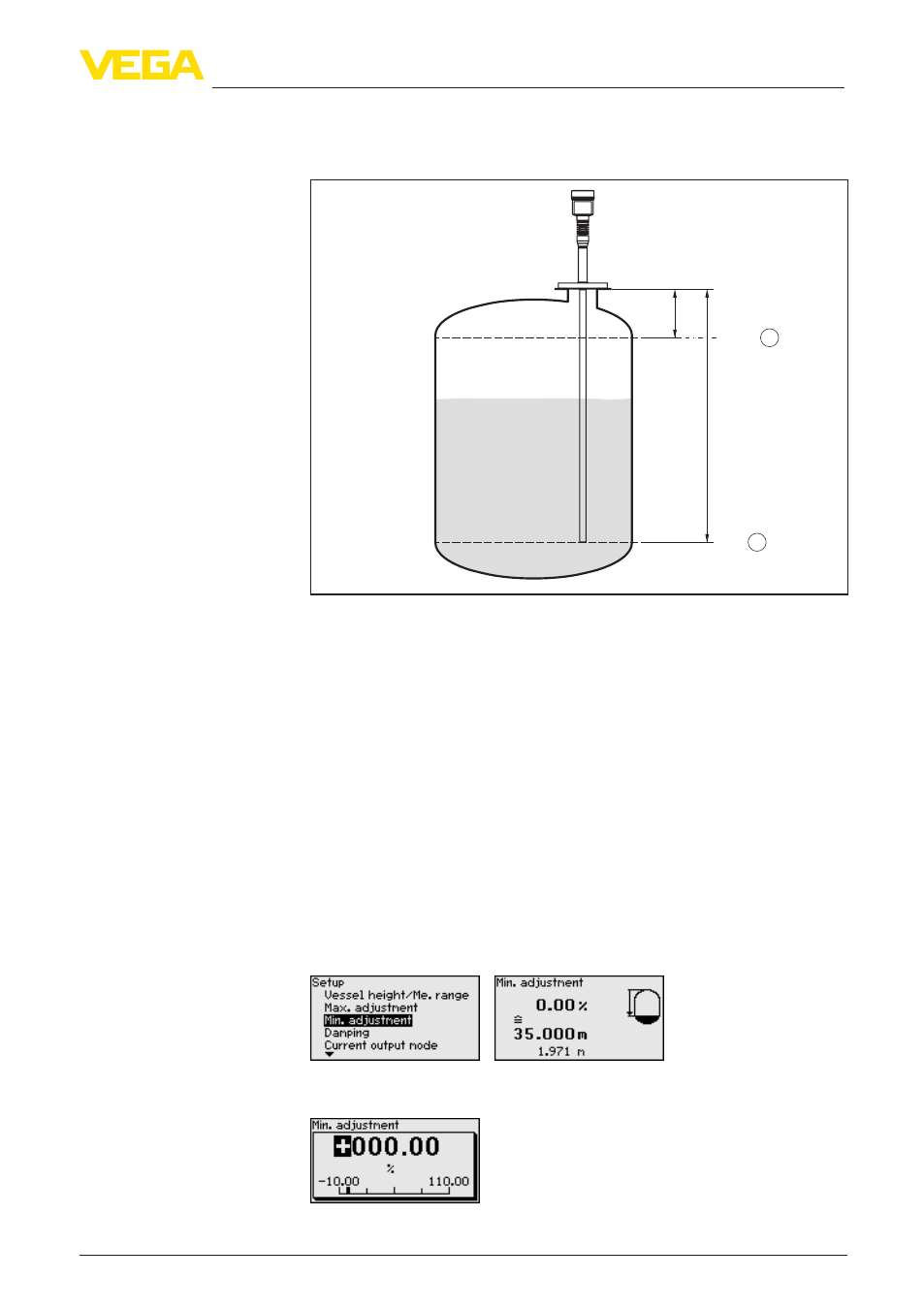

Fig. 10: Parameter adjustment example min./max. adjustment
1 Min. level = max. meas. distance

2 Max. level = min. meas. distance

If these values are not known, an adjustment with the distances of for

example 10 % and 90 % is possible. Starting point for these distance

specifications is always the seal surface of the thread or flange. By

means of these settings, the real level will be calculated.
The real product level during this adjustment is not important, be-

cause the min./max. adjustment is always carried out without chang-

ing the product level. These settings can be made ahead of time

without the instrument having to be installed.

Proceed as follows:
1. Select the menu item "Setup" with [->] and confirm with [OK].

Now select with [->] the menu item "Min. adjustment" and confirm

with [OK].

2. Edit the percentage value with [OK] and set the cursor to the

requested position with [->].

Setup/Min. adjustment
