G ½
G ½
ø 56 mm
(2.21")
1
10 mm (4.33")
95 mm (3.74")
275 mm (10.83")
130 mm (5.12")
2
1

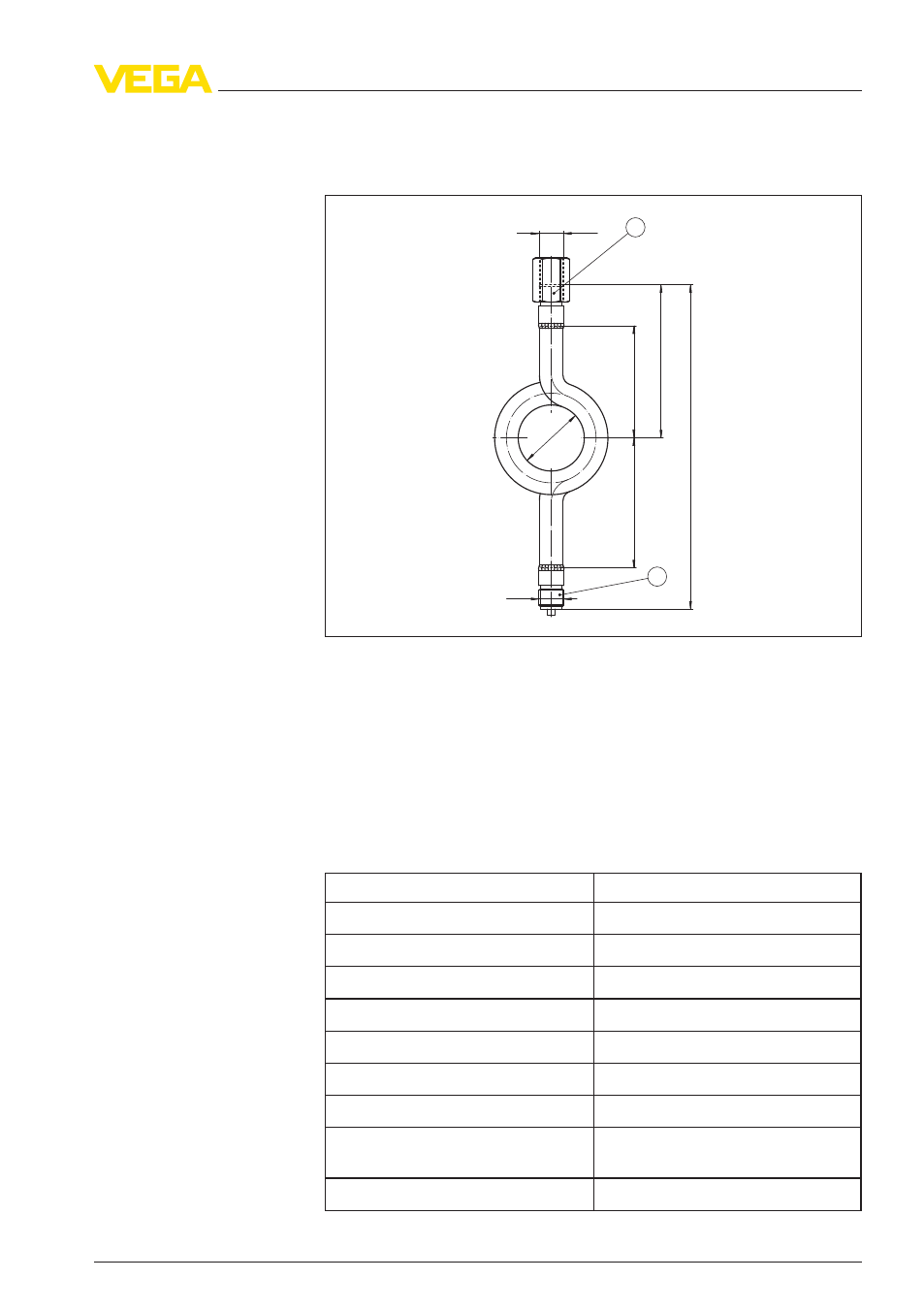

Fig. 2: Configuration of siphon according to DIN 16282, Form C (circular form) for
vertical pressure extraction
1
Input
2 Output
The scope of delivery encompasses:
l
Siphon
l This supplementary instructions
Feature Feature
Material St 1.0345
Standard DIN 16282
Series Form A, form C
Input Fitting G½, EN 837
Output Clamping sleeve G½
Max. permissible pressure at 120 °C 160 bar
Max. permissible pressure at 300 °C 120 bar
Pressure stage/Max. permissible
pressure at 400 °C 104 bar
Weight approx. 0.8 kg
Scope of delivery
Technical data (material
St 1.0345)
Mounting accessories, pressure measurement technology 7
4 Cooling zones
