11.2 Dimensions
The following dimensional drawings represent only an extract of the possible versions. Detailed
dimensional drawings can be downloaded on www.vega.com under "Downloads" and "Drawings".
You can find the possible combinations of signal outputs and housing versions on www.vega.com
under "configurator".
Housing
~ 69 mm
(2.72")
ø 79 mm
(3.11")
112 mm (4.41"
)
M20x1,5/
½ NPT
~ 116 mm
(4.57")
116 mm (4.57"
)
M20x1,5
M20x1,5/
½ NPT
~ 69 mm
(2.72")
ø 79 mm
(3.11")
117 mm (4.61"
)
M20x1,5/
½ NPT
~ 59 mm
(2.32")
ø 80 mm
(3.15")
112 mm (4.41"
)
M20x1,5/
½ NPT
ø 86 mm
(3.39")
1 2
4
3
5
104 mm (4.1")
M20x1,5/
½ NPT
~ 59 mm
(2.3")
ø 80 mm
(3.15")

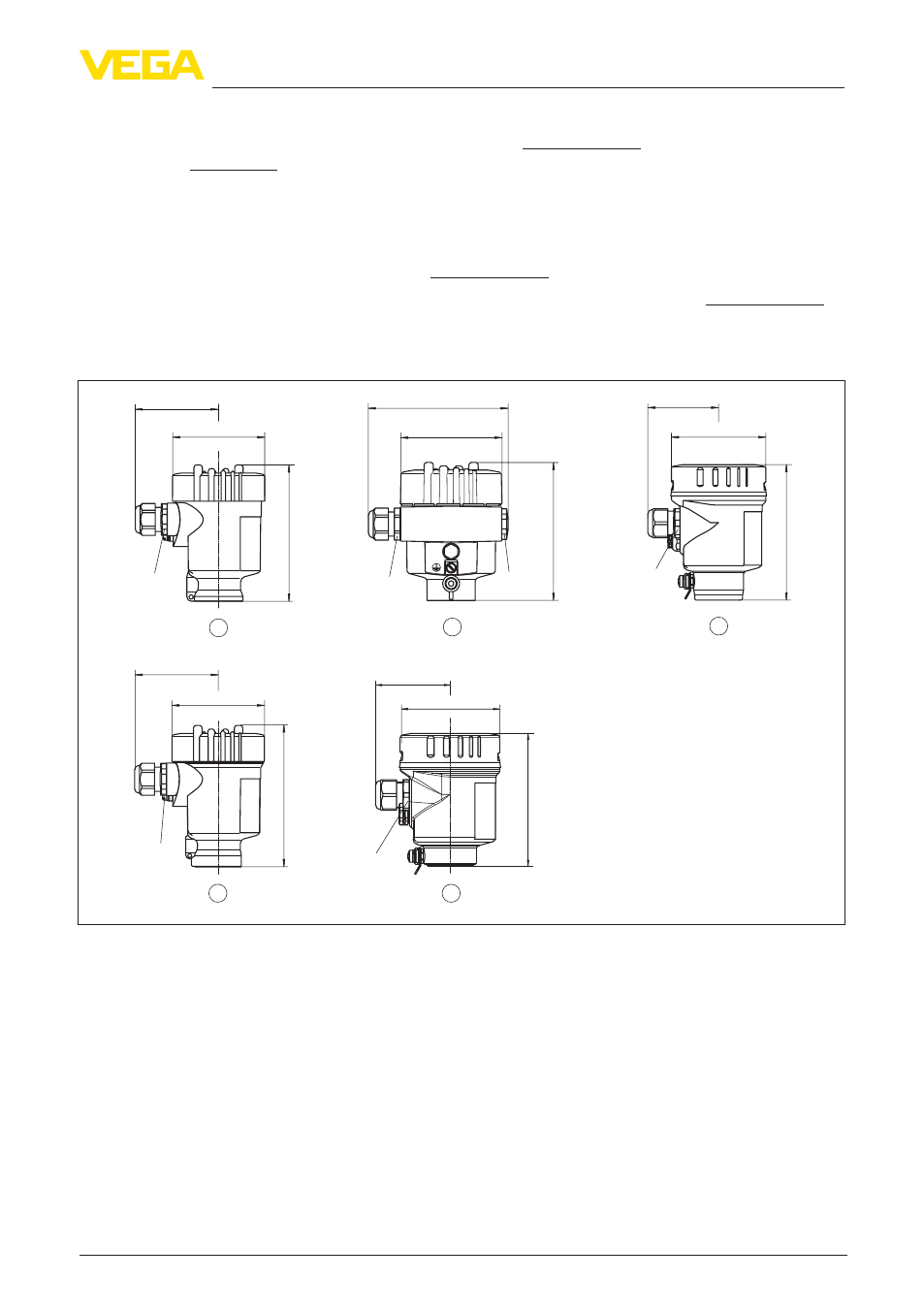

Fig. 27: Housing versions in protection IP 66/IP 67 and IP 66/IP 68 (0.2 bar)
1 Plastic housing
2 Aluminium housing
3 Stainless steel housing, electropolished
4 Stainless steel housing, precision casting
5 Stainless steel housing, electropolished IP 69K
