9
3 Product description
VEGADIS 81 •
43814-EN-130502
4
1
3
2
4
5

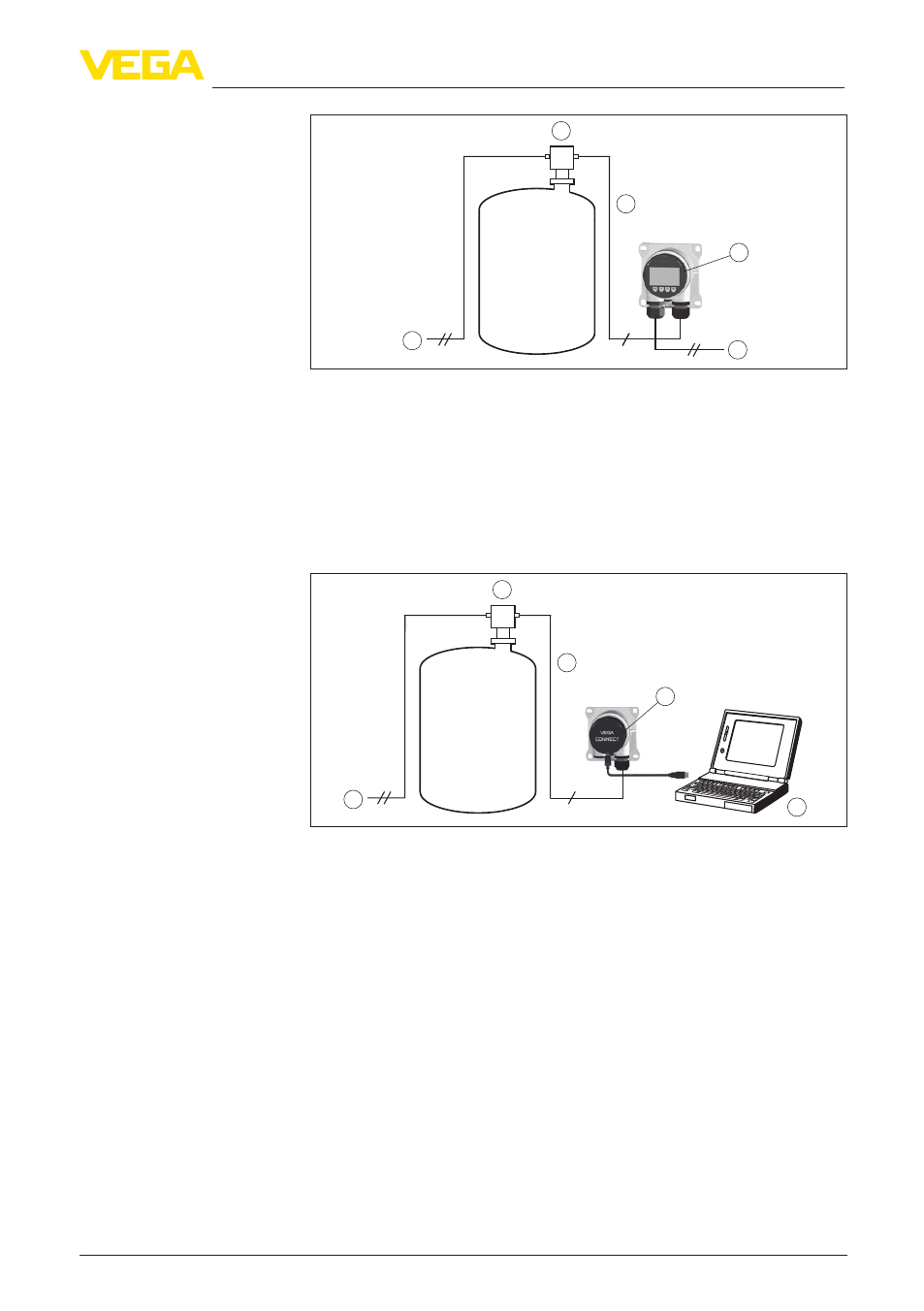

Fig. 3: Connection of VEGADIS 81 to the sensor
1 Voltage supply/Signal output sensor
2 Sensor
3 Connection cable, sensor - VEGADIS 81
4 VEGADIS 81 with integrated heating
5 Voltage supply, heating
The sensor adjustment is carried out via the VEGADIS 81, the VEGA-
CONNECT as well as a PC with PACTware.
1
3
2
5
4
4
Fig. 4: Connection of VEGADIS 81 to the sensor and the PC
1 Voltage supply/Signal output sensor
2 Sensor
3 Connection cable VEGADIS 81 - Sensor
4 VEGADIS 81
5 VEGACONNECT
6 PC with PACTware
3.3 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging of standard instruments consists of environment-
friendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.
Application example -
Adjustment via PC with
PACTware
Packaging
