4 Mounting
VEGADIS 81 •
43814-EN-130502
4 Mounting
4.1 General instructions
VEGADIS 81 functions in any installation position.
Use the recommended cables (see chapter "Connecting to power
supply") and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry. Rain and condensation water can thus drain off. This ap-
plies mainly to:
•
outdoor mounting
•
installations in areas where high humidity is expected (e.g. through
cleaning processes)
•
installations on cooled or heated vessels
4.2 Mounting instructions
The VEGADIS 81 is suitable for wall mounting in all available housing
materials.
7 mm (0.28")
82 mm (3.23")
10 mm
(0.39")

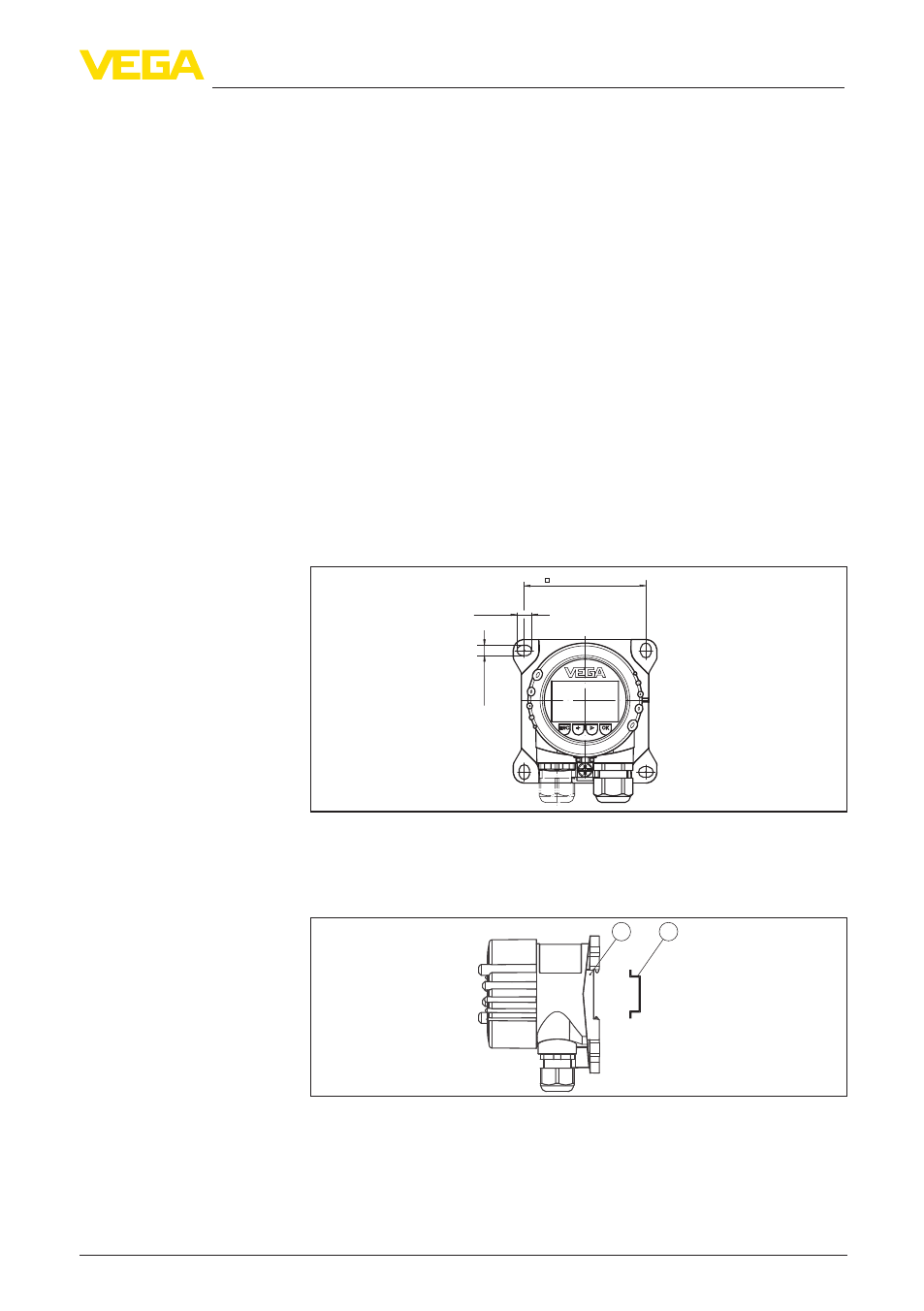

Fig. 5: Drilling dimensions for VEGADIS 81 for wall mounting
The VEGADIS 81 with plastic housing is suitable for direct carrier rail
mounting.
1 2
Fig. 6: VEGADIS 81 with plastic housing for carrier rail mounting
1 Base
2 Carrier rail
Installation position
Moisture
Wall mounting
Carrier rail mounting -
Plastic housing
