3 Product description
3 .1 Structure
The scope of delivery encompasses:
l
Floating body for two point level sensors
l Nut G¾ (316 Ti)
l
Nut G1½ (316 Ti)
l
Documentation
-
This supplementary operating instructions
The instrument version "Float for oil/water detection for VEGA-
SWING 63 and EL 3" consists of a floating body on which a point level
sensor VEGASWING 63 and a conductive electrode EL 3 are
mounted.
1
3
2
4
5

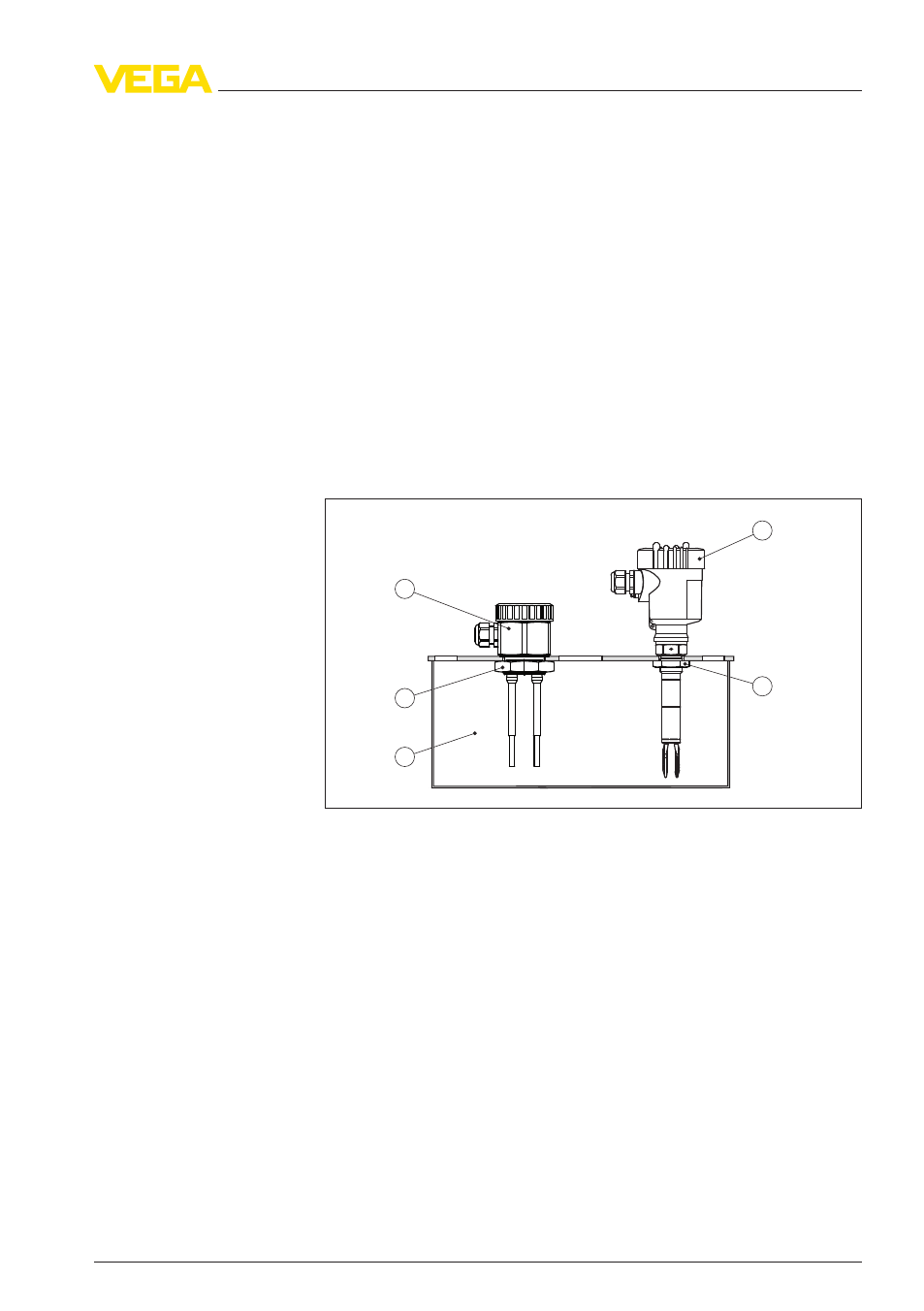

Fig. 1: Components of the float probe
1 Point level sensor VEGASWING 63
2 Nut G¾ (316 Ti)
3 Conductive probe EL 3
4 Nut G1½ (316 Ti)
5 Float
3 .2 Principle of operation
The float is suitable for the following sensors:
l
VEGASWING 63
l
Conductive probe EL 3
The measuring system can detect the following statuses (situations):
l
No liquid present
l
Water or hydrous (conductive) liquid present
l
Oil or a liquid similar to oil (non-conductive) present
Scope of delivery
Constituent parts
Application area
Functional principle
