7 Maintenance and fault rectification
VEGACAL 67 • For connection to a signal conditioning instrument
31761-EN-130917
7.4 Shortening the electrode
The probe (cable) can be shortened by any length.
1. Loosen the two pins on the gravity weight (hexagon) and remove
the pins.
2. Pull the cable out of the gravity weight.
3. To avoid splicing of the steel cable, tin the cable before shortening
with a soldering iron and tighten the wire.
4. Shorten the cable with a cut-off wheel or metal saw at the lower
end. Make sure the length is correct before shortening.
70 mm (2.76"
)
200 mm
(7.87"
)

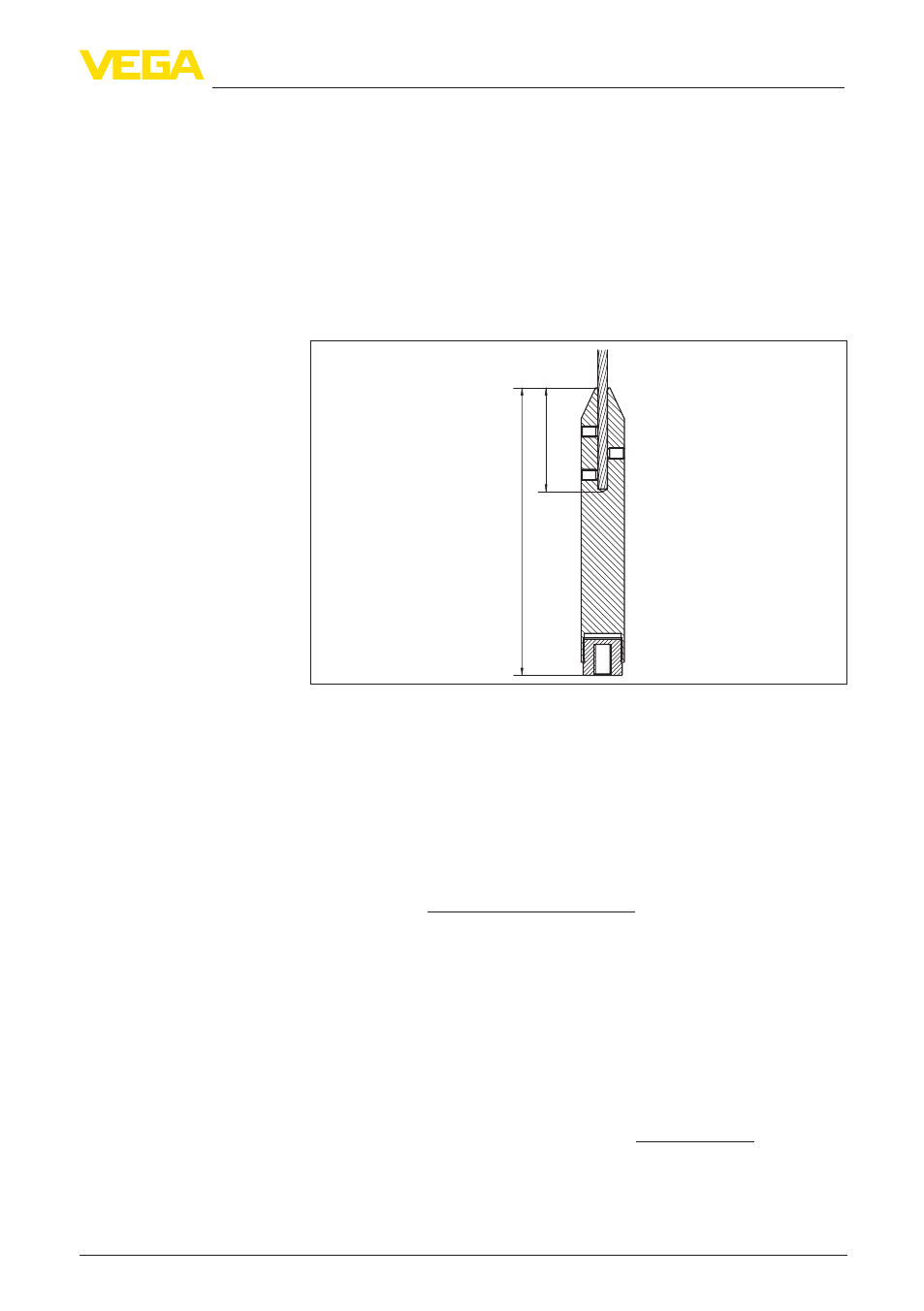

Fig. 13: Take the gravity weight into account and shorten the cable respectively
5. Shift the gravity weight again flush to the cable and fix it with the
two pins.
6. Carry out an adjustment. See "Setup procedure, carry out min.
adjustment - carry out max. adjustment".
7.5 How to proceed in case of repair
You can find a repair form as well as detailed information on how to
pr and "Forms and certifi-
cates".
By doing this you help us carry out the repair quickly and without hav-
ing to call back for needed information.
If a repair is necessary, please proceed as follows:
•
Print and fill out one form per instrument
•
Clean the instrument and pack it damage-proof
•
Attach the completed form and, if need be, also a safety data
sheet outside on the packaging
•
Please contact for the return shipment the agency serving you. You
can find the agency on our home page
