5 Connecting to power supply
VEGACAL 67 • For connection to a signal conditioning instrument
31761-EN-130917
5.2 Connection procedure
Proceed as follows:
1. Unscrew the housing cover
2. Loosen compression nut of the cable entry
3. Remove approx. 10 cm (4 in) of the cable mantle, strip approx.
1 cm (0.4 in) of insulation from the ends of the individual wires
4. Insert the cable into the sensor through the cable entry
5. Lift the opening levers of the terminals with a screwdriver (see
following illustration)
6. Insert the wire ends into the open terminals according to the wir-
ing plan
7. Press down the opening levers of the terminals, you will hear the
terminal spring closing
8. Check the hold of the wires in the terminals by lightly pulling on
them
9. Connect the screen to the internal ground terminal, connect the
outer ground terminal to potential equalisation
10. Tighten the compression nut of the cable entry. The seal ring must
completely encircle the cable
11. Screw the housing cover back on
The electrical connection is hence finished.

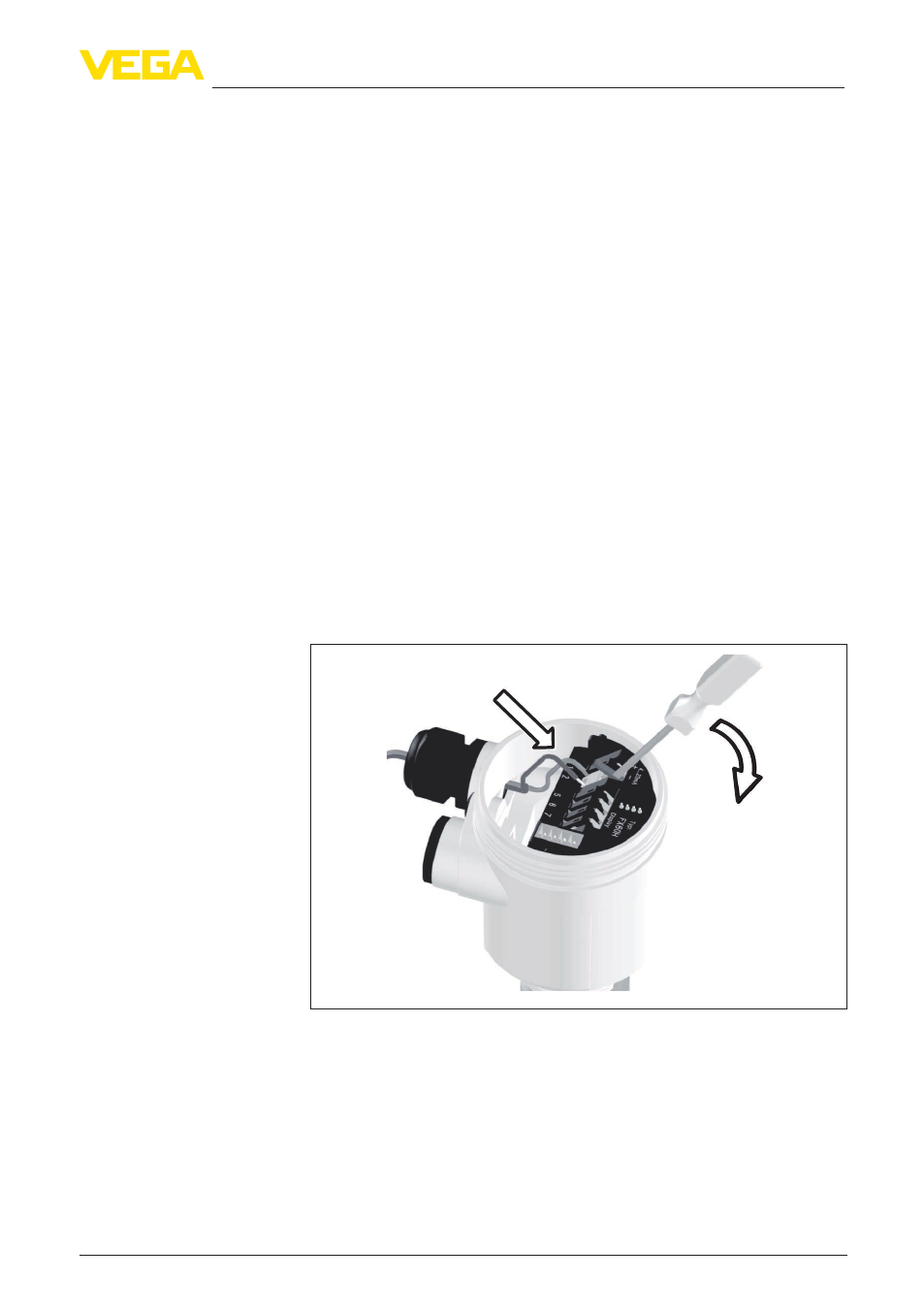

Fig. 6: Connection steps 6 and 7
