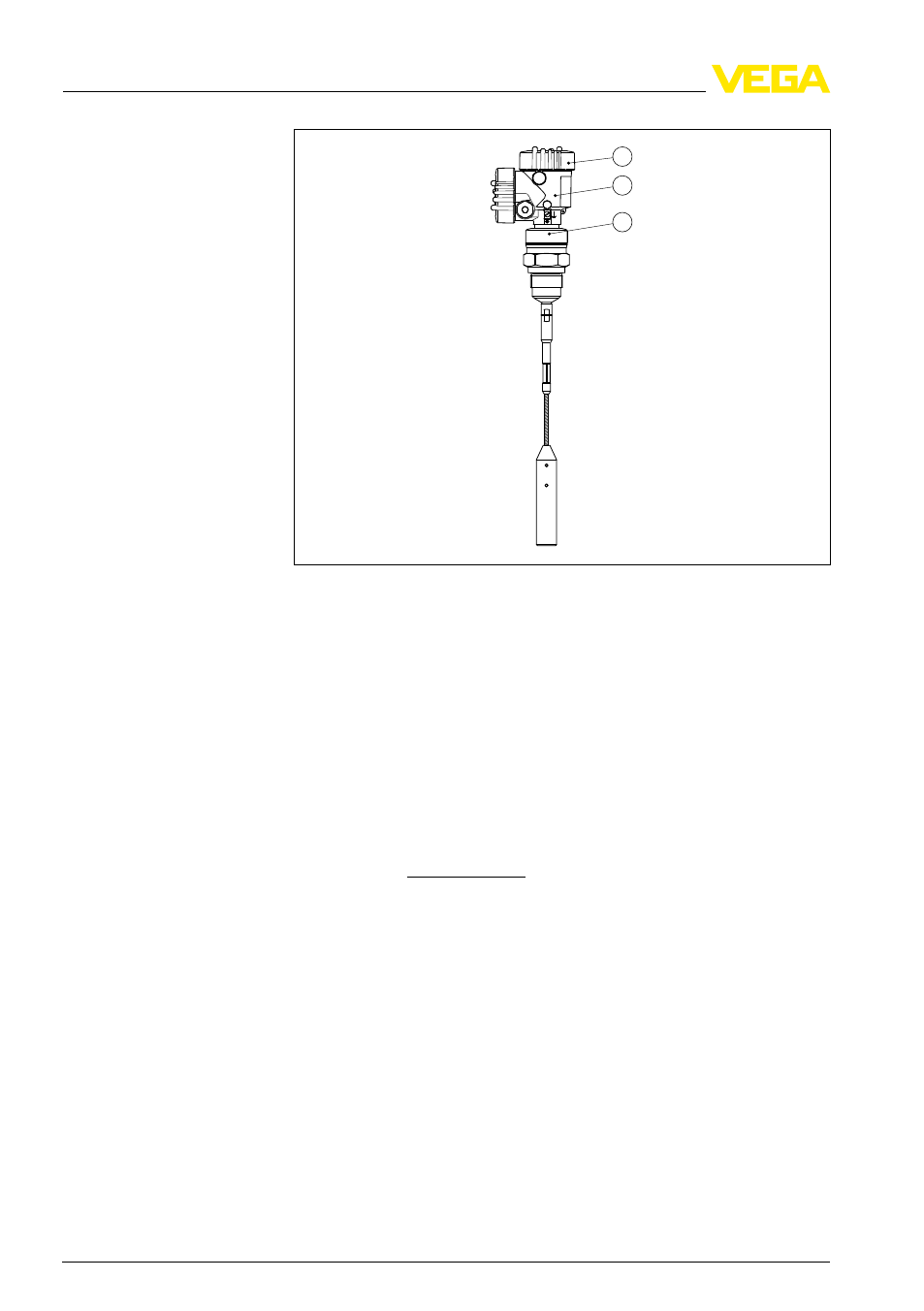

Fig. 1: VEGAFLEX 62 in cable version with plastic housing
1 Housing cover with integrated indicating and adjustment module (optional)
2 Housing with electronics
3 Process fitting
T
he type label contains the most important data for identification and
use of the instrument:
l A rticle number
l S erial number
l T echnical data
l A rticle numbers, documentation
l SIL identification (with SIL rating ex works)
W ith the serial number, you can access the delivery data of the
instrument via www.vega.com, "VEGA Tools" and "serial number
search". In addition to the type label outside, you can also find the
serial number on the inside of the instrument.
3 .2 Principle of operation
VEGAFLEX 62 is a level sensor with cable or rod probe for continuous
level measurement.
I t is designed for industrial use in all areas of process technology and
can be used equally well in liquids or solids.
H igh frequency microwave pulses are guided along a steel rope or a
rod. Upon reaching the product surface, the microwave pulses are
reflected. The running time is evaluated by the instrument and
outputted as distance.
Type label
Application area
Functional principle
8 VEGAFLEX 62 • 4 … 20 mA/HART four-wire
