2
3
1
4
~
=
Power supply
VEGACONNECT 3
PACTware / TM

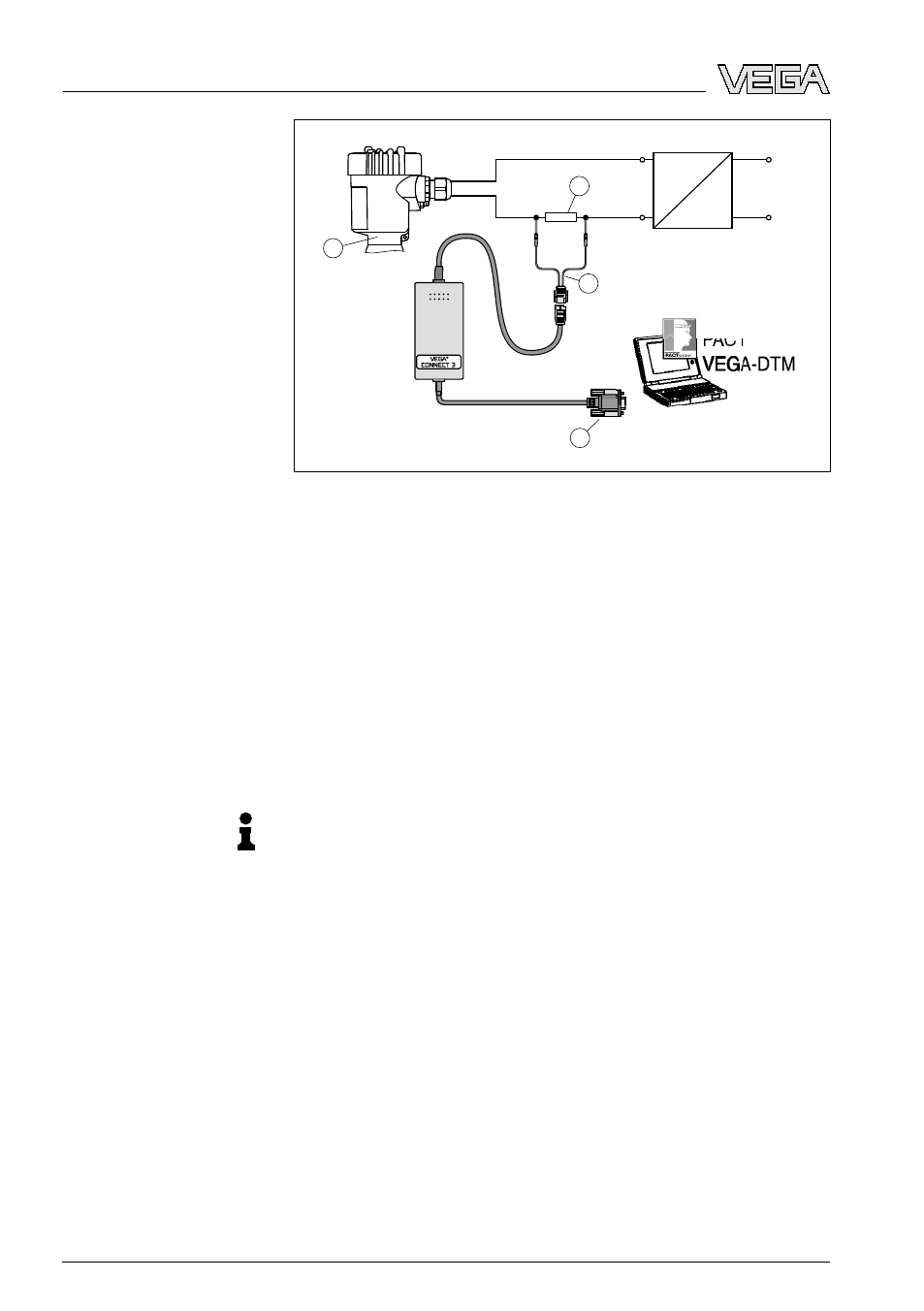

Fig. 23: Connecting the PC via HART to the signal cable
1
RS232 connection
2 VEGAFLEX 66
3 HART adapter cable for VEGACONNECT 3
4 HART resistor 250 Ω
N
ecessary components:
l
VEGAFLEX 66
l
PC
with PACTware and suitable VEGA DTM
l
VEGACONNECT 3 with HART adapter cable (art. no.
2.25397)
l
HART
resistor approx. 250 Ω
l
P ower supply unit
Note:
W
ith power supply units with integrated HART resistance
( internal resistance approx. 250 Ω), an additional external
resistance is not necessary. This applies, e. g. to the VEGA
instruments VEGATRENN 149A, VEGADIS 371, VEGAMET
381). A
lso usual Ex separators are most of the time equipped
with a sufficient current limitation resistor. In such cases,
VEGACONNECT
3 can be connected parallel to the 4 … 20 mA
cable.
7.2 Parameter adjustment with PACTware
F urther setup steps are described in the operating instructions
manual "DTM Collection/PACTware" attached to each CD and
which can also be downloaded from our homepage. A detailed
description is available in the online help of PACTware and the
VEGA DTM
s.
Connection via HART
40 VEGAFLEX 66 • 4 … 20 mA/HART
7 S etup with PACTware and other adjustment programs
