28
9 Supplement
VEGACAP 66 • - Relay (DPDT)
30020-EN-130916
Ʋ Min. 10 mV
Ʋ Max. 253 V AC, 253 V DC
With circuits > 150 V AC/DC, the relay contacts must be
in the same circuit.
Switching current
Ʋ Min. 10 µA
Ʋ Max. 3 A AC, 1 A DC
Breaking capacity
Ʋ Min. 50 mW
Ʋ Max. 750 VA AC, 54 W DC
If inductive loads or stronger currents are switched
through, the gold plating on the relay contact surface will
be permanently damaged. The contact is then no longer
suitable for switching low-level signal circuits.
Contact material (relay contacts) AgNi (Au plated) or AgSnO (Au plated)
Modes (switchable) Min./Max.
Switching delay
Ʋ When immersed 0.7 s
Ʋ When laid bare 0.7 s
Ʋ In case of failure 1 s
Ambient conditions
Ambient temperature on the housing
-40 … +80 °C (-40 … +176 °F)
Storage and transport temperature -40 … +80 °C (-40 … +176 °F)
Process conditions
Process pressure
-1 … 40 bar/-100 … 4000 kPa (-14.5 … 580 psig)
Process temperature VEGACAP 66 of
316L
-50 … +150 °C (-58 … +302 °F)
1
2
3
-50°C
(-58°F)
50°C
(122°F)
40°C
(104°F)
-40°C
(-40°F)
80°C
(176°F)
0°C
(32°F)
100°C
(212°F)
150°C
(302°F)
200°C
(392°F)

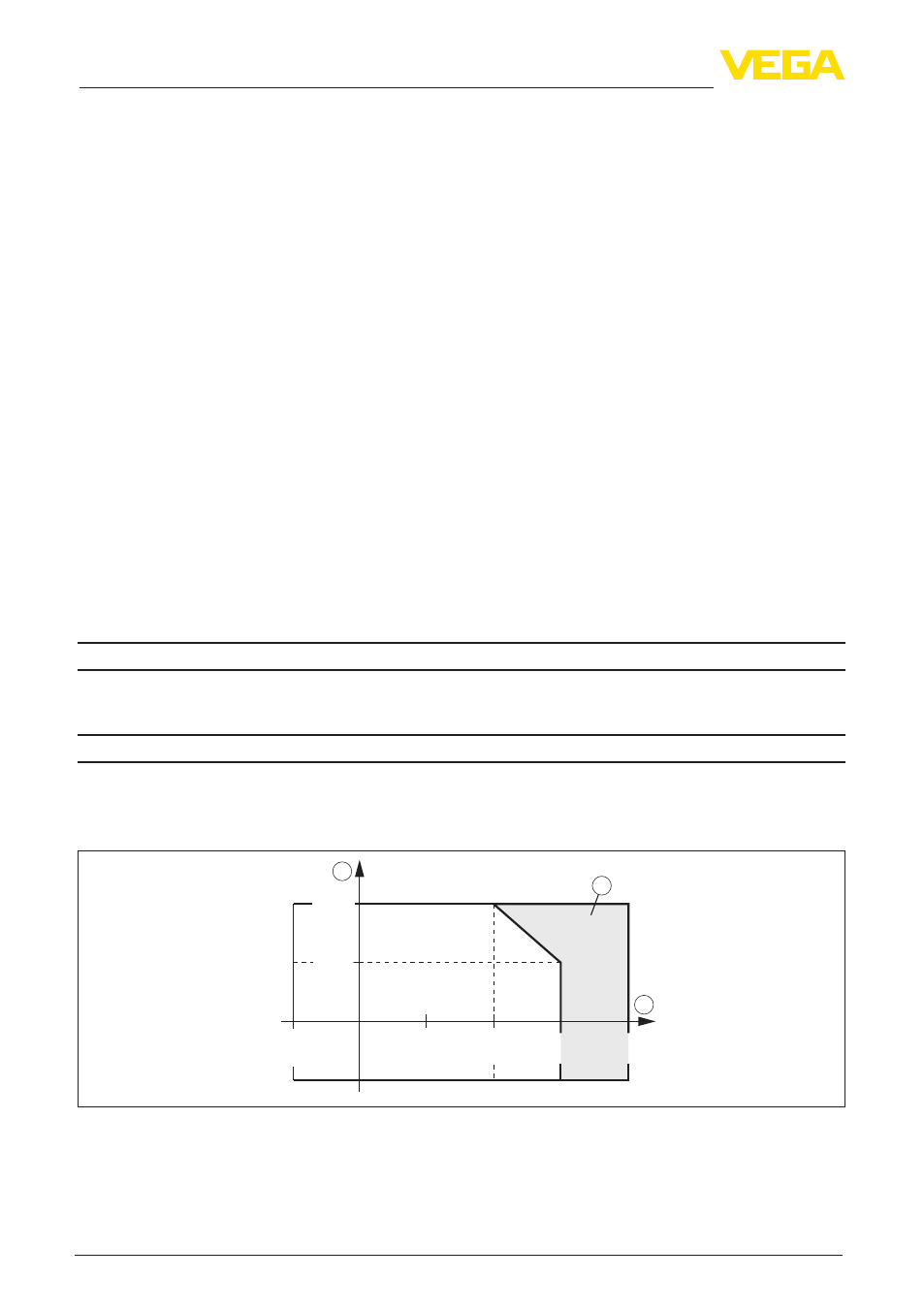

Fig. 32: Ambient temperature - Process temperature
1 Process temperature
2 Ambient temperature
3 Temperature range with temperature adapter
