18
6 Setup with the integrated display and adjustment unit
VEGASCAN 693 • 15-channel HART signal conditioning instrument
29252-EN-130701
•
Internal check of the electronics
•
indication of the instrument type, firmware version as well as the
instrument TAG (instrument name)
•
The output signals jump briefly to the set fault value
After the assignment of the addresses to the sensors, the current
measured values will be displayed and outputted.

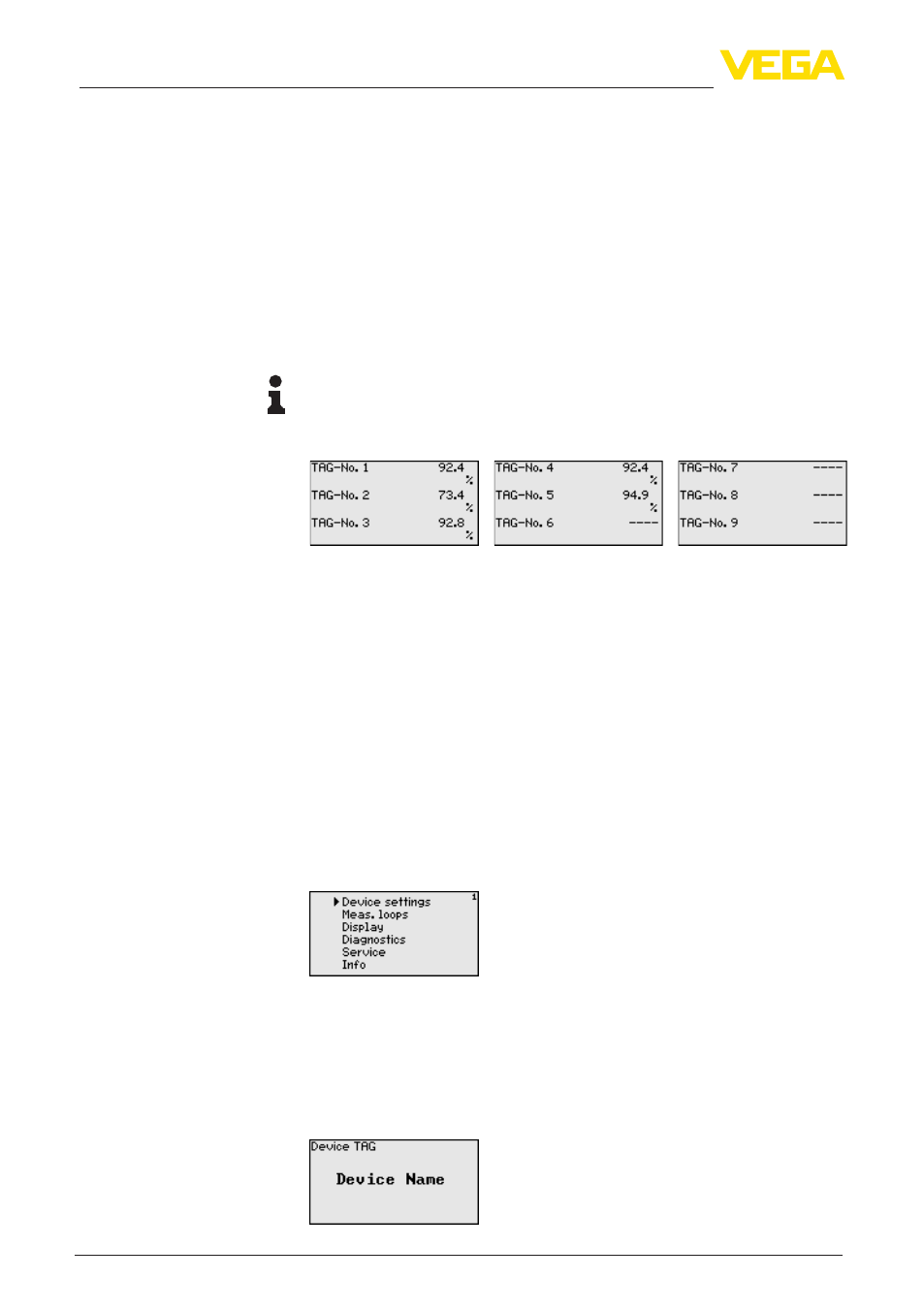

The measured value indication displays three measured values each
in one common window. The digital display value, the measurement
loop name (meas. loop TAG) and the unit are shown. By pushing the
[>] key, you can move to the next three measured values.
Note:
Depending on the configuration and use of all measurement loops,
the cycle time for the measured value transmission can take up to five
seconds.
By pushing [OK] you move from the measured value indication to the
main menu.
The main menu is divided into six areas with the following functions:
•
Device settings: Includes the device-TAG, settings for network
connection such as date/time setting, …
•
Measurement loop: Includes settings for input selection, adjust-
ment, damping, linearization, scaling, …
•
Display: Includes settings to the displayed measured value
•
Diagnosis Includes information to the device status, error mes-
sages
•
Service Includes simulation, reset, PIN, selectable language,
sensor address, …
•
Info: Shows serial number, software version, last change, instru-
ment features, MAC addr., …
→
Select the menu item "Device settings" with [->] and confirm with
[OK].
You can assign an unambiguous name to VEGASCAN 693 via the
Device-TAG. This function is recommended when several instruments
are implemented and a good documentation of larger systems is
required.
Measured value indica-
tion
Main menu
Device settings - Device-
TAG
