22 VEGABAR 21
Tendency
indication
Bargraph
Digital value

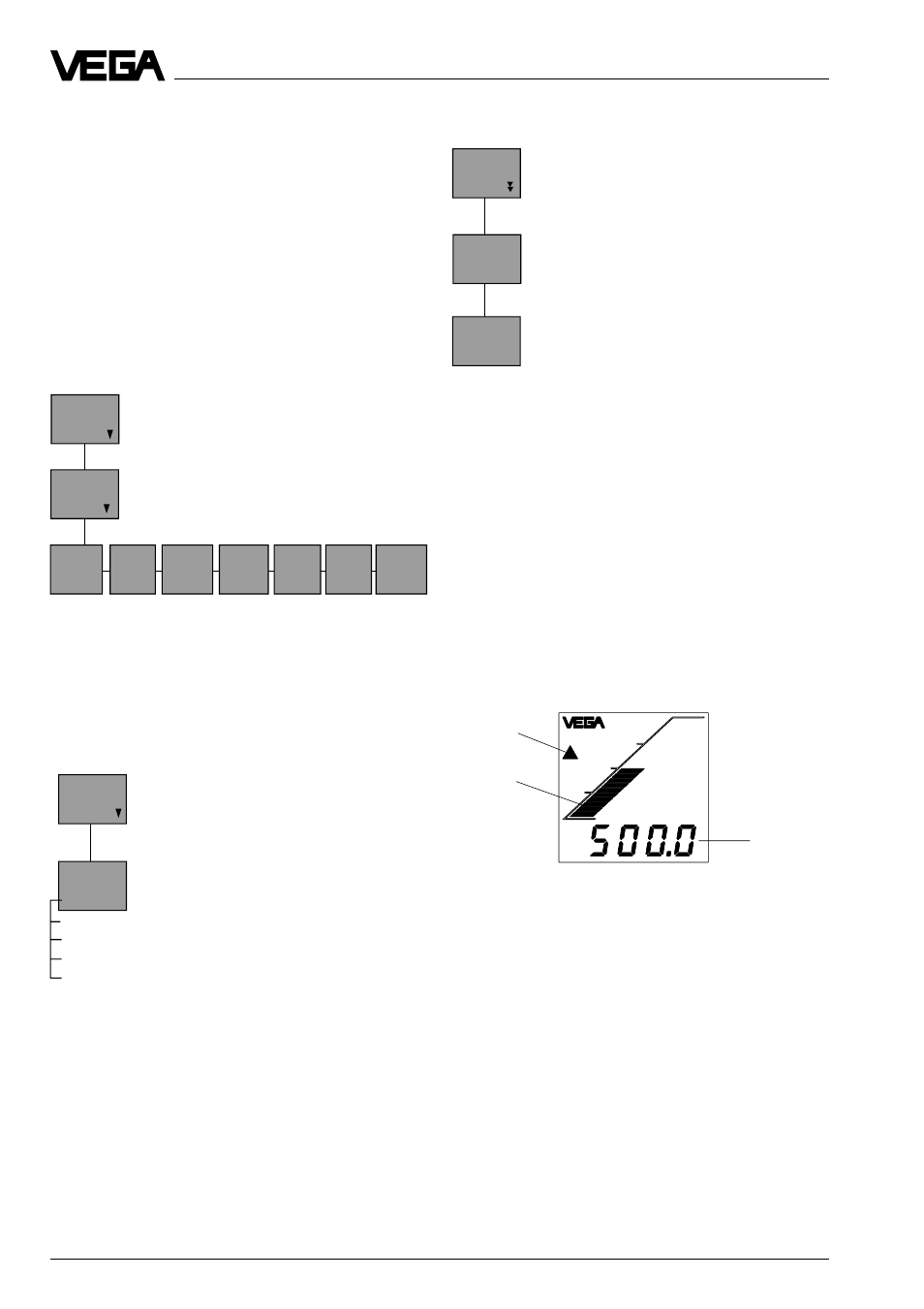

Set-up
Additional functions
Important sensor data can be indicated via
DOT-matrix for information and diagnosis
purposes:
- manufacturing date
- pointer function (p
min
)
- pointer function (p
max
)
- actual temperature value (Temp)
- pointer function (T
min
)
- pointer function (T
max
)
- diagnosis number
Language
As factory setting VEGABAR is
adjusted to the order language.
With the “+“ or “–“-key and the
“OK“-key the languages German,
English, Italian or Spanish can be
chosen.
4.5 Indicating module
Digital value
- 4 digits and decimal point
- with single range and basic function mod-
ule fixed indication range in bar
- the multiple function module can be indi-
vidually scaled.
The connection is made acc. to the scheme in
section “Electrical connection“.
Reset
The reset function deletes the ad-
justed values and resets the param-
eters to the data of the factory set-
ting. The adjustment data
correspond again to the nominal
measuring range.
1) 1) 1) 1)
1) The min. and max.-values can be set to the actual
value by pushing the “+“ and “–“-keys simultane-
ously.
Reset
Reset
OK ?
Reset
Now!
OK ?
Addi-
tional
function
Sensor
data
P max
150
mbar
Herst.
Date
49.98
P min
-0,3
mbar
Diagno-
stic no.
- - -
Temp.
30,7
°C
T min
23,5
°C
T max
36,2
°C
Lan-
guage
Lan-
guage
English
Deutsch
Franc.
Ital.
Español
