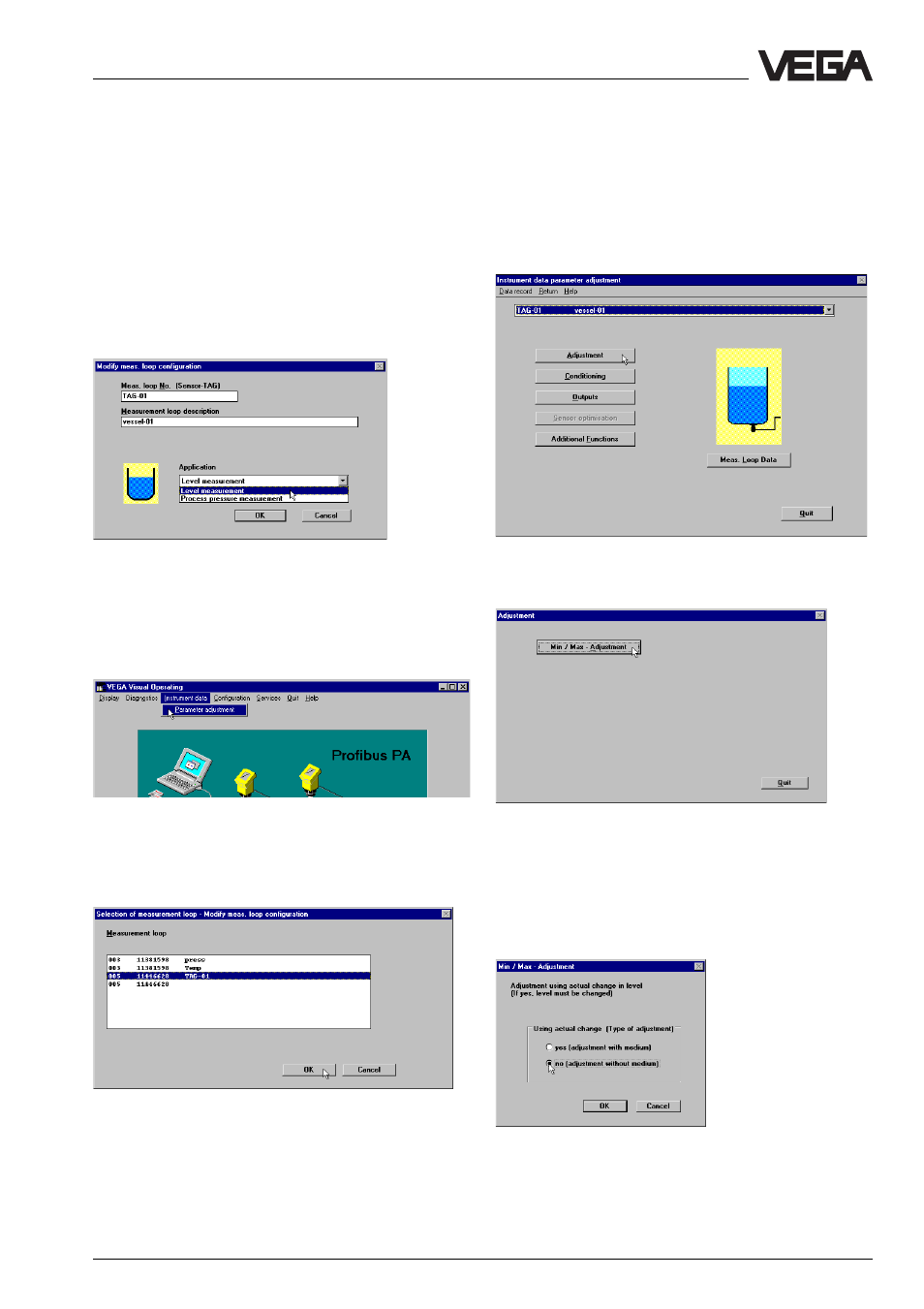

In the window "Modify meas. loop configura-
tion" you can assign a name and a descrip-
tion to the measurement loop. State under
"Application" if you want to create a process
pressure or level measurement. With
OK you
return again to the window "VEGA Visual
Operating". In the following explanations, we
assume that you have chosen the application
"Level measurement". The adjustment "Proc-
ess pressure measurement" differs only
slightly from the following presentation.
Setup
Sensor parameter setting – Adjustment
Click to Instrument data , then to Parameter
adjustment .
Choose the measurement loop in which you
want to make the parameter adjustment and
click to
OK .
From the window "Instrument data parameter
adjustment" you reach all submenus of the
sensor. To get familiar with the available op-
tions, try out the buttons one after the other.
You will automatically return to this window. To
carry out the adjustment, click the button
Adjustment .
Click in the window "Adjustment" to Min/Max
adjustment .
Then in the window "Min/Max adjustment" you
have to choose the type of adjustment. If you
want to carry out the "Adjustment without
taking the actual product into account" (dry
adjustment), click to
no , then to OK .
