Product description
1.5 Type plate
Please check that the correct instrument is
being used before mounting and electrical
connection. Note the type plate which is lo-
cated as follows:
1 Order no. master data
2 Ex-certification number
Explosion protected version - note the
information and conditions in the certificate
3 Electronics data / Approvals
4 No. of the order confirmation/Pos. no.
5 Serial number
6 Test mark when used as par t of an over fill
protection for vessels storing water -endan-
gering liquids - note the information and
conditions of the general type approval
7 Year of manufactur e
8 CE test authority no.
Type plate
The type plate contains important data re-
quired for mounting and connection. The
layout and the parts of the type plate are
explained in the following example.

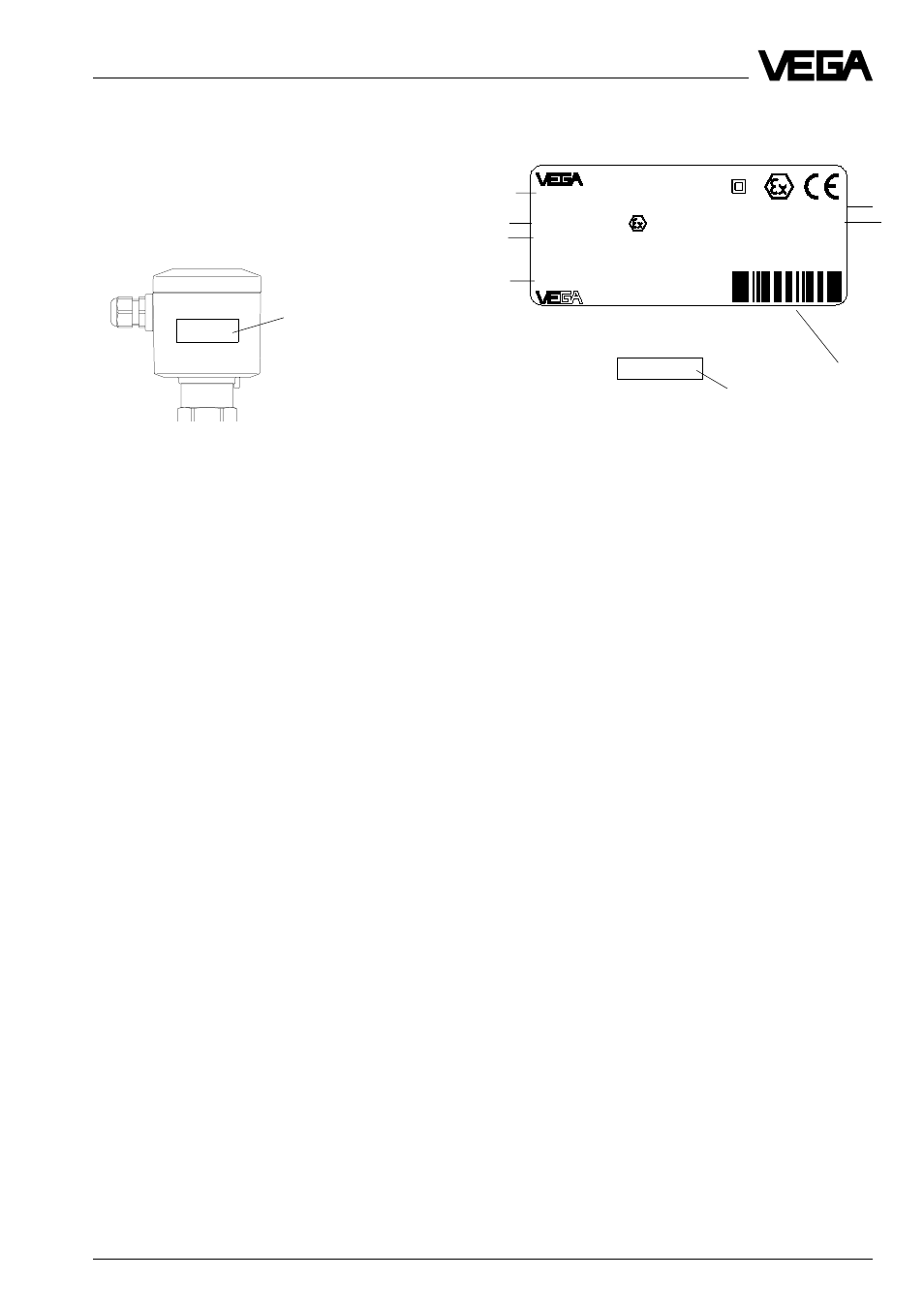

Layout of the type plate (example)
Order code
Detailed information on the order code is
provided in the "Product Information Vibra-
tion“ or in the "VEGA pricelist “.
5
3
1
4
2 7
8
Z-65.13.XXX
6
