10. Cables Requirements
The•maximum•distance•of•the•wiring•is•limited•in•the•DT•system.•Using•different•cables•may•also•affect•the•
maximum•distance•which•the•system•can•reach.•
When Monitor quantity < 20
Cable Usage
A
B
C
Twisted•cable•2x0.75•mm
2
60•
60•
30•
Twisted•cable•2x1•mm
2
80•
80•
40•
When Monitor quantity > 20
Cable Usage
A
B
C
Twisted•cable•2x1•mm
2
70•
30•
20•
Twisted•cable•2x1.5•mm
2
70•
50•
30•

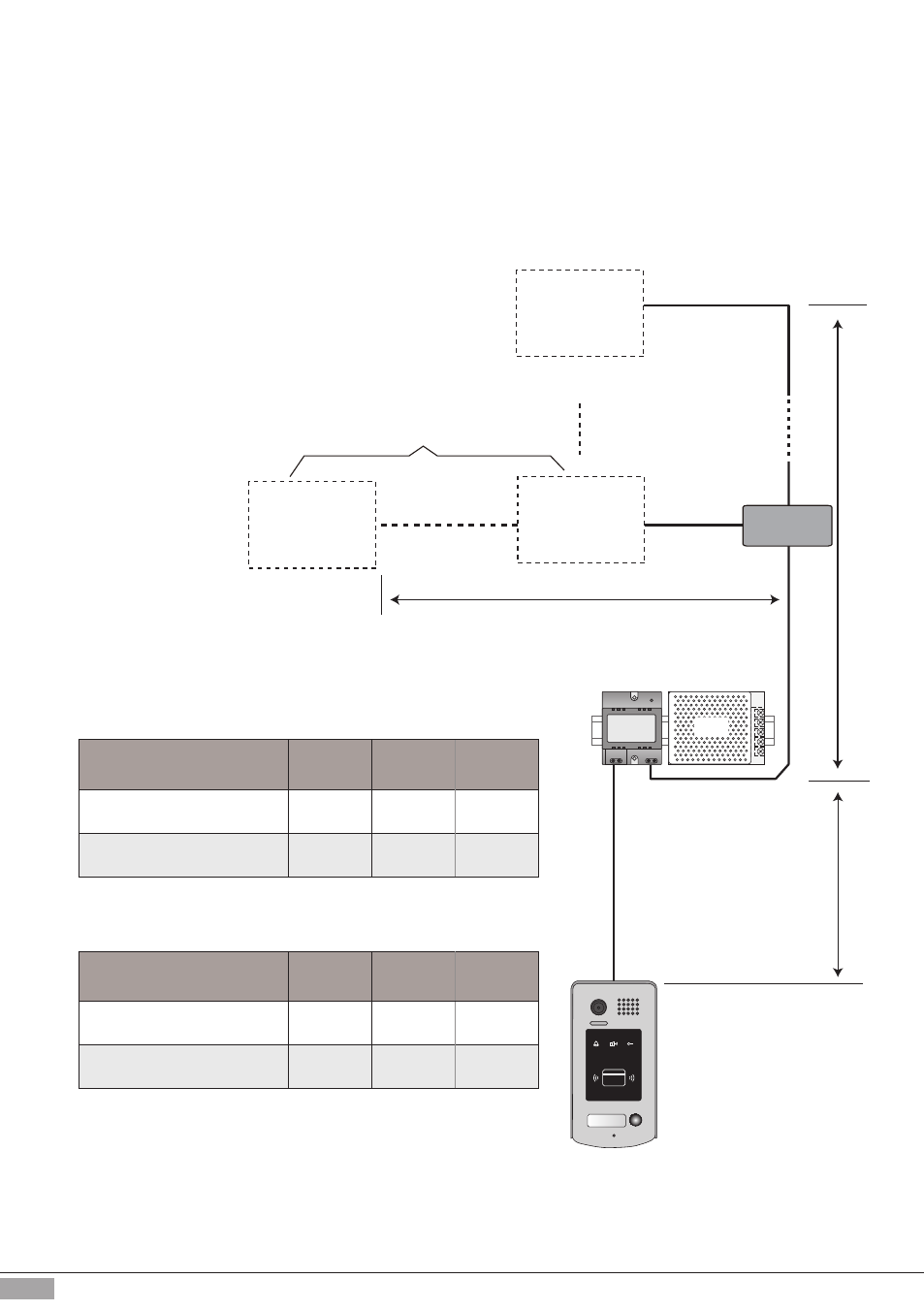

The farest monitor
B
A
C
DPS
PS5
DBC/DBC-4
monitor
monitor
monitor
with two or four monitors
RF CARD
Note:If•the•monitor•has•been•specified•the•distance,refer•to•the•
parameter.
-16-
