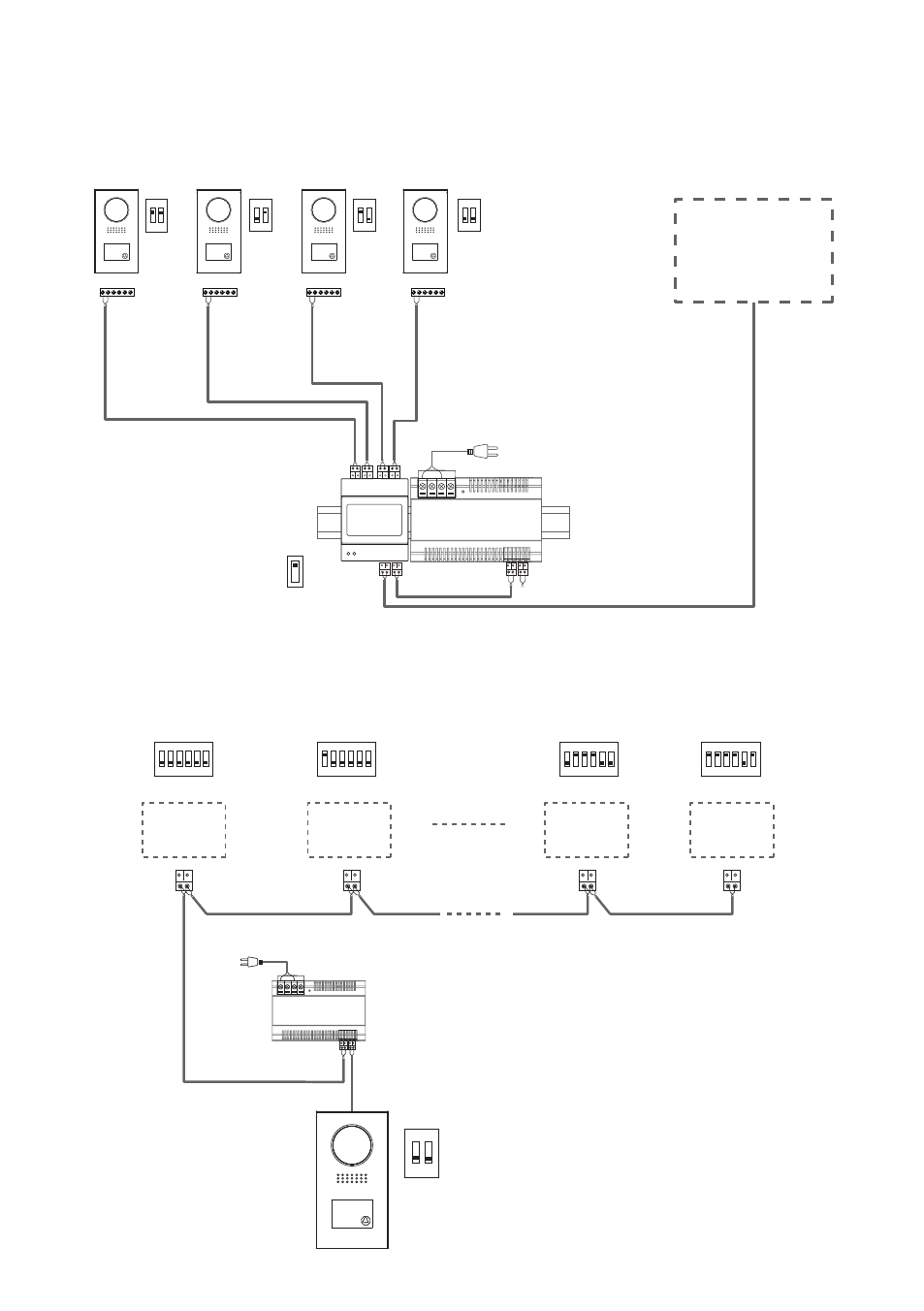

Multi Door Stations Connection

85~260VAC

monitors

Bus PL S1+ S2+ S-

Bus PL S1+ S2+ S-

Bus PL S1+ S2+ S-

Bus PL S1+ S2+ S-

1 2

ON

1 2

ON

1 2

ON

1 2

ON

1# Camera

DIP=on,off,off

ID=00

ID=10

ID=01

ID=11

2# Camera

3# Camera

4# Camera

DBC-4S

A B C D

OFF

ON

Impedance

switch

AC~

PC6

Multi Monitors Connection

monitor

monitor

monitor

monitor

Code=0, DIP-6=off

1 2

3 4 5 6

ON

Code=1, DIP-6=off

1 2

3 4 5 6

ON

AC~

PC6

Code=14, DIP-6=off

1 2

3 4 5 6

ON

Code=15, DIP-6=on

1 2

3 4 5 6

ON

1 2

ON

ID=00
