-4-

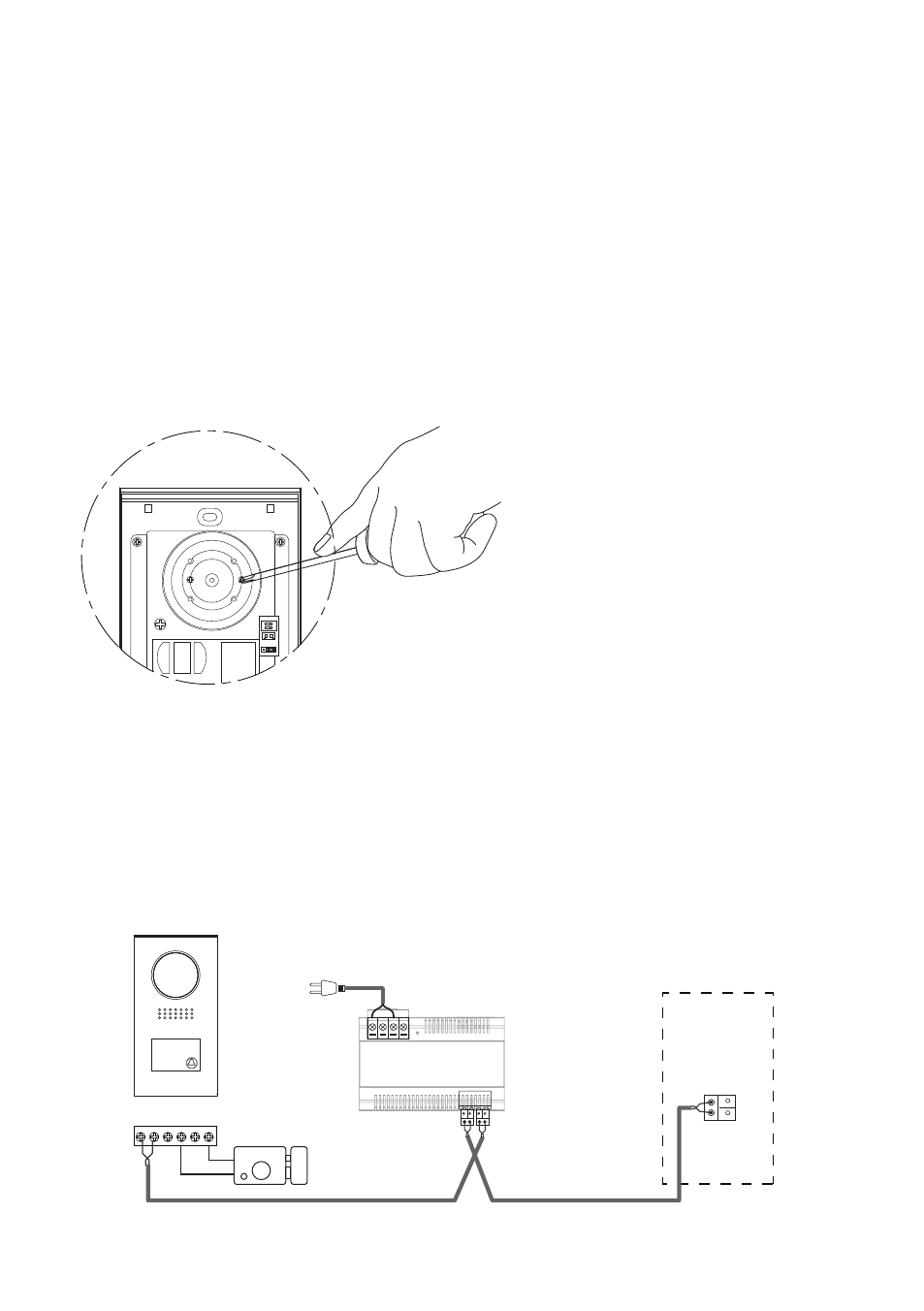

System Wiring and Connections
Bus PL S1+ S2+ S-
-
+
monitor
AC~
PC6
Basic one-to-one Connection
Adjusting Camera Angle
1
2
ON
Use a screwdriver to loosen
the screw and then adjust the
angle of the camera ,then fix
the screw.
The location of the unit should keep away from snow,rain,and intensity light.
Installation Steps:
Installation height for door station usually is 145~160cm.
1. Use screws to fix the back panel and rainy cover(if mounting with rainy
cover) to the wall after connect the cable correctly.
2. Attach the front panel to the back panel, then use the screw to fix it.
