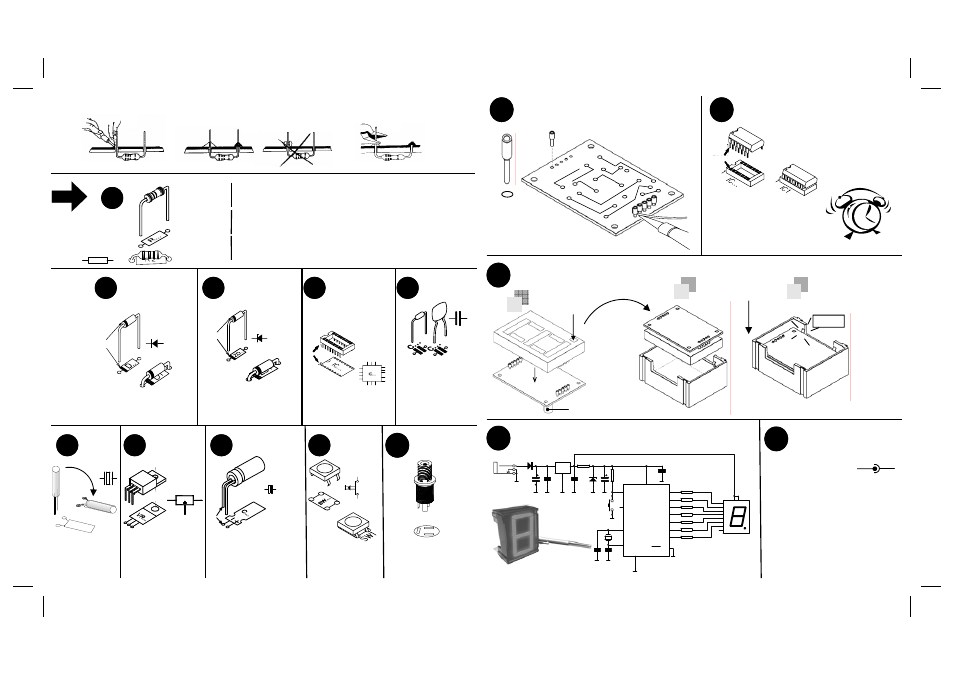

Velleman MK153 - Manual

(Green, Blue, Brown) - (Groen, Blauw, Bruin) - (Vert, Bleu, Brun) - (Grün, Blau, Braun) -
(Grön, Blå, Brun) - (Vihreä, Sininen, Ruskea) -(Marrón, Azul, Marrón) - (Verde, Azul,
Castanho) -(Verde, Blu, Marrone)
Soldering - Solderen - Soudage - Löten - Soldadura - Lödning - Juottami nen - Saldatura - Solda
1 3
max.
40W
◊
R1 : 560
◊
R2 : 10K
◊
R3 ... R9 : 100
2
D...
CATHODE
Watch the polarity !
Att. la polarité !
Diode
(Brown, Black, Brown) -(Bruin, zwart, Brown) -(Brun, noir, Brun) -(Braun, Schwarz, Braun) -
(Brun, Svart, Brun) -(Ruskea, Musta, Ruskea) -(Marrón, Negro, Marrón) -(Castanho, Preto,
Castanho) -(Marrone, Nero, Marrone)
(Brown, Black, Orange) - (Bruin, Zwart, Oranje) - (Brun, noir, Orange) - (Braun, Schwarz,
Orange) - (Brun, Svart, Orange) - (Ruskea, Musta, Oranssi) - (Marrón, Negro, Naranjado) -
(Castanho, Preto, Laranja) - (Marrone, Nero, Aranciato)
START 1
Resistor - Weerstand -
Résistance - Widerstand -
Resistencia - Motstand -
Vastus - Resistenze
R...
2
◊
D1 : 1N4007
ZD...
CATHODE
Watch the polarity !
Att. la polarité !
Zenerdiode 3
◊
ZD1 : 5V1 / 500mW
4 IC-socket
◊
IC1 : 14p
!
5 Capacitors
c...
◊
C1 : 100nF (104)
◊
C2 : 100nF (104)
◊
C3 : 100nF (104)
◊
C6 : 22pF (22)
◊
C7 : 22pF (22)
WATCH THE POSITION
OF THE NOTCH !
ATTENTION A LA
POSITION DE
L’ENCOCHE !
6
Crystal
7
VR...
I O
◊
VR1 : UA7809
Voltage regulator
8
◊
C4 : 100µF / 25V
◊
C5 : 100µF / 25V
Electrolytic capacitor
9
C...
- !
Watch the polarity !
Attention à la polarité !
◊
X1 : 32,76kHz.
X...
X...
X...
SW...
◊
SW1 : KRS0610
◊
SK1 : 9 - 12VDC / 150mA
Push button
10
Tulip pinheader
11
◊
10x
!
IC
12
◊
IC1 : PIC16F630
WATCH THE POSITION
OF THE NOTCH !
ATTENTION A LA POSITION
DE L’ENCOCHE !
13 Assembly
Click !!
DC female plug
decimal point
1
2 3
14 Diagram
RB5/OSC1/CLKIN 2
RB3/MCLR/Vpp 4
RC5/T0CKI 5
RC4 6
RC3 7
RB4/OSC2/CLKOUT 3
RB0 13
RB1 12
RB2 11
RC2 8
RC1 9
RC0 10
VD
D
1
VS
S
14
IC1
PIC16F630
R3
100 R4
100 R7
100 R8
100 R9
100 R6
100 R5
100
GND
SW1
SET
GND
C1
100n
GND
a 7
b 6
c 4
d 3
e 2
f 9
g 10
DP 8
A
1
A
5 DY1
A-2301SR
R2
10K
GND
SW
-
+
SK1
DC JACK C3
100n C2
100n
GND GND
C4
100µ
GND
X1
32.762
C7
22p C6
22p
GND GND
D1 1N4007
GND
GND
I O GN
D
VR1
UA7809
R1
560
ZD1
5V1
GND
C5
100µ
GND
15 Manual
Connect a 9 - 12V DC
power supply
To blank display : short press.
To show time : press again
◊
To set clock : Hold button. First digit
blinks.
◊
Repeatedly press button to set digit.
◊
Hold button to set next digit.
◊
When all digits are set, 'P' is displayed.
◊
Press button briefly to start clock.
DC female plug
Solder carefully !
Watch for solder bridges!
+ -
