Velleman К8067 User Manual
Page 6
6
R1 : 10K (1 - 0 - 0 - 2 - 1)
R2 : 10K (1 - 0 - 0 - 2 - 1)
R3 : 10K (1 - 0 - 0 - 2 - 1)
R4 : 10K (1 - 0 - 0 - 2 - 1)
R5 : 200K (2 - 0 - 0 - 3 - 1)
R6 : 200K (2 - 0 - 0 - 3 - 1)
R7 : 200K (2 - 0 - 0 - 3 - 1)
R8 : 200K (2 - 0 - 0 - 3 - 1)
R9 : 100 (1 - 0 - 0 - 0 - 1)
R10 : 100 (1 - 0 - 0 - 0 - 1)
R11 : 100 (1 - 0 - 0 - 0 - 1)
2. Metal film resistors
R...

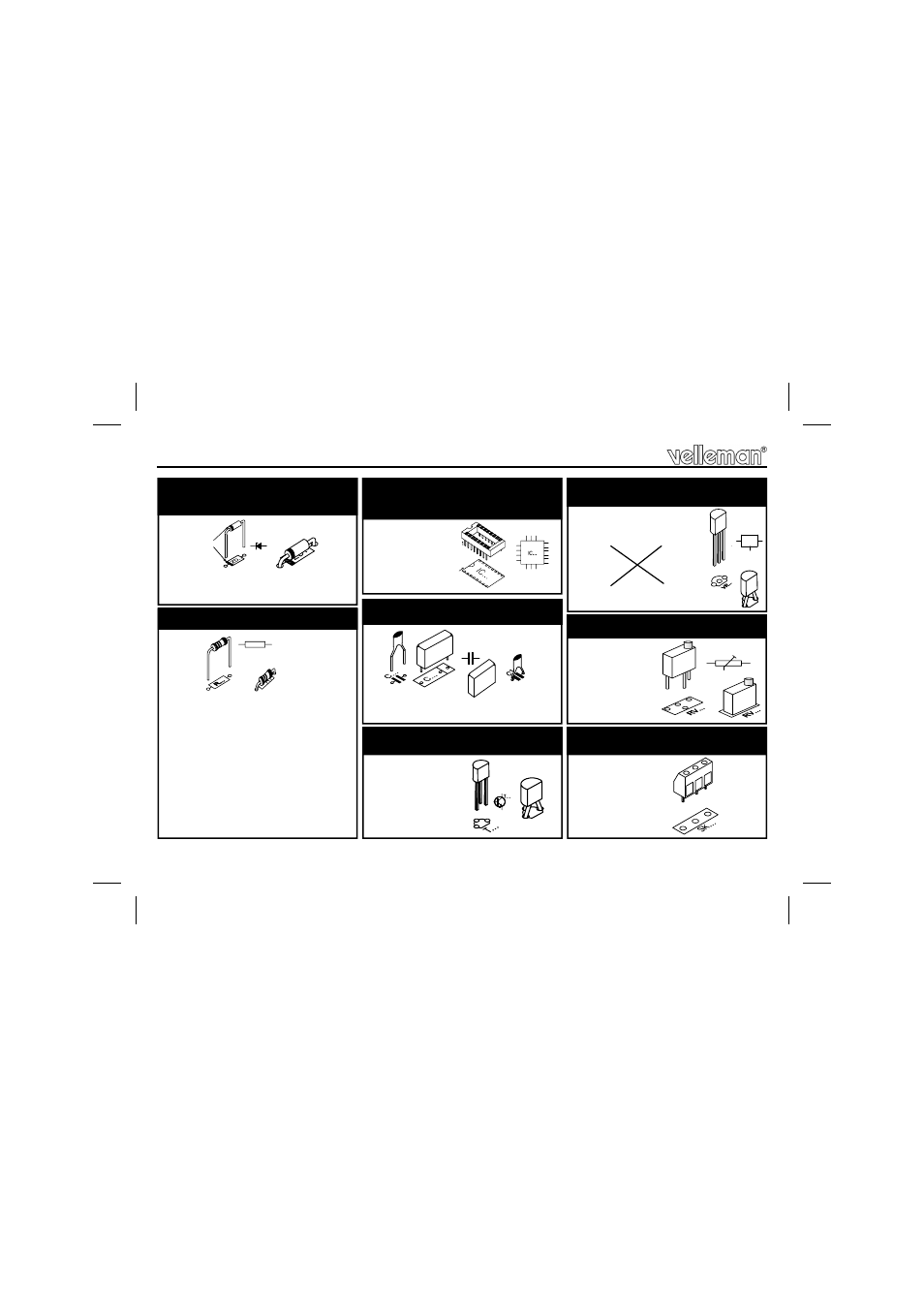

Construction
IC1 : 14P
3. IC socket,
Watch the
position of the notch !
C1 : 100nF (104)
4. Capacitors.
C...
ZD1 : 12V0 - 500mW
1. Zenerdiode. Watch the
polarity !
ZD...
CATHODE
T1 : BC547
T2 : BC557
5. Transistors
VR1 : LM385 - 2.5 !!!
LM335
6. Voltage reference
RV1 : 10K
7. Multiturn trimmer
R V ...
SK1 : 3p
8. Terminal block.
VR...
