9
SET-UP
Transmitter
(1) Relay action output set-up
Each relay can be individually configured to behave as a toggle (ON/OFF) or as a pulse contact.
Hold ‘shift’ until the LED on the remote lights to enter the ‘set-up’-mode then press ‘1’ to enter output setup mode :
Press a button (1..8) to change the function of the corresponding output:
•
LED flashes once: pulse mode,
•
LED flashes twice: toggle mode.
Next, press ‘shift’ several times until the LED turns off to leave setup mode (*).
(2) Card address selection set-up (see also page 10)
In order to operate multiple units in close proximity without interference, each unit must have a unique address.
8 addresses are available, default address is 1.
>> > First make sure the card is powered see page 5 !
How to check the current address:
Hold ‘shift’ until the LED lights to enter the ‘set-up’-mode.
Press ‘2’ to display the current address, the relay LED's LD5..LD8 indicate current address (see table).
Next, press ‘shift’ several times until the LED turns off to leave setup mode (*).
How to change the address:
Hold ‘shift’ until the LED lights to enter the ‘set-up’-mode.
Press ‘3’ to allow address change, pressing a button (1..8) will change the address of the remote and the relay card
(see table).
Next, press ‘shift’ several times until the LED turns off to leave setup mode (*).
If more than one transmitter is used, please repeat point 2 using the other transmitter
Attention: All active cards will respond to this command. Remove power from cards which do not need to change their address.
(*) NOTE: If no button is pushed for about 15s, the unit will leave ‘setup’-mode automatically.

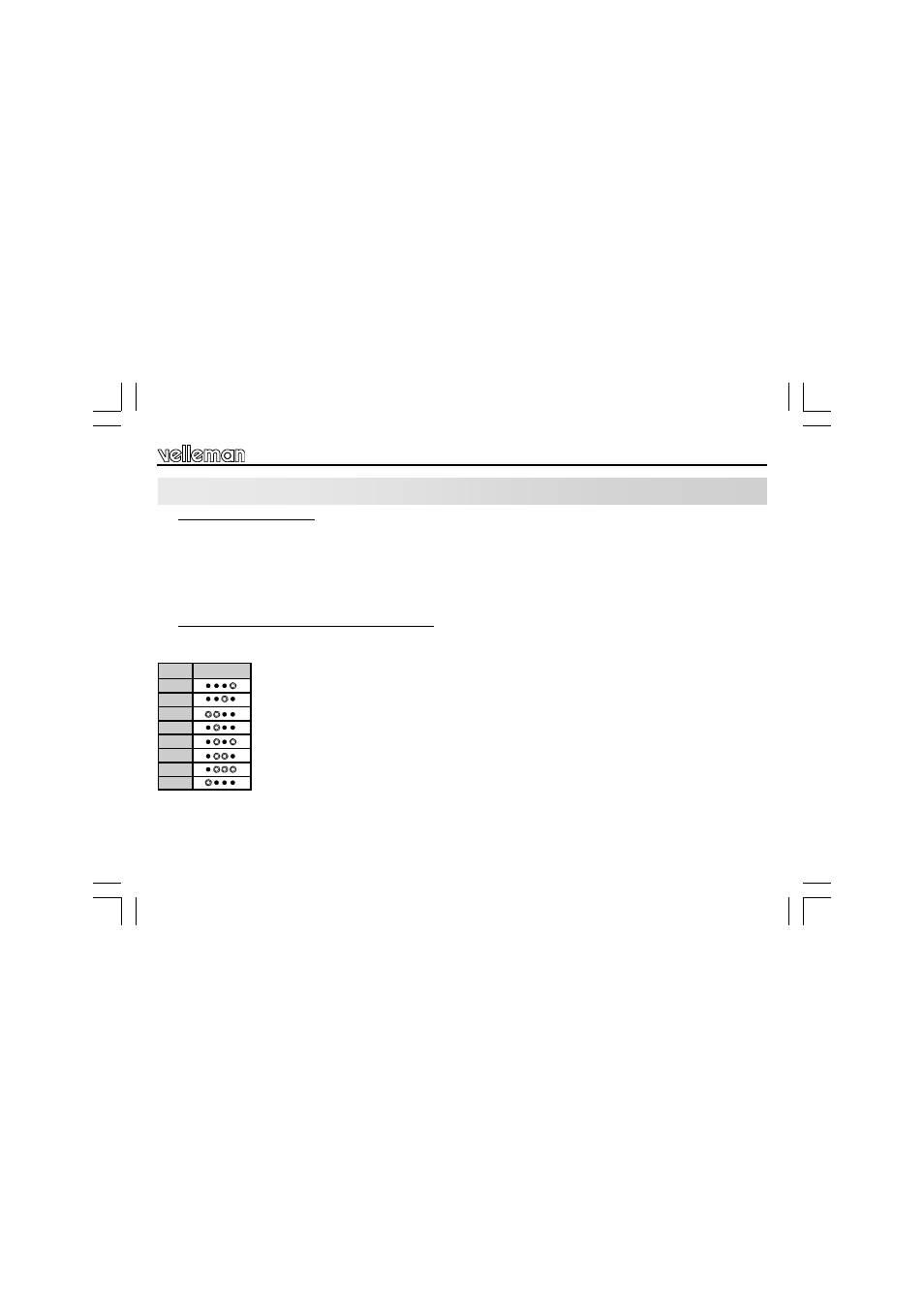

Addr LD5 ... LD8
1
2
3
4
5
6
7
8
