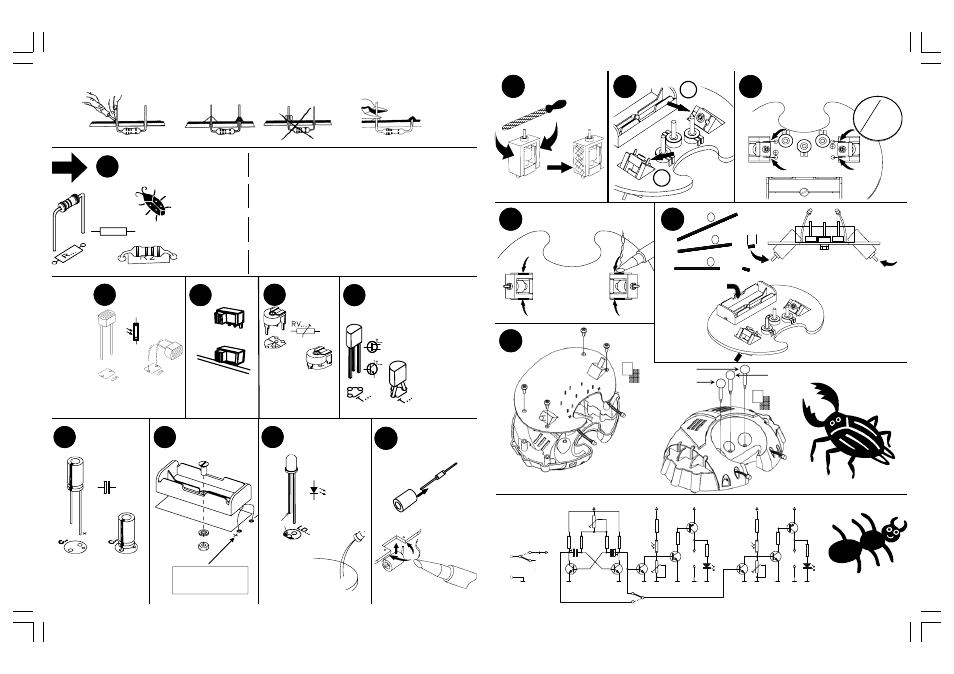

Velleman MK165 User Manual
Velleman Hardware
Soldering - Solderen - Soudage - Löten - Soldadura - Lödning - Juottami nen - Saldatura - Solda
1
3
max.
40W
2
START
6
7
8
ELECTROLYTIC
◊
LDR1
◊
LDR2
LED
Battery holder
◊
SW1
◊
SW2
R...
Resistor -
Weerstand -
1
(Brown, Black, Brown) -(Bruin, zwart, Brown) -(Brun, noir, Brun) -(Braun, Schwarz,
Braun) -(Brun, Svart, Brun) -(Ruskea, Musta, Ruskea) -(Marrón, Negro, Marrón) -
(Castanho, Preto, Castanho) -(Marrone, Nero, Marrone)
(Red, Red, Brown) -(Rood, Rood, Bruin) -(Rouge, Rouge, Brun) -(Rot, Rot, Braun) -
(Röd, Röd, Brun) -(Punainen, Punainen, Ruskea) -(Rojo, Rojo, Marrón) -(Encarnado,
Encarnado, Castanho) -(Rosso, Rosso, Marrone)
(Brown, Black, Orange) -(Bruin, Zwart, Oranje) -(Brun, noir, Orange) -(Braun,
Schwarz, Orange) - (Brun, Svart, Orange) -(Ruskea, Musta, Oranssi) -(Marrón,
Negro, Naranjado) -(Castanho, Preto, Laranja) - (Marrone, Nero, Aranciato)
(Brown, Black, Red) -(Bruin, Zwart, Rood) -(Brun, Noir, Rouge) -(Braun, Schwarz,
Rot) -(Brun, Svart, Röd) -(Ruskea, Musta, Punainen ) -(Marrón, Negro, Rojo) -
(Castanho, Preto, Encarnado) - (Marrone, Nero, Rosso)
2
LDR
LDR
3
Switch
4
Hor. trimmer
◊
RV1 : 22K (25)
◊
RV2 : 10K
◊
RV3 : 10K
TRANSISTOR
◊
T1 : BC547C
◊
T2 : BC547C
◊
T3 : BC547C
◊
T4 : BC547C
◊
T5 : BC547C
◊
T6 : BC547C
◊
T7 : BC557C
◊
T8 : BC557C
5
C...
◊
C1: 22µ F
◊
C2: 22µ F
Watch the polarity !
Att. à la polarité !
Red-Rood-Rouge-Rot-
Röd-Punainen-Rojo-
Encarnado-Rosso
LD...
CATHODE
Watch the polarity !
Att. à la polarité !
◊
LD1
◊
LD2
JUMPER
11
9
10
12
+
+
13
14
DIAGRAM
2 x AAA battery
5mm
1
2
3
T2
BC547C
T1
BC547C
R1
1K
R4
10K
R3
10K
R2
1K
C1
22µ
C2
22µ
RV1
22K
GND
GND
T3
BC547C
GND
RV2
10K
GND
LDR1
R5
100
T4
BC547C
GND
R6
100
T7
BC557C
GND
-M1
+M1
GND
LD1
R9
220
+V
+V
+V
T5
BC547C
GND
RV3
10K
GND
LDR2
R7
100
T6
BC547C
GND
R8
100
T8
BC557C
GND
-M2
+M2
GND
LD2
R10
220
+V
+V
SW2
SW1
+V
+
-
GND
Battery
D1
1N4007
GND
~~~/---
ON/OFF
SPEED
15
1
2
M
K
165
m
anual
- edi
ti
on 1
(revi
s
io
n2)
DIODE
Right sensitivity
Speed
Left sensitivity
◊
R1,R2 : 1K
◊
R3,R4 : 10K
◊
R5,R6,R7,R8 : 100
◊
R9,R10 : 220
