Velleman VM122 User Manual
Page 6
6

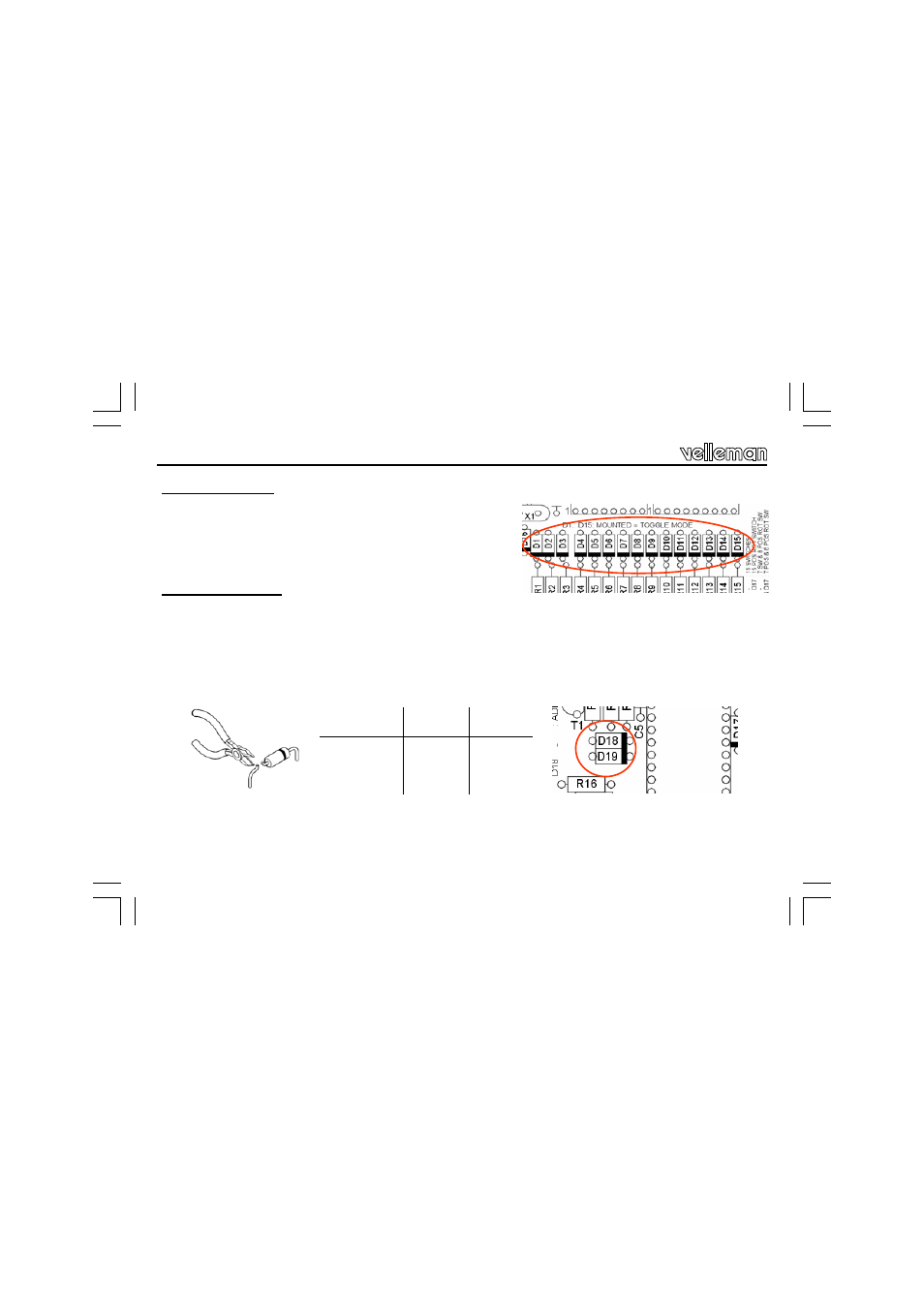

output & address selection
ADDRESS
SELECTION
D18 D19
1
Cut Cut
2
Cut
Do not Cut
3
Do not cut
Cut
OUTPUT SELECTION :
All outputs are toggle outputs by default.
To obtain a momentary output (pushbutton functionality), cut the
corresponding diode (D1...15).
For example: if you want to make output 5 a momentary instead of a
toggle output, cut or remove diode D5.
ADDRESS SELECTION :
Different possibilities in conjunction with diode setup:
The address selection allows you to operate up to 3 receivers in the same room without interference. Each receiver shall
have its own address setting.
HINT: 3 receivers in the same room gives you 45 outputs thanks to address setting.
DEFAULT MODE : 3
ATTENTION: the receivers can only be operated by a transmitter allowing address setting. For the setting of the
transmitter, we refer to the manual of VM121.
