Velleman EDU02 User Manual
Page 11
11
www.vellemanprojects.com
Required parts: Solar cell, 100 ohm resistor (brown black brown gold), yellow led,
microcontroller (µC), wire jumper.

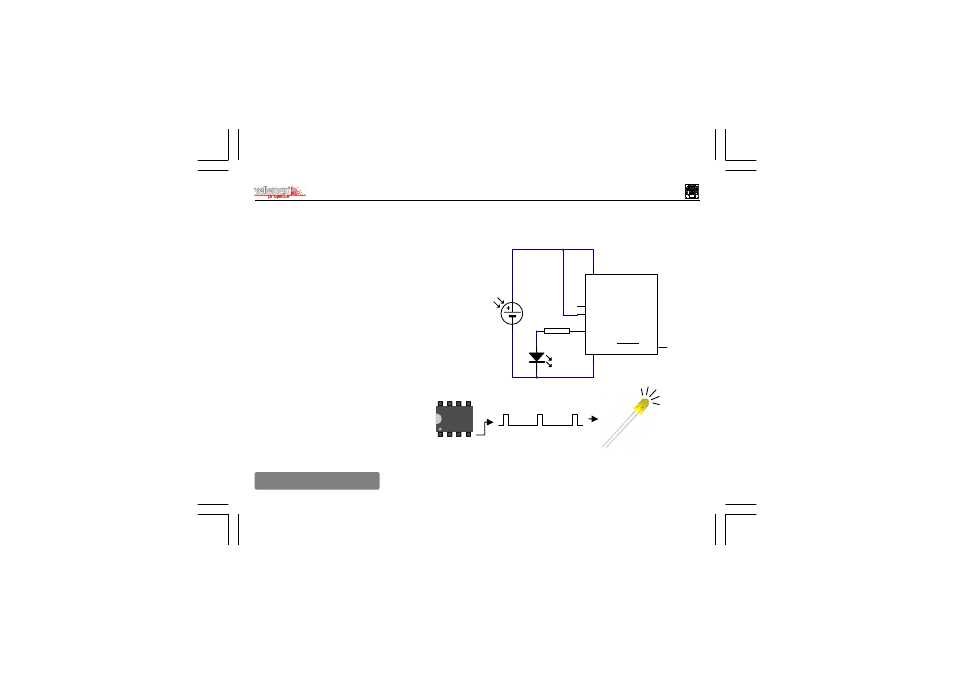

How it works: The controller
requires 2-5V to operate. This
voltage is supplied by the solar
panel. The microcontroller is
pre-programmed with software
that turns the output on and off
in a loop. The signal is output
via pin 4. When the output is
on, current flows via the led and
the resistor, hereby causing the
led to light.
µC
SOLAR CELL
VD
D
2
VS
S
7
GP3/MCLR/VPP
8
GP2/T0CLKI/FOSC4
3
GP1/ICSPCLK
4
GP0/ICSPDAT
5
IC1
PIC10F200-I/PG
LD1
R1
100
