- 89 - Appendix
C. Configuring S/PDIF Out:
The S/PDIF Out jacks can transmit audio signals to an external decoder for decoding to get the best audio
quality. To output S/PDIF digital audio signals to an external decoder, connect a S/PDIF coaxial cable or a
S/PDIF optical cable (either one) to the optical/coxial S/PDIF out connector on the motherboard back panel (or
on the optional S/PDIF In and Out cable).

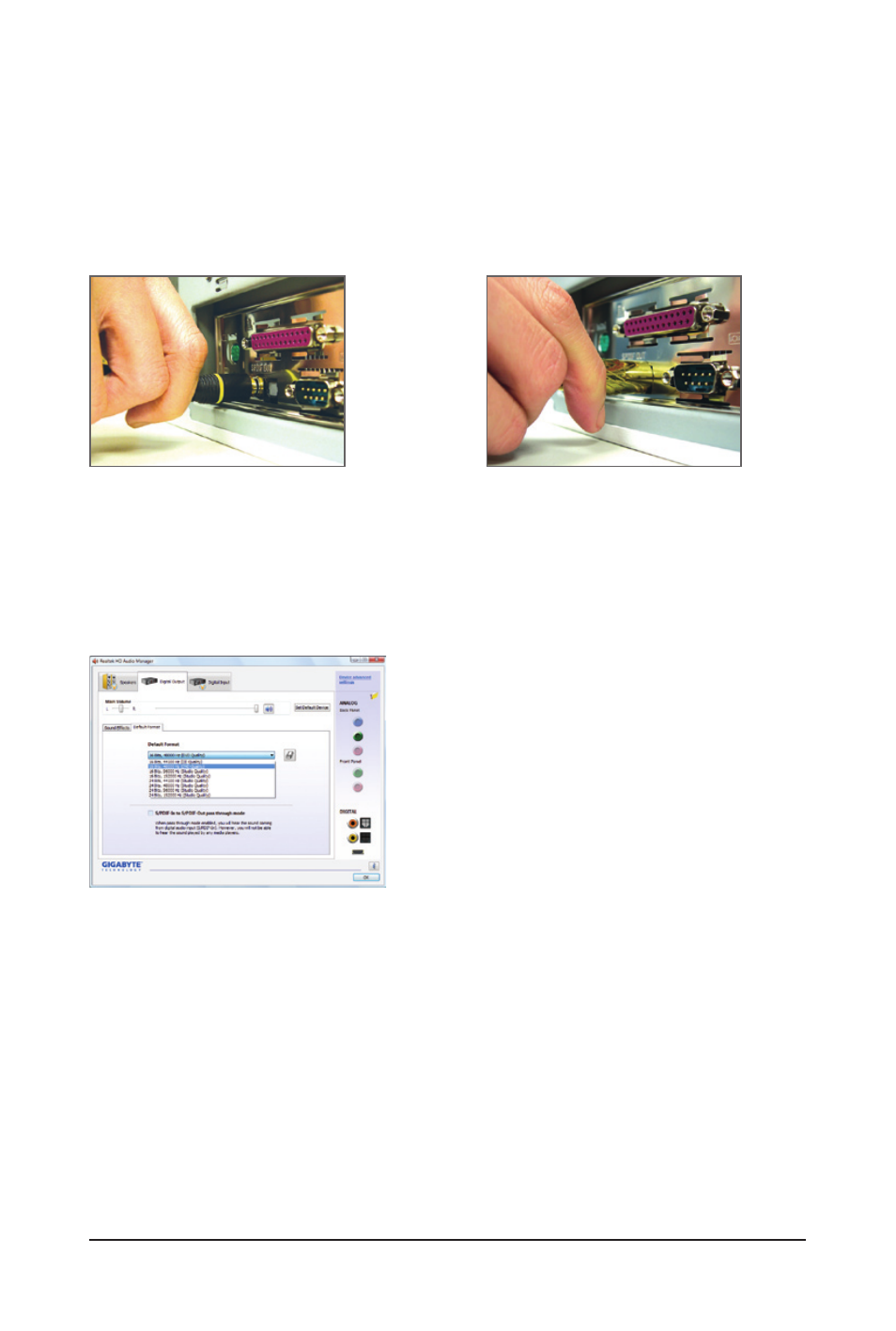

C-1. Conneting a S/PDIF Out Cable:
C-2. Configuring S/PDIF Out:
Step:
On the Digital Output screen, click the Default Format tab and then select the sample rate and bit depth.
Click OK to complete.
S/PDIF Coaxial Cable S/PDIF Optical Cable
