Appendix - 88 -

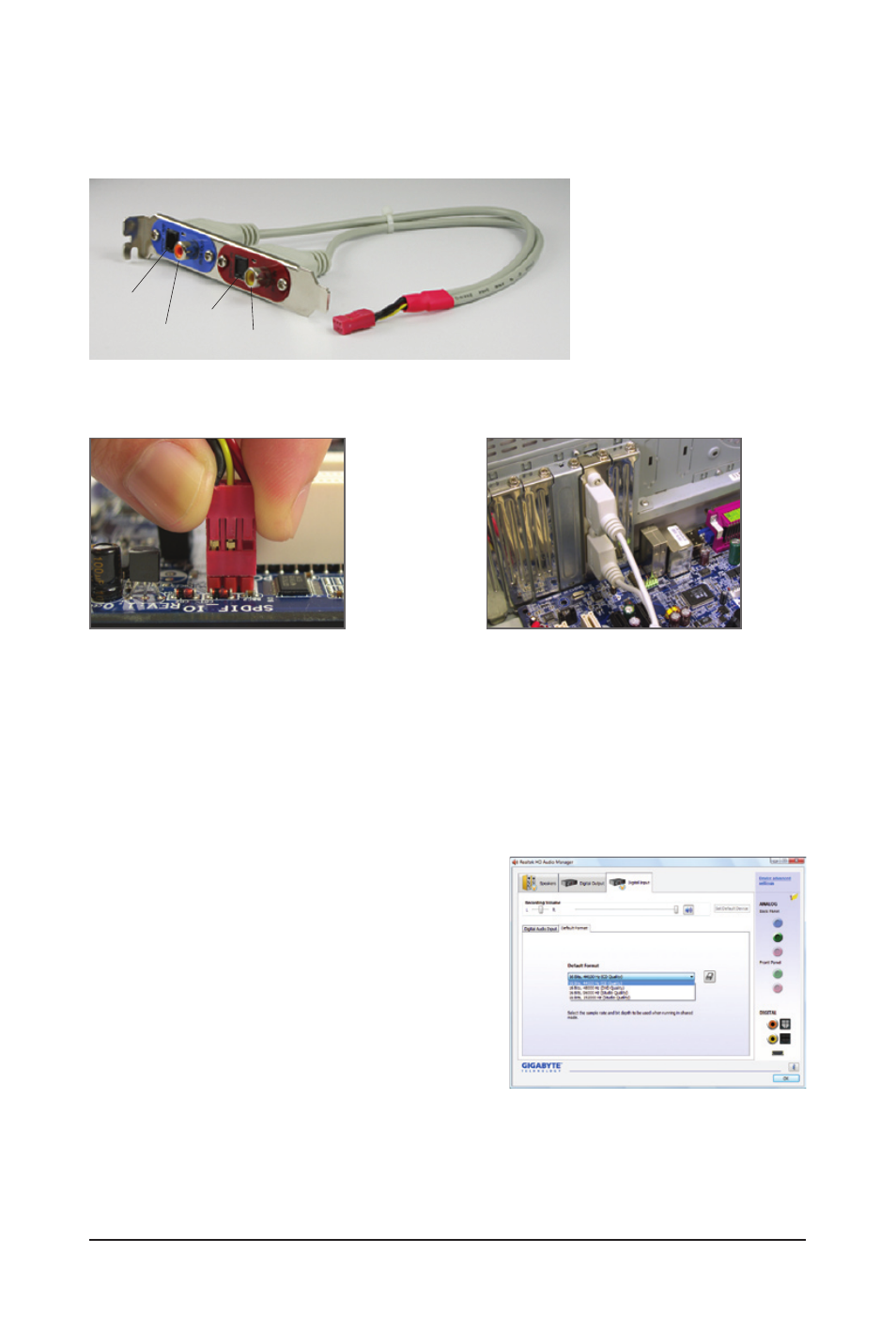

5-2-2 Configuring S/PDIF In/Out
The S/PDIF In and Out cable (optional) provides S/PDIF In and S/PDIF Out functionalities.
(Note) The actual locations of the SPDIF In and SPDIF Out connectors may differ by model.
Coaxial
S/PDIF Out
Optical
S/PDIF Out Optical
S/PDIF In
Coaxial
S/PDIFIn
Step:
After connecting the S/PDIF In device, access the Digital In-
put screen. Click the Default Format tab to select the default
format. Click OK to complete.
A. Installing the S/PDIF In and Out Cable:
B. Configuring S/PDIF In:
The S/PDIF In jacks on the SPDI/F In and Out cable allow you to input digital audio signals to the computer
for audio processing.
Step 1:
First, attach the connector at the end of the cable
to the SPDIF_IO header on your motherboard. Step 2:
Secure the metal bracket to the chassis back
panel with a screw.
