Renata SA 346 - Manual

346
SR712SW
Watch Battery OEM
Rev. 346MF_OEM.02 11.2012
Renata SA Tel. +41 (0)61 975 75 75 [email protected]
CH-4452 Itingen/Switzerland Fax. +41 (0)61 975 75 95 www.renata.com
Technical Data Sheet
Specifications
Chemical system Zinc / Monovalent Silver Oxide, low drain
Nominal Voltage 1,55 V
Capacity 9,5 mAh, Discharge over 47 kΩ at 23±3°C to 1,2 V
Operating Temperature 0°C – 60°C
Self Discharge Less than 10% per year at 20°C
Weight ~0,24 g

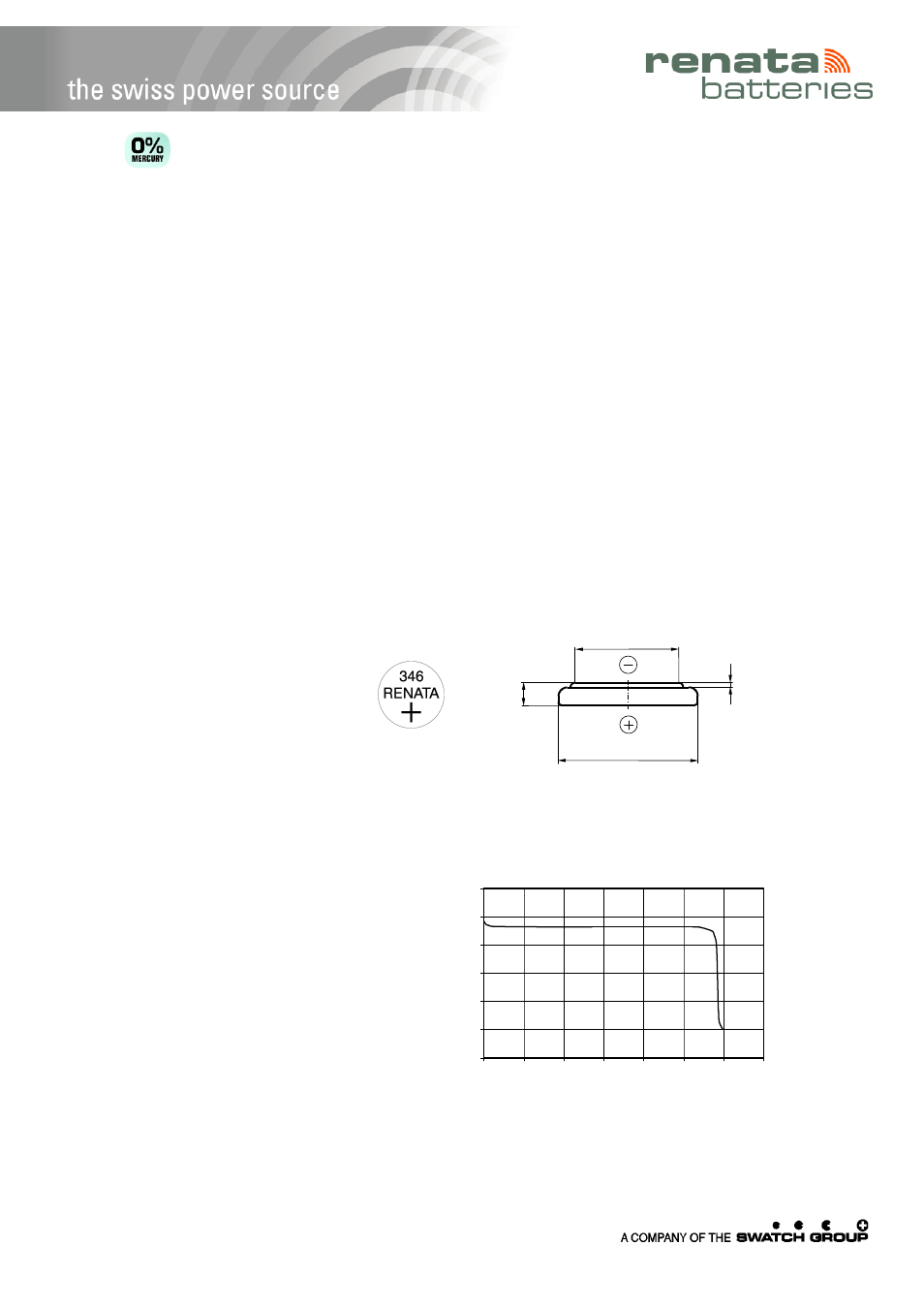

Dimensions
(according IEC 60086-3)
Diameter
Height 7,90 mm (0,311“)
1,25 mm (0,049“)
Discharge Curve
Constant Load
Starting Drain
Temperature 47 kΩ
32.5 µA
23±3°C
Information and contents in this data sheet are for reference purpose only. They do not constitute any warranty or representation
and are subject to change without notice. For most current information and further details, please contact your Renata representative.
min. ∅ 3,5
∅ 7,9
0
-0,15
1
,2
5
0
-0
,1
5
min. 0,02
1.1
1.2
1.3
1.4
1.5
1.6
1.7
0 50 100 150 200 250 300 350
Time [h]
V
o
lt
a
g
e
[
V
]
