ICP621333PA
Rechargeable Lithium Ion Polymer Battery Pack 3.7 V
Safety Circuit, Wire
Rev. Li Ion ICP621333- 11.09
Renata SA Tel. +41 (0)61 975 75 75 [email protected]
CH-4452 Itingen/Switzerland Fax. +41 (0)61 975 75 95 www.renata.com

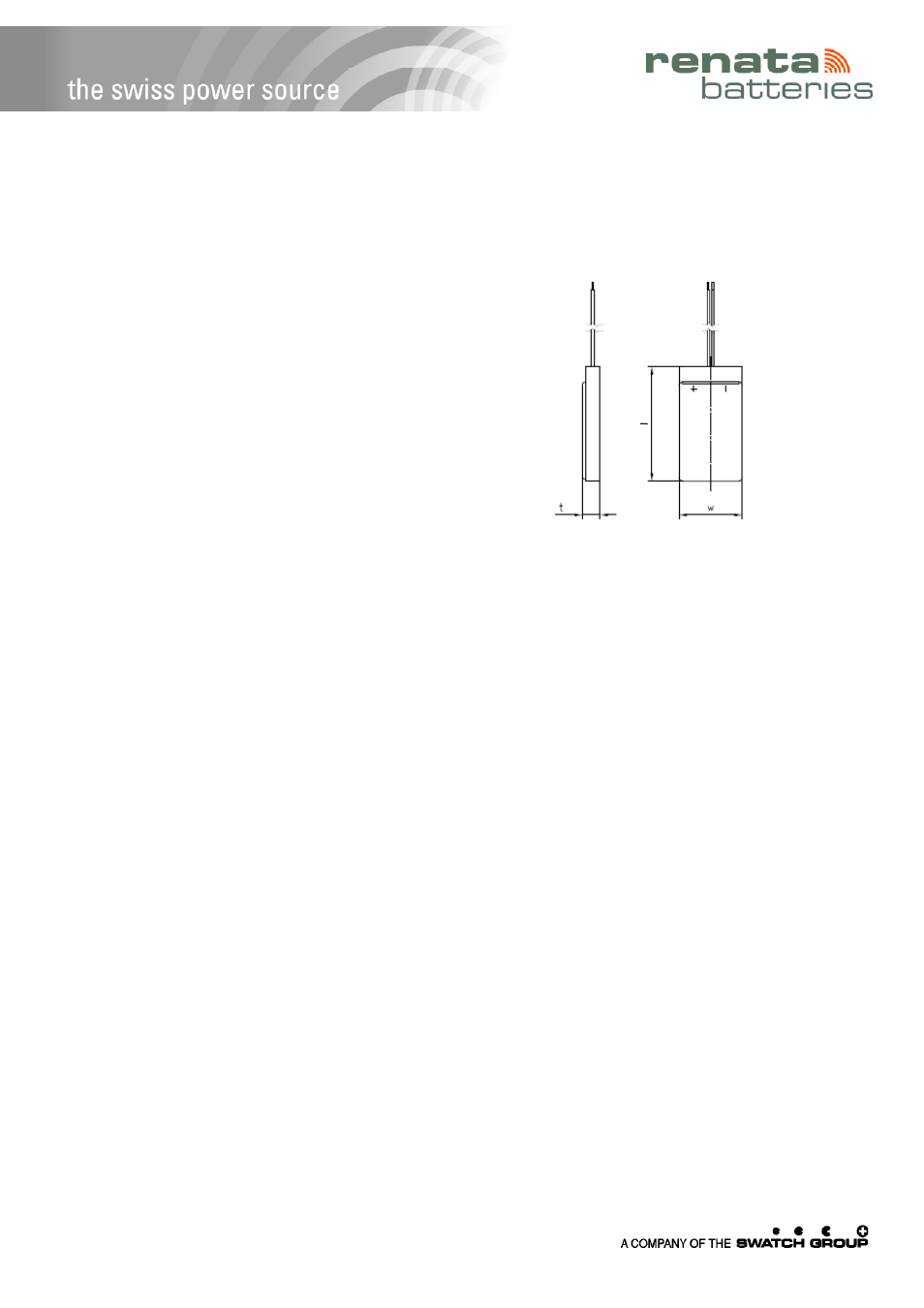

Specifications Dimensions
Renata Type
IEC Designation
Part Number
Contact:
Safety Circuit
Nominal Voltage
Nominal Capacity
Minimum Capacity
ICP621333
ICP071335
100693
Wire AWG 30
Yes
3.7 V
240 mAh
230 mAh
(0.2C cut off 3.0 V at
20°C)
Internal Impedance
Thickness ( t )
Lenghth ( l
Width ( w )
Weight
Charging Characteristic
Voltage
Current Normal
Max. Charging Current
Temperature at Charging
Discharge Characteristic
Cut off Voltage
Max Discharge Current
Temperature during Discharge
Cycle Life at Room Temperature
Storage Temperature
< 410 mΩ / 50% SOC
Max 6.7 mm
Max 13.0 mm
Max 35.0 mm
~ 5.5 g
CC/CV – Constant Current / Constant Voltage
4.2 V CV
0.5 C CC – 120 mA
1.0 C CC – 240 mA
0 °C …. 45 °C
3.0 V
2.0 C – 480 mA ( for non continues discharge )
1.0 C – 240 mA ( for continues discharge )
-20 °C … 60 °C
> 80% of minimum capacity after 500 cycles ( 0.5 C
charge, 0.5 C discharge )
-20 °C … 45 °C
( 0 °C … 30 °C recommended in case of storage for
more than 3 months)
