Renata SA Battery Holders - Manual

Surface Mounting Technology (SMT)
Battery Holders
24
www.renata.com
Horizontal mounting
Features
• Easy and fast replacement of the battery
• Designed for automatic pick&place mounting
• Safe retention of coin cell
• Automated battery mounting possible
• Clear separation of connections
• Protection against short-circuits
• Protection against inverse polarity (polarized)
• Protection against leak currents
• Robust design
• Suitable for reflow-soldering Specifications
• Holder material: heat-resistant, glass fibre
filled LCP
• Flammability rating UL 94 V-0
• Battery contacts: spring stainless steel AISI 301,
nickel-plated throughout. Solder area tin-plated
throughout, min. thickness 5 µm.
• Contact resistance between contacts and the
cell is less than 100 m
⏲ (measured through
AC 1kHz; depending on the case material of
the cell).
• UL recognition, file E218732
• Operating temperature range: –40/+100°C
Model For use with Dimensions (mm) Weight Part.No.*
Renata cell A B C D E F (g)
SMTU357-LF 357 (SR44W) 23.3 19.9 11.6 12.0 7.55 20.7 0.85 701132
SMTU1220-LF CR1220 23.7 20.3 12.5 12.7 4.8 21.1 0.80 701114
SMTU1225-LF CR1225 23.7 20.3 12.5 12.7 4.8 21.1 0.70 701115
SMTU1632-LF CR1632 27.7 24.3 16.0 14.5 5.4 25.1 0.80 701130
SMTU2032-LF CR2032 32.0 28.5 20.0 16.1 5.4 29.4 0.95 701116
SMTU2430-LF CR2430 36.4 33.0 24.5 16.1 4.9 33.8 1.05 701117
SMTU2450N-LF CR2450N 1) 36.4 33.0 24.5 16.1 7.5 33.8 1.45 701118
SMTU2477N-LF CR2477N 36.4 33.0 24.5 16.1 10.3 33.8 1.65 701119
SM2X2016-LF CR2016 32.0 28.5 20.0 16.1 5.4 29.4 0.95 701113

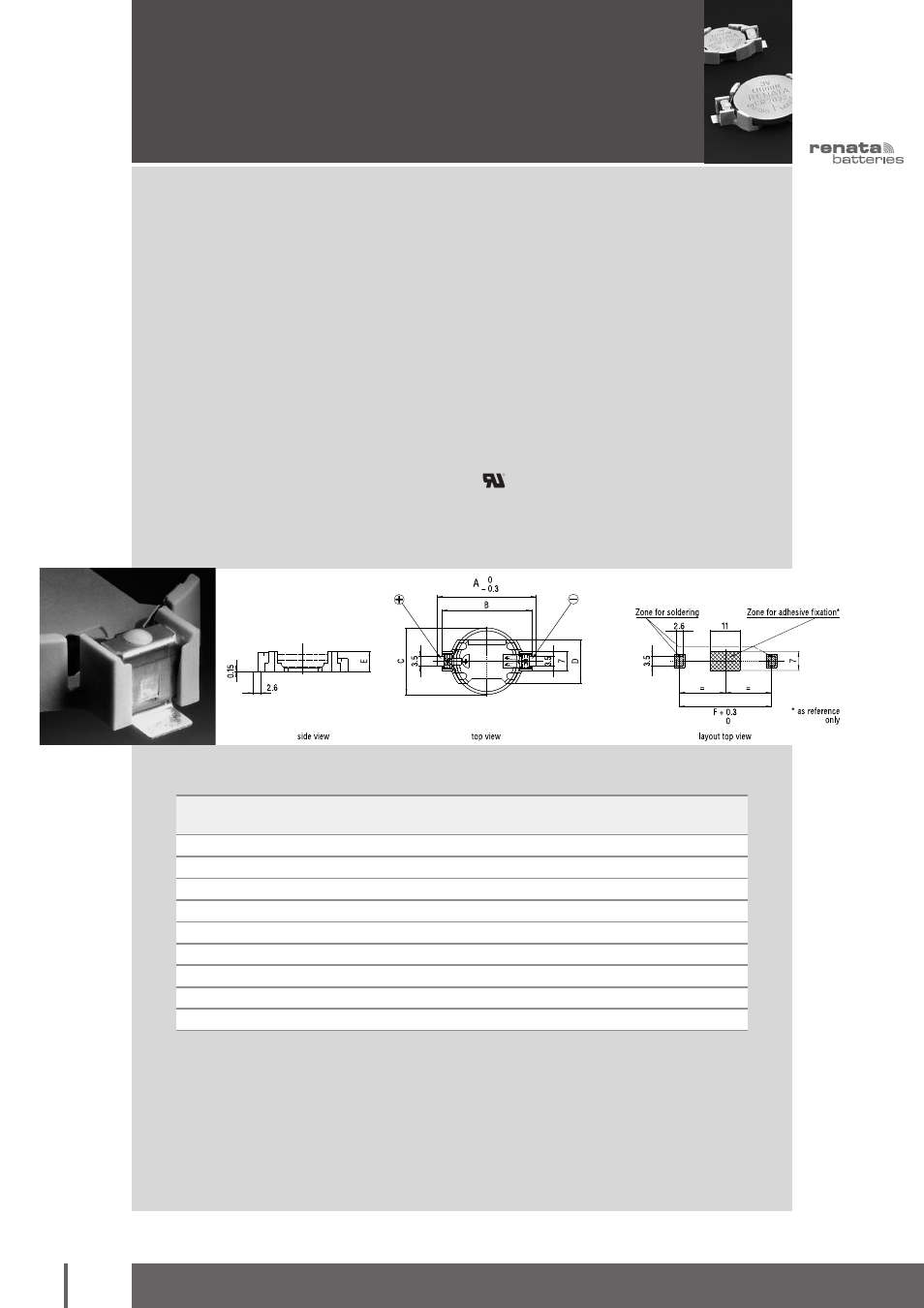

Dimensions
*Packaging: Industrial Bulk (IB-Trays)
1) Not suitable for
CR2450HT
