Renata SA Coin Cells with Tabs User Manual
Coin cells with tabs, Two pins horizontal mounting

17
the
swiss
power source
16

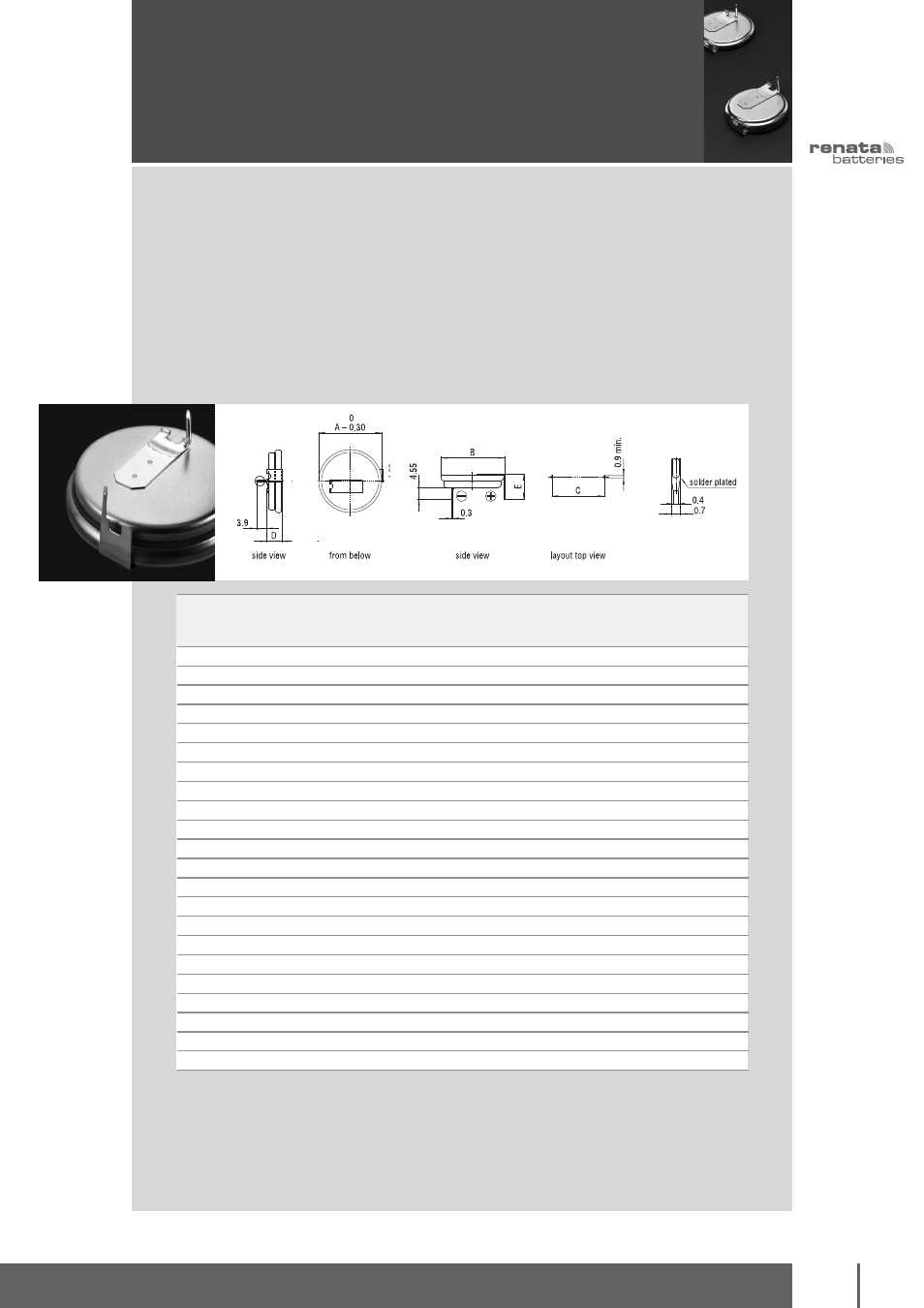

Two pins horizontal mounting
Coin Cells with Tabs
Catalogue of two-pins standard tabbed coin cells
for horizontal mounting on PCBs.
Features
• Excellent solderability thanks to solder-plated
areas
• Suitable for wave-soldering
Specifications
• Solder contacts stainless steel AISI 301,
thickness 0.15 mm
• Tin-plated solder area lead free (>99.9% Sn)
plated throughout, thick ness min. 2.5 µm.
Solderability according to MIL-STD 883C,
method 2003.3
Model
Nominal
Max. Dimensions (mm)
Weight
Part.No.*
Capacity
(mAh)
A
B
C
D
E
(g)
CR1216MFR FH
30
12.50
12.70
11.00
2.40
6.30
0.9
702601
CR1220MFR FH
40
12.50
12.70
11.00
2.80
6.70
1.0
702604
CR1225FH-LF
48
12.50
12.70
11.00
3.30
7.20
1.1
701065
CR1616FH-LF
50
16.00
16.20
12.70
2.40
6.30
1.3
701382
CR1620FH-LF
68
16.00
16.20
12.70
2.80
6.70
1.4
701067
CR1632FH-LF
125
16.00
16.20
11.00
3.90
7.80
2.0
701069
CR1632FH1-LF
125
16.00
16.20
15.20
3.90
7.80
2.0
701070
CR2016MFR FH
90
20.00
20.20
15.20
2.40
6.30
1.9
701591
CR2016MFR FH1
90
20.00
20.35
20.40
2.40
6.30
1.9
701593
CR2025MFR FH
165
20.00
20.20
15.20
3.30
7.20
2.7
701595
CR2025MFR FH1
165
20.00
20.20
20.40
3.30
7.20
2.7
701596
CR2032MFR FH
225
20.00
20.20
15.20
3.90
7.80
3.0
701599
CR2032MFR FH0
225
20.00
20.20
10.35
3.90
7.80
3.0
701600
CR2032MFR FH1
225
20.00
20.20
20.40
3.90
7.80
3.0
701601
CR2032MFR FH2
225
20.00
20.20
22.50
3.90
7.80
3.0
701603
CR2325FH-LF
190
23.00
23.20
20.40
3.30
7.20
3.2
701085
CR2430MFR FH
300
24.50
24.70
20.40
3.90
7.80
4.3
702522
CR2430MFR FH1
300
24.50
24.70
15.20
3.90
7.80
4.3
702521
CR2430FH-LF
285
24.50
24.70
20.40
3.90
7.80
4.3
701089
CR2430FH1-LF
285
24.50
24.70
15.20
3.90
7.80
4.3
701090
CR2450NFH-LF
540
24.50
24.70
20.40
5.80
9.70
6.1
701095
CR2477NFH-LF
950
24.50
24.70
20.40
8.50
12.40
8.4
701100
*Packaging: Industrial Bulk (IB-Trays)
